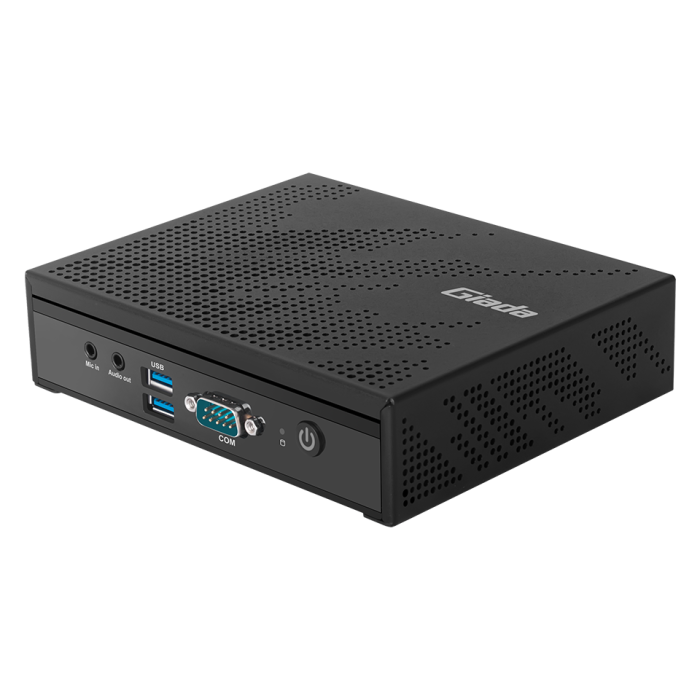

VM27 Fanless Signage Player with Intel Celeron N6210

SKU: VM27-621042E6G-GIA

Ultra-compact Elkhart Lake Fanless Player with DP, HDMI, 2 Channel LPDDR4, Full-size mPCIe and M.2

Key Features:

  • 1 x DP, 1 x HDMI, Supporting 4K Display
  • 2 Channel LPDDR4-2666MHz Memory, 4GB / 8GB Optional
  • 1 x Full-size Mini-PCIe for mSATA
  • 1 x M-key M.2 (2242/2280) for WiFi / BT
  • Windows 10 (64bit)/Windows 11 (64bit)/Linux Ubuntu (64bit)/ChromeOS Flex

Description

This fanless media player is powered by an Intel Celeron N6210/N6415 processor and allows for dual digital output through a DisplayPort (Max.4096 x 2160 @60Hz) and HDMI (Max.4096 x 2160 @60Hz). Possessing dual-channel LPDDR4 memory (4GB onboard), the VM27 allows for rich visuals at an entry-level cost.

Key Features:

  • 1 x DP, 1 x HDMI, Supporting 4K Display
  • 2 Channel LPDDR4-2666MHz Memory, 4GB / 8GB Optional
  • 1 x Full-size Mini-PCIe for mSATA
  • 1 x M-key M.2 (2242/2280) for WiFi / BT

Download

More Information

Brand Giada Technology Inc.
Specifications

Processor

CPU

Intel® Celeron® N6210 processor

Intel® Pentium® N6415 processor

Frequency

2.60 GHz/3.00 GHz

Chipset

SoC

Processing Units

2 Cores/4 Cores

TDP

6.5 W

Memory

Size

4 GB (Optional: 8 GB)

Type

Onboard DDR4-2666 MHz

Storage

Socket1

1 x Full-size Mini-PCIe for MSATA

Onboard

64 GB, Onboard eMMC5.1 (Optional: 32 GB)

Display

GPU

Intel® UHD Graphics

Graphic Engine

DirectX 12.1, OpenGL 3.0, OpenCL 1.1, Intel® Quick Sync Video

Display Interface

1 x DP (Max.4096 x 2160 @60 Hz), 1 x HDMI (Max.4096 x 2160 @60 Hz)

Network

Network controller

1 x Realtek RTL 8111H Gigabit Ethernet

Ethernet interface

1 x RJ45

Wi-Fi/BT

1 x E-Key M.2 (2230) for Wi-Fi/BT Support Wi-Fi 5, Wi-Fi 6

Mobile network

NA

I/O interface

USB

4 x USB3.2 Gen2 (10 Gbps)

Serial port

1 x RS232

Audio

1 x MIC-IN, 1 x AUDIO-OUT

Button

1 x Power on, 1 x CLR-CMOS

Antenna

2 x Connector for Wi-Fi/BT

System

TPM

FTPM

Watchdog Timer

Yes

Auto Power On

Yes

RTC

Set up independently every day

Power Requirement

DC-IN, 19 V/2.37 A

Dimensions

154mm x 125.5 mm x 40mm (6.06” x 4.94” x 1.57”)

Construction

Metal, Black

Fanless

Yes

Operating system

Windows 10 (64bit) /Windows 11 (64bit) /Linux Ubuntu (64bit) /ChromeOS Flex

Operating temperature

0°C ~45°C (32°F~113°F) @0.7m/s Air Flow

Humidity

95% @ 45°C (non-condensing)

Certifications

CE, FCC Class B

Ordering Information

SKU: VM27-621042E6G-GIA
CPU: Intel® Celeron® N6210
RAM: 4 GB, Onboard LPDDR4-2666 MHz
Storage: 64 GB, eMMC5.1
