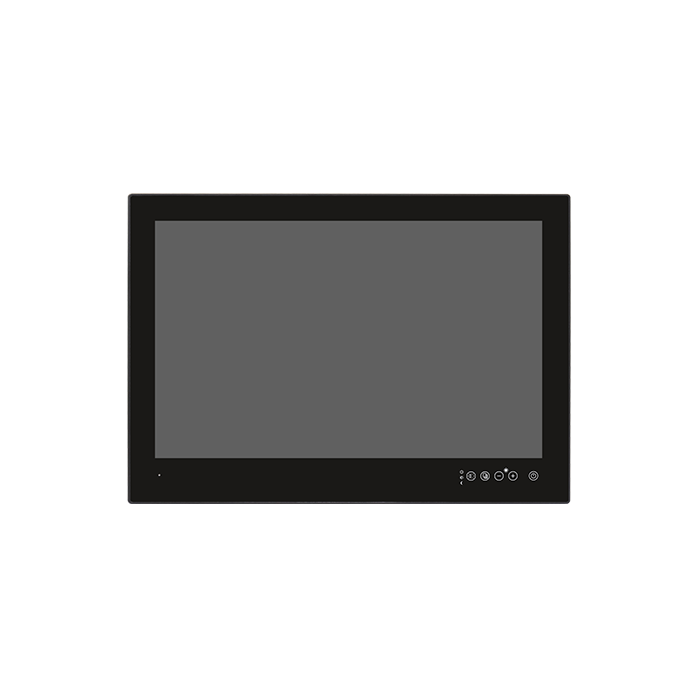

ViKING-924BP 24” i3/i5 Marine Panel PC
For rapidly changing climates and extreme ocean conditions
Key Features:
- 24" Marine Panel PC
- 8th Gen. Intel Core i3/i5 Processors
- 1 x 260pin SO-DIMM, up to 32G DDR4 2400MHz
- True Flat Bezel Design
- IP66 Front Panel
- Aluminum Enclosure (with Anti-Corrosion Coating)
- DC 24V Power Input with Isolated
- IEC 60945 Marine Certification
At sea, vessels encounter severe climates, environments, and conditions, including humidity, water exposure, extreme temperature fluctuations, and intense shock and vibration. The APLEX ViKING series is a fanless marine panel PC with a true flat bezel design, boasting marine certifications and a range of features. Designed to withstand harsh environments, it safeguards equipment from damage and significantly reduces the risk of malfunctions.

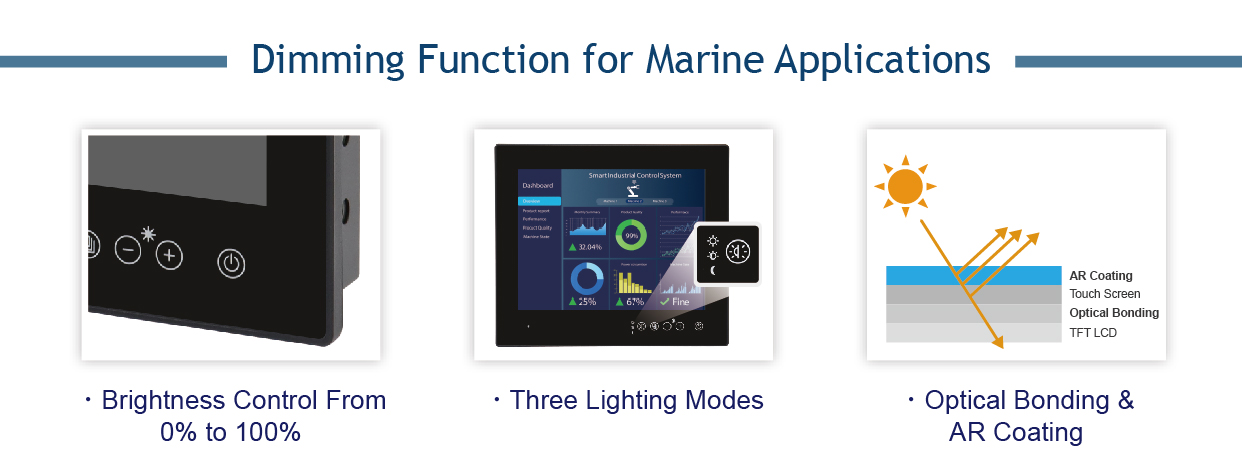

In the vast expanse of the ocean, lighting conditions undergo substantial changes between day and night, making lighting control vital for vessel facilities. The ViKING series offers support for brightness adjustment from 0% to 100%, along with AR coating, optical bonding, and three lighting modes tailored for daytime, dusk, and nighttime, ensuring optimal readability of information at all times.
Despite facing harsh environments, ViKING proves its ruggedness and durability by withstanding challenges. Operating within a wide temperature range of -20 to 60℃, it boasts anti-corrosion features, having passed the salt spray test, and is certified as IP66 front bezel dustproof/waterproof, safeguarding against salt corrosion, water, and moisture damage.
Powered by an 8th Gen. Intel Core i3/i5 processor, the ViKING delivers high computing performance, enabling efficient control of facilities, rapid data collection, and accurate information dissemination. Available in 12.1”, 19”, and 24” TFT-LCD variants with projected capacitive touch and multi-touch functionality, the ViKING features an isolated I/O design, offering 1 x 260pin SO-DIMM DDR4 up to 32GB, 4 x USB 3.0, 2 x COM, and 1 x DP for seamless communication with other devices. Additionally, it supports expandability through an expansion card and OSD keypad, ensuring quick and user-friendly operation, while the storage unit can be easily accessed for efficient exchange.
With all the necessary features for marine facilities, ViKING ensures stable and secure operations for vital functions such as navigation, surveillance, monitoring, data collection, transmission, and ship automation. Compliant with the IEC 60945 maritime standard, it is ideal for marine applications such as control rooms and engine rooms.
| Feature | Specification |
|---|---|
| System | |
| CPU | Intel Core i3-8145UE (2C/4T, 2.2GHz, 15W TDP) Intel Core i5-8365UE (4C/8T, 1.6GHz, 15W TDP) |
| Chipset | SoC |
| Memory | 1 x 260pin SO-DIMM, up to 32G DDR4 2400MHz |
| TPM | TPM 2.0 |
| IO Ports | |
| USB | 4 x USB 3.0 type A |
| Serial/Parallel | 1 x RS-232 (COM1, 5-pin terminal block) 1 x RS-232/422/485 Selectable Default RS-485 (COM 2, 5-pin terminal block) |
| LAN | 2 x GbE RJ-45 |
| Power Connector | 1 x 2-pin Terminal Block Connector (for remote power switch) 1 x 3-pin Terminal Block Connector |
| Front Side I/O | |
| Keypad | Capacitive Touch with LED (Power, Brightness+, Brightness, Brightness Mode Swap (DAY, DUSK, NIGHT)) 1 x Buzzer V 1.1 |
| Storage | |
| Space | 1 x M.2 M-Key 2242 (option for 2280, can't use TB-528 at same time) 1 x 2.5" HDD space (option) |
| Expansion | |
| On board expansion bus | 1 x TB-528 Expansion Connector (for 19”/24” only) Option: TB-528C2I for Isolation 2 x RS-422/485 Isolation |
| Display | |
| Type | 24" TFT-LCD |
| Max. Resolution | 1920 x 1080 |
| Max. Color | 16.7M |
| Luminance (cd/m2) | 300 |
| View Angle (H/V) | 178(H)/178(V) |
| Contrast | 3000:1 |
| Backlight Lifetime | 50,000 hrs |
| Touch Screen | |
| Type | Projected Capacitive Touch |
| Interface | USB |
| Light Transmission(%) | 90% |
| Power | |
| Power Input | DC 24V with Isolated / AC Power option |
| Power Consumption | ViKING-924BPH: 70W (Max) |
| Mechanical | |
| Construction | Black/ Aluminum Bezel and Aluminum Housing (Anti-Corrosion Coating) |
| Mounting | Panel Mount/ VESA Mount |
| Dimensions | 609 x 400 x 76.3 mm |
| Net Weight | 7.8 kg |
| Environmental | |
| Operating Temperature | 0~50°C (WT1: -20~60°C optional) |
| Storage Temperature | -30~70°C |
| Humidity | 10 to 90% @ 40°C, non-condensing |
| IP Rating | Front Panel IP66 |
