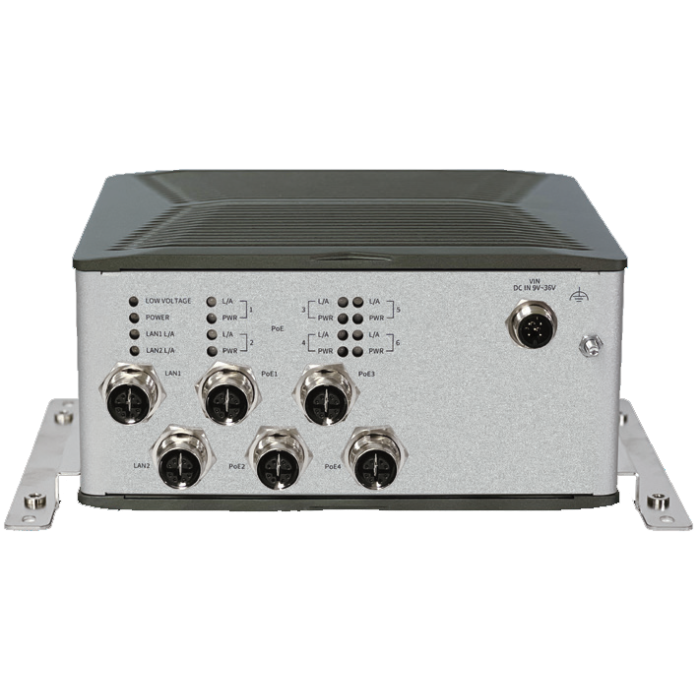

VES31-4SR/8SR 4/8 POE + 2 GbE Switch for Rail

In stock
SKU
VES31-4SR/8SR
Brand: Nexcom
  • 4/8 x IEEE 802.3af/at-compliant Gigabit Ethernet ports, 120W
  • 4/8 PoE+ standard+2 x Gigabit Ethernet ports with M12 X-coded connector
  • Low battery voltage protection
  • CE/FCC/UKCA/EN50155 class OT4 conformity
  • Wide power input range 9~36VDC
  • Jumbo frame support (up to 9216 Bytes)
  • Ignition power on/off support
  • Power on/off delay time setting
Enquire Now
Enquire about this product:

The fanless VES 31-4SR/VES 31-8SR unmanaged mobile PoE switch is ideal for telematics applications in harsh environments. It has 6/10 Gigabit Fast Ethernet ports, including 4/8 IEEE 802.3af/at compliance PoE+ ports, for smoothly and quickly transferring large amounts of video streaming, voice, and critical data across an Ethernet network.

For trains with a 24VDC power system, the mobile PoE switches support a wide voltage input range of 9VDC to 36VDC. Smart power management is provided by VES 31-4SR/VES 31-8SR, which includes low battery voltage protection, a power-on and power-off delay timer, and auto ignition power on/off functions. These distinct features can ensure reliable operation and prevent both PoE switches and trains from failing prematurely.

VES 31-4SR/VES 31-8SR are fanless dustproof enclosures that can withstand shock, vibration, and temperature extremes ranging from -40 to 70°C. The mobile PoE switches are also small in size and support din rail mounting for ease of installation with PD devices like IP cameras and Wi-Fi access points.

Key Features:

  • 4/8 x IEEE 802.3af/at-compliant Gigabit Ethernet ports, 120W
  • 4/8 PoE+ standard+2 x Gigabit Ethernet ports with M12 X-coded connector
  • Low battery voltage protection
  • CE/FCC/UKCA/EN50155 class OT4 conformity
  • Wide power input range 9~36VDC
  • Jumbo frame support (up to 9216 Bytes)
  • Ignition power on/off support
    Power on/off delay time setting
Architecture
  • Switch architecture. Highly integrated, unmanaged-smart gigabit, store and forward switch
  • 2K entry MAC address table with 4-way hash algorism
Power over Ethernet
  • PoE standard IEEE 802.3af/at Power over Ethernet/PSE
  • PoE power supply type end-span
  • PoE power output per port 54V DC, 550mA. max. 30 watts
Network Connector
  • 4/8-port M12 X-coded for 10/100/1000 base-T. PoE IEEE 802.3af/at compliance, a total of 120W
  • 2-port M12 X-coded for 10/100/1000 base-T
Standard Compliance
  • IEEE 802.3 for 10BaseT Ethernet
  • IEEE 802.3u for 100BaseT(X) Fast Ethernet
  • IEEE 802.3ab for 1000BaseT(X) Gigabit Ethernet
  • IEEE 802.3x for flow control
  • IEEE 802.3af/at Power Over Ethernet
I/O Interface
  • Power: 9~36VDC input with ignition
  • Ethernet
    • 4/8 x M12 X-coded 10/100/1000 Mbps PoE port, 802.3af/at
      compliance
    • 2 x M12 X-coded 10/100/1000 Mbps
  •  LED
    • 1 x power indicator
    • (For PoE) 4/8 x PoE indicator + 4/8 x Link/Active indicator
    • (For LAN) 2 x Active/Link indicator
    • 1 x low voltage protection indicator
Power Management
  • Selectable boot-up & shut-down voltage for low power protection by DIP switch
  • Power on/off delay time setting by DIP switch
Dimensions
  • 211 x 89 x 140 mm (83"x35"x55.1") with wall mount bracket
  • Weight: 1.3kg
  • Support Horizontal Mounting, DIN- Rail Mounting (option)
Environment
  • Storage temperatures: -40°C to 85°C
  • Relative humidity: 10% to 90% (non-condensing)
  • Vibration (random): 2g@5~500 Hz
  • Vibration:
    • Operating: MIL-STD-810H, Method 514.8C Procedure 1, Category 4, common carrier US highway truck vibration exposure
    • Storage: MIL-STD-810H, Method 514.8E Procedure 1, Category 24
  • Shock:
    • Operating: MIL-STD-810H, Method 516.8 Procedure I, trucks and semitrailers=40g
    • Non-Operating: MIL-STD-810H, Method 516.8 Procedure V, crash
      hazard shock test=75g
Standards/Certifications
  • CE approval
  • FCC Class A
  • UKCA
  • EN 50155, class OT4 (-40~70°C), 85°C for 10 minutes with air flow
