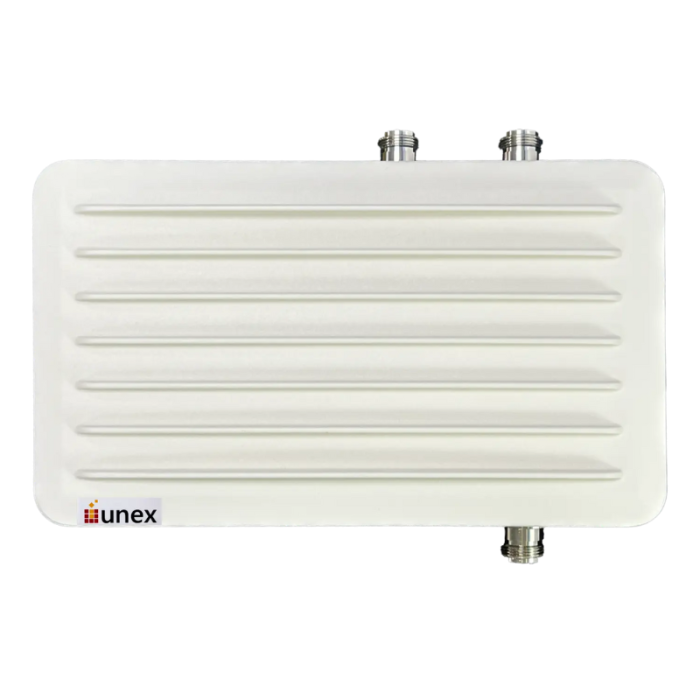

V2X IP67 Roadside Unit

SKU: RSU-352ECxx


Roadside Unit. All traffic into one.

Key Features:

  • Complete V2X system with CRATON2/PLUTON2 chipsets, GNSS, eHSM, 256MB DDR3 RAM, and 512MB NAND
  • Includes user-friendly V2Xcast® software with embedded V2X stacks
  • Provides consistent V2Xcast® APIs for app development (Tx/Rx, PoTi, J2735/ITS-G5)
  • Sample apps: Event Detector, Traffic Signal Detector, RTK for GNSS accuracy
  • Secure V2X communication with SCMS/CCMS, eHSM-based key management
  • Rugged IP67 aluminum enclosure with -40°C~+85°C range, PoE surge protection, and GORE® Vent
  • Software-defined RSU supports DSRC-V2X or C-V2X via firmware update
  • Fixed-cost licensing model, no ongoing fees or royalties
Datasheet

Description

RSU-352 is the most advanced V2X roadside unit featuring a global V2X solution; the hardware supports either C-V2X or DSRC-V2X communication standards with appropriate V2X stack embedded, reducing the cost and complexity for cooperative intelligent transportation systems (C-ITS) deployments.

The rugged waterproof IP67 aluminum enclosure protects against water and dust ingress. A GORE® vent balances the air pressure to increase the RSU service life. Additionally, surge protectors are affixed to both the antenna and PoE ports, increasing the level of protection.

With embedded ITS-G5 or IEEE 1609 V2X stack for either DSRC-V2X or C-V2X (PC5), users can directly use the RSU for secondary software development, without the hassle of handling the V2X protocol details from scratch.

Download

Datasheet

More Information

Brand Unex
Specifications



Category Details
Chipset Autotalks® CRATON2 V2X communication processor
Autotalks® PLUTON2 V2X RF Transceiver
Embedded Hardware Secure Module (eHSM)
Dedicated ARM Cortex-M0 CPU
GNSS module
Operation System Linux Yocto
Antenna Detection/Diagnose Supported
System Memory 512MB NAND, 256MB DDR3
Preloaded Firmware RSU-352EC: V2Xcast® ETSI C-ITS stack including LTE-V2X (PC5), CAM/DENM, GN/BTP, Security, PoTi, *ETSI C-ITS standard over LTE-V2X is still draft only.
RSU-352ED: V2Xcast® ITS-G5 stack including IEEE802.11p, Facility Message, GN/BTP, DCC, Security, PoTi, C2C-BSP
RSU-352UC: V2Xcast® C-V2X stack including 1609.2, 1609.3, IEEE1609.2.1, SAE J2735, PoTi
RSU-352UD: V2Xcast® IEEE1609/SAE J2735 stack for 802.11p WAVE including 1609.2, 1609.3, 1609.4, IEEE1609.2.1, SAE J2735, PoTi
Development Tool V2Xcast® SDK, including Service, Tx/Rx, PoTi, J2735 or ITS-G5 compliant Message/Service and application example codes
Hardware Security Dedicated ROM containing certified secure V2X signing firmware
Secure encrypted off-chip storage of private keys
Private material is inaccessible outside HSM
Capable of >110 signatures / second, with <9ms signing latency for ECDSA NIST P256 or ECDSA Brainpool P256R1
Line-rate ECDSA verification engine (>2500 ECDSA NIST P256 verifications / second)
Tamper detection*
(* Support by project)
V2X Supported frequency band:
C-V2X: 5.895 ~ 5.925 GHz
DSRC-V2X : 5.850 ~ 5.925GHz
DSRC-V2X radio mode: 802.11p
C-V2X radio mode: 3GPP LTE-V2X Rel.14/15 PC5 sidelink
RF transmit power: max. +20dBm on antenna port, Class C RF spectrum mask compliant with margins
RF sensitivity: typ. < -92dBm
Remarks: For legacy DSRC WAVE applications, (1) channel switch in 1609.4, (2) WSA broadcast, and (3) dual channel are not supported.
GNSS Update rate: max. 10Hz
Sensitivity:
Acquisition: -146dBm
Navigation: -158dBm
Tracking: -162dBm
NMEA Standard: NMEA 0183
Accuracy: 1.5m (CEP50 with SBAS)
supports GPS/GLONASS constellations
*. SBAS like WAAS (US), is also supported.
I/O Interface 3 color status LED for start-up, operational, FW upgrade, fault
One 802.3af power over Ethernet port: supports both mode A and mode B PSE (power sourcing equipment)
Two V2X type-N antenna connectors, surge protected and built-in antenna detection function.
One GNSS type-N antenna connector, surge protected and built-in antenna detection function.
One GORE® Vent
Antenna Two type-N V2X 7.6dBi omni-directional detachable antennas, 5.9GHz
One type-N GNSS active detachable antenna
Operation Voltage IEEE 802.3af (DC 44-57V, typical 48V)
Power Consumption 802.3af PoE PSE: typical 0.06A/3.26W at 25°C
802.3af PoE PSE: typical 0.07A/3.80W at 85°C
ESD Protection IEC/EN 61000-4-2 level 4
Surge Protection IEC/EN 61000-4-5 level 4 (1.2/50 μs and 10/700 μs)
RF Regulation CE (Q1-2025), FCC Class B (after FCC validation)
Operation Temperature Range ambient: -40°C ~ +85°C
Operating Humidity 10% ~ 95%, non-condensing
Storage Humidity max. 95%, non-condensing
Housing IP67 aluminium enclosure
Product Dimension and Weight 220.5mm (L) x 127.5mm(W) x 72.3mm (H), 2.7 kg

Ordering Information

RSU-352EC
C-V2X roadside unit, V2Xcast® ETSI C-ITS stack and SDK

RSU-352ED
DSRC-V2X roadside unit, V2Xcast® ITS-G5 stack and SDK

RSU-352UC
C-V2X roadside unit, V2Xcast® IEEE 1609/SAE J2735 stack and SDK

RSU-352UD
DSRC-V2X roadside unit, V2Xcast® IEEE 1609/SAE J2735 stack and SDK
