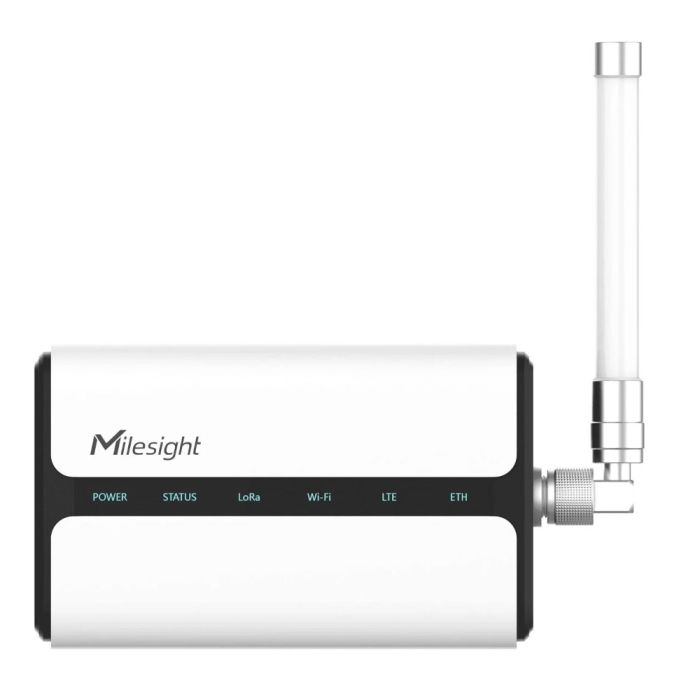

UG65 LoRaWan Indoor Gateway - optional LTE
View larger image
UG65 LoRaWan Indoor Gateway - optional LTE
SKU:
UG65-915M-EA or UG65-L00AU-915M-EA
LoRaWAN® UG65 Indoor Gateway IP65 Quad-Core SemTech RJ45
Key Features:
IP65 Rating NXP Quad-Core Processor Semtech SX1302 LoRa Chip Multiple Backhaul Connectivities Embedded Network Server Compatible with Multiple Network Servers Global LoRaWAN® Frequency Plans
Description
The UG65 is a sturdy indoor LoRaWAN® gateway that offers 8 channels. It utilizes the SX1302 LoRa chip and a powerful quad-core CPU, enabling it to connect with over 2000 nodes. With a line of sight range of up to 15 km and coverage of approximately 2 km in urban environments, the UG65 is well-suited for various indoor applications such as smart offices and buildings. It provides multiple backup options for back-haul connections including Ethernet, Wi-Fi, and cellular. Additionally, it comes equipped with integrated mainstream network servers (such as TTI and ChirpStack) and features a built-in network server and Milesight IoT Cloud, simplifying deployment.
Key Features:
IP65 Rating NXP Quad-Core Processor Semtech SX1302 LoRa Chip Multiple Backhaul Connectivities Embedded Network Server Compatible with Multiple Network Servers Global LoRaWAN® Frequency Plans
More Information
Specifications
Specifications
CPU
Quad-core 1.5 GHz, 64-bit ARM Cortex-A53
Memory
512 MB DDR4 RAM
Flash
8 GB eMMC
Antenna
Fully Integrated and Internal Antenna (Optional: 1 × 50 Ω N-Female External Connector)
Channel
8
Frequency Band
CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923
Sensitivity
-140dBm Sensitivity @292bps
Output Power
27dBm Max
Protocol
V1.0 Class A/Class C and V1.0.2 Class A/Class C
Port
1 × RJ45 (PoE PD support)
Physical Layer
10/100/1000 Base-T (IEEE 802.3)
Data Rate
Rate 10/100/1000 Mbps (Auto-Sensing)
Interface
Auto MDI/MDIX
Mode
Full or Half Duplex (Auto-Sensing)
Antenna
Fully Integrated and Internal Antenna
Standards
IEEE 802.11 b/g/n
Tx Power
802.11b: 18 dBm +/-2.0 dBm (11 Mbps)[email protected] GHz: 14 dBm +/-2.0 dBm (MCS0_HT20)[email protected] GHz: 14 dBm +/-2.0 dBm (MCS7_HT20)[email protected] GHz: 13 dBm +/-2.0 dBm (MCS0_HT40)[email protected] GHz: 13 dBm +/-2.0 dBm (MCS7_HT40)
Antenna
Fully Integrated and Internal Antenna
SIM Slot
1
Network Protocols
PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, DDNS,HTTP, HTTPS, DNS, ARP, SNTP, Telnet, SSH, MQTT, etc.
VPN Tunnel
OpenVPN/IPsec/PPTP/L2TP/GRE/DMVPN
Access Authentication
CHAP/PAP/MS-CHAP/MS-CHAPV2
Firewall
ACL/DMZ/Port Mapping/MAC Binding/URL Filter
Management
Web, CLI, SMS, On-demand dial up, DeviceHub, Milesight IoT Cloud
Reliability
WAN Failover
Power Supply
1. DC Jack Connector for 9-24 VDC power supply
Consumption
≤ 4.2W
Ingress Protection
Protection IP65
Dimensions
180 x 110 x 56.5 mm
Mounting
Desktop, Wall or Pole Mounting
Reset Button
1 × RST
Console Port
1 × Type-C Port
LED Indicators
1 × POWER, 1 × STATUS, 1 × LoRa, 1 × Wi-Fi, 1 × LTE, 1 × ETH
Built-in
Watchdog, RTC, Timer
Certification
CE, FCC
Ingress Protection
Protection IP65
Dimensions
180 x 110 x 56.5 mm
Mounting
Desktop, Wall or Pole Mounting
Operating Temperature
-40°C to +70°C (-40℉ to +158℉)
Storage Temperature
-40°C to +85°C (-40℉ to +185℉)
Ethernet Isolation
1.5 kV RMS
Relative Humidity
0% to 95% (non-condensing) at 25°C/77℉
