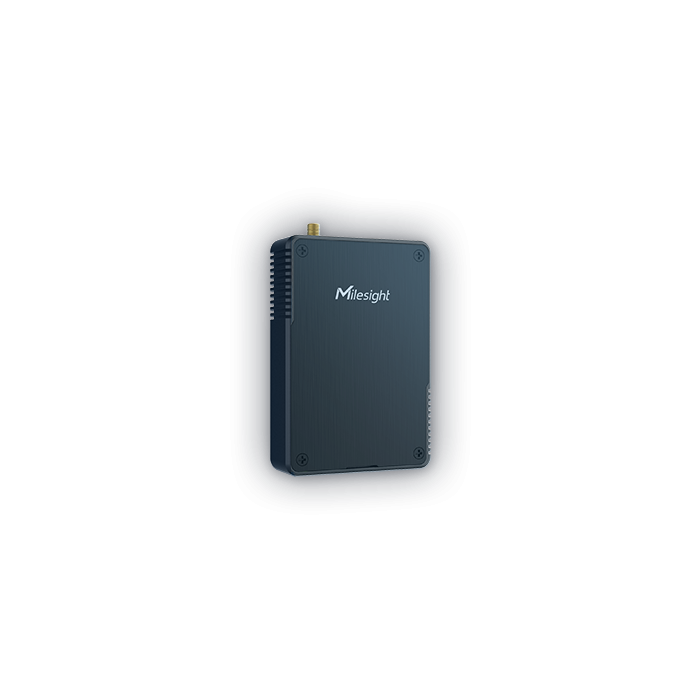

UG56 Industrial LoRaWAN Gateway
Robust 8-channel indoor LoRaWAN gateway
Enquire Now
Enquire about this product:
The UG56 is a powerful indoor LoRaWAN gateway with 8 channels. The UG56 offers connectivity with more than 2000 nodes thanks to the SX1302 chip and high-performance quad-core CPU. Smart buildings, smart industries, and many other indoor applications are perfectly suited for UG56, which has a line of sight up to 15 km and can cover around 2 km in an urbanised setting. The UG56 supports multiple Ethernet, Wi-Fi, and cellular back-haul backups in addition to having built-in network servers and Milesight IoT Cloud for quick deployment. It also includes integrated common network servers (such as TTI, ChirpStack, etc.).
Key Features:
- Quad-core industrial processor with big memory
- Equip with SX1302 chip, handling a higher amount of traffic with lower consumption
- 8 half-duplex channels
- Rugged metal enclosure for industrial applications
- Desktop or wall mounting
- Multi backhaul connectivity backups with Ethernet, cellular (4G/3G) and Wi-Fi
- DeviceHub and Milesight IoT Cloud provide easy and centralized management of remote devices
- Enable security communication with multiple VPNs like IPsec/OpenVPN/L2TP/PPTP/DMVPN
- Compatible with mainstream network servers like The Things Industries, ChirpStack, etc.
- Detect and analyze the noise level and provide intuitive diagram for deployment
- Built-in network server and MQTT/HTTP/HTTPS API for easy integration
- Embedded Python SDK for users' secondary development
- Fast and user-friendly programming by Node-RED development tool
| Hardware System | CPU | Quad-core 1.3 GHz, 64-bit ARM Cortex-A35 |
| Memory | 512 MB DDR3 RAM | |
| Flash | 8 GB eMMC | |
| Extendable Storage | 1 × Micro SD Slot (Internal) | |
| LoRaWAN | Antenna Connector | 1 × 50 Ω SMA Connector (Center PIN: SMA Female) |
| Channel | 8 (Half/Full-duplex) | |
| Frequency Band | CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923-1&2&3&4 | |
| Sensitivity | -140 dBm Sensitivity @292bps | |
| Output Power | 27 dBm Max | |
| Protocol | V1.0 Class A/Class B/Class C and V1.0.2 Class A/Class B/Class C | |
| LBT | Support | |
| Ethernet Interface | Port | 1 × RJ45 (PoE PD supported) |
| Physical Layer | 10/100 Base-T (IEEE 802.3) | |
| Data Rate | 10/100 Mbps (Auto-Sensing) | |
| Interface | Auto MDI/MDIX | |
| Mode | Full or Half Duplex (Auto-Sensing) | |
| Wi-Fi Interface | Antenna | Internal Antenna |
| Standards | IEEE 802.11b/g/n, 2.4 GHz | |
| Mode | AP or Client mode | |
| Security | WPA/WPA2 authentication, WEP/TKIP/AES encryption | |
| Tx Power | 802.11b: 18 dBm +/-2.0 dBm (11 Mbps) | |
| 802.11g: 15 dBm +/-2.0 dBm (6 Mbps) | ||
| 802.11g: 15 dBm +/-2.0 dBm (54 Mbps) | ||
| 802.11n@2.4 GHz: 14 dBm +/-2.0 dBm (MCS0_HT20) | ||
| 802.11n@2.4 GHz: 14 dBm +/-2.0 dBm (MCS7_HT20) | ||
| 802.11n@2.4 GHz: 13 dBm +/-2.0 dBm (MCS0_HT40) | ||
| 802.11n@2.4 GHz: 13 dBm +/-2.0 dBm (MCS7_HT40) | ||
| Cellular Interface (Optional) | Antenna | Internal Antenna |
| SIM Slot | 1 (Mini-SIM-2FF) | |
| Others | Reset Button | 1 × RST (Internal) |
| Console Port | 1 × Type-C | |
| LED Indicators | 1 × SYSTEM, 1 × LoRa | |
| Built-in | Watchdog, Timer | |
| Software | Network Protocols | PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, DDNS, HTTP, HTTPS, DNS, ARP, SNTP, Telnet, SSH, MQTT, etc. |
| VPN Tunnel | OpenVPN/IPsec/PPTP/L2TP/GRE/DMVPN | |
| Firewall | ACL/DMZ/Port Mapping/MAC Binding/URL Filter | |
| Management | Web, CLI, SMS, On-demand dial-up, DeviceHub, Milesight IoT Cloud | |
| Reliability | WAN Failover | |
| App | Python SDK, Node-RED | |
| Power Supply | Power Input | 1. 1 × 802.3af PoE Input |
| 2. 5V, 2A by Type-C Port | ||
| Physical Characteristics | Ingress Protection | IP30 |
| Housing & Color | Metal, Black | |
| Dimensions | 110 x 75 x 24 mm (4.33 x 2.95 x 0.94 in) | |
| Installation | Desktop, Wall Mounting | |
| Environmental | Operating Temperature | -20°C to +60°C (-4℉ to +140℉) |
| Storage Temperature | -40°C to +85°C (-40℉ to +185℉) | |
| Ethernet Isolation | 1.5 kV RMS | |
| Relative Humidity | 0% to 95% (non-condensing) at 25°C/77℉ |
