TS101 LoRaWAN Insertion Temperature Sensor

In stock
SKU
TS101

LoRaWAN® TS101 Insertion Temperature Sensor IP67 IK10 10-Year Battery

Key Features

  • Equipped with highly accurate and stable DS18B20 temperature sensor chip with high
    resolution
  • Adopt food-grade stainless-steel probe and shell material for efficient and safe detection
  • Store up to 1200 sets of data locally and support data retrievability and retransmission
  • IP67 and IK10 rated and phosphine corrosion-resistant for harsh environment
  • Built-in 4000 mAh replaceable battery and works for up to 10 years without replacement
  • Integrated and compact design for wireless deployment
  • Built-in NFC for easy configuration
  • Compatible with standard LoRaWAN® gateways and network servers
  • Quick and easy management with Milesight IoT Cloud solution
Enquire Now
Enquire about this product:

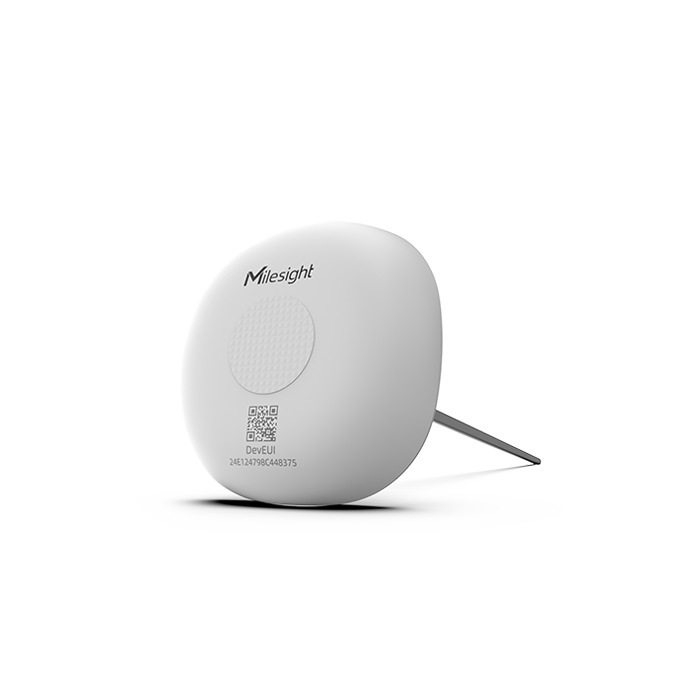

The Milesight TS101 is a comprehensive temperature sensor with a built-in transmitter. It features an advanced measuring unit that offers a wide temperature range for accurate measurements. With its IP67 and IK10 ratings, this compact and refined sensor is ideal for monitoring the internal temperature of tobacco or grain stacks. It can also be applied in other warehousing scenarios that require efficient temperature detection.

The TS101 sensor is fully compatible with Milesight LoRaWAN® gateways and mainstream LoRaWAN® network servers. Leveraging low power consumption technology, it can operate for up to 10 years using a 4,000mAh battery. By integrating with the Milesight LoRaWAN® gateway and Milesight IoT Cloud solution, users gain the ability to remotely and visually manage all the sensor data, ensuring convenient and effective monitoring.

Key Features

  • Equipped with highly accurate and stable DS18B20 temperature sensor chip with high
    resolution
  • Adopt food-grade stainless-steel probe and shell material for efficient and safe detection
  • Store up to 1200 sets of data locally and support data retrievability and retransmission
  • IP67 and IK10 rated and phosphine corrosion-resistant for harsh environment
  • Built-in 4000 mAh replaceable battery and works for up to 10 years without replacement
  • Integrated and compact design for wireless deployment
  • Built-in NFC for easy configuration
  • Compatible with standard LoRaWAN® gateways and network servers
  • Quick and easy management with Milesight IoT Cloud solution
Wireless Transmission
Protocol LoRaWAN®
Frequency CN470/IN865/RU864/EU868/US915/AU915/KR920/AS923-1&2&3&4
Tx Power 16 dBm (868 MHz)/20 dBm (915 MHz)/19 dBm (470 MHz)
Sensitivity -137 dBm @300bps
Mode OTAA/ABP Class A
Measurement
Detecting Range -30°C ~ +70°C
Accuracy ± 0.5°C
Resolution 0.1°C
Operation
Power On & Off NFC, Power Button (Internal)
Configuration NFC Configuration via Mobile App
Advanced Feature Data Storage, Data Retransmission, Data Retrievability, Abrupt Temperature Change Alarm
Physical Characteristics
Power Supply 1 × 4000 mAh ER18505 Li-SOCl2 Replaceable Battery
Battery Life* 10 Years (1 Hour Report Interval, 25°C)
Operating Temperature -30°C ~ +70°C
Relative Humidity 0 ~ 95% (Non-condensing)
Material & Color

Transceiver: ABS+PC(Food-Grade,PhosphineCorrosionresistant), White

Sensor Probe: 316 Stainless Steel (Food-Grade, Phosphine Corrosion Resistant) , Silver Grey

Ingress Protection IP67
Impact Protection IK10 (Transceiver)
Dimension

Transceiver: Ф 92 × 92 × 26 mm (Ф 3.62 × 3.62 × 1.02 in)

Sensor Probe: Ф 7 × 400 mm (Ф 0.28 × 15.75 in)

Installation Insert Installation
* Tested under laboratory conditions and for guideline purposes only.
