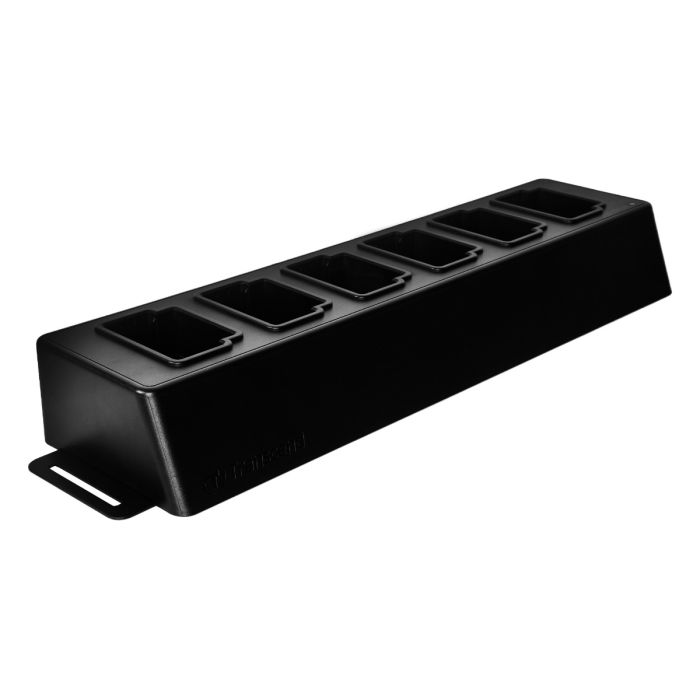

TS-DPD6C Body Camera Docking Station

SKU: TS-DPD6C

Docking Station for Transcend's DrivePro Body 40 body camera

Key Features:

  • Designed exclusively for Transcend's DrivePro Body 40 body camera
  • Provides complete camera charging and data upload solution
  • Six-port network-based docking station
  • Two Ethernet ports for scalability and fast deployment
  • LAN port for administrative setup
  • WAN port for data upload to a designated folder while charging
  • USB port for storing video recordings and snapshots to external storage devices

Description

The DPD6C docking station, designed specifically for Transcend's DrivePro Body 40 body camera, provides a comprehensive solution for charging and data upload. This six-port, network-based docking station features two Ethernet ports for scalability and rapid deployment. The LAN port is dedicated to administrative setup, while the WAN port facilitates data uploads to a designated folder during charging. Additionally, a USB port allows for storing video recordings and snapshots on external storage devices.

Download

More Information

Brand Transcend
Specifications

Appearance

Dimensions

423 mm x 105 mm x 54 mm (16.65" x 4.13" x 2.13")

Weight

980 g (34.57 oz)

Interface

USB Type

  • USB Type-C

Connection Interface

  • USB 3.2 Gen 1

Hardware

Network Port

  • WAN: 10/100/1000 Mbps Ethernet

  • LAN: 10/100 Mbps Ethernet

Operating Environment

Operating Temperature

0°C (32°F) ~ 40°C (104°F)

Storage Temperature

-20°C (-4°F) ~ 70°C (158°F)

Supported Device

  • DrivePro Body 40

Power

Power Supply (Max.)

  • 12V / 3A

Warranty

Certificate

  • CE/

  • FCC/

  • KC/

  • EAC/

  • RCM

Warranty

  • Two-year Limited Warranty

System Requirement

Operating System

  • Microsoft Windows 10 or later
