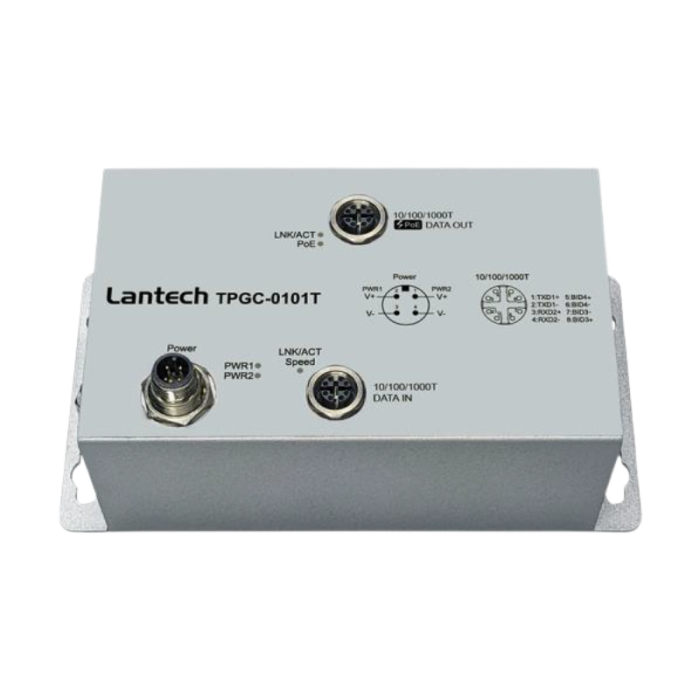

TPGC-0101T 10/100/1000T X-coded EN50155 PoE Injector
1x 10/100/1000T X coded EN50155 PoE injector up to 30W
Key Features:
- IEEE802.3at/af up to 30W PoE output
- Dual power inputs 16.8 56 V DC with galvanic isolation between input power, PoE and Ethernet
- Wide Operating Temperature from 25 °C~70°C (T3
- IP44 aluminium housing for best heat dissipation and preventing moisture ingress
- EN50155 certificate for Railway
Description
Product Overview
The ATC 3561-NA4C is a rugged edge AI computer designed for transportation, railway, and industrial environments. Powered by the NVIDIA® Jetson Orin Nano™ SOM, it delivers up to 67 TOPS of AI inference performance (8GB version in Super Mode), making it ideal for real-time applications such as ADAS, ANPR, AMR, intelligent transportation, machine learning, railway safety, and factory automation.
Key Features
- Single data input + PoE output via rugged M12 X-coded connectors
- Up to 30 W output power (802.3at)
- Dual 16.8–56 V DC input with polarity and inrush protection
- 1.5 kV galvanic isolation (power/data / PoE)
- EN50155, EN45545-2, EN61373 certified
- Wide temperature range: –25 °C to +70 °C
- Compact aluminium housing with IP44 protection
- LED status indicators for power, link/activity, PoE
Applications
- Onboard networking for cameras, WiFi APs, or switches in trains, trams, and vehicles
- Industrial Ethernet backhaul, where power to devices must be injected remotely
- Harsh environments requiring reliable, isolated DC-powered Ethernet
Dimensions Drawings
Download
More Information
| Brand | Lantech | ||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Specifications |
|
Ordering Information
TPGC-0101T-1-44-24TVI-C (P/N: 8450-221)
1x 10/100/1000T PoE injector up to 30W, dual 16.8~56VDC input ; Operating Temperature 25 °C to 70°C w/coating
