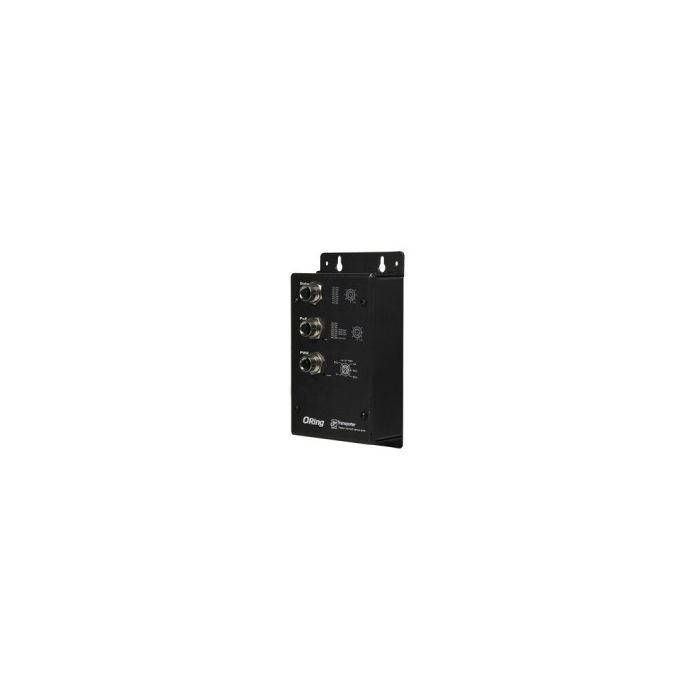

TINJ-101GT-M12 EN50155 1-port High Power PoE Injector
TINJ-101GT-M12 EN50155 1-port High Power PoE Injector
EN50155 Industrial 1-port Gigabit High Power PoE Injector, M12 connector
Description
- Supports 1x10/100/1000 Base-T(X) for power and data Output
- Fully compliant with IEEE802.3at/802.3af
- Auto protection for Over Voltage Power Input and over current output
- Supports Power Output up to 30Watts
- Supports Power Input range from 12Vdc to 57Vdc
- Ultra-rugged enclosure M12 connector for toughest industrial usages
- Wall mounting enabled
More Information
|
Specifications |
| Physical Ports |
|
|
10/100/1000 Base-T(X) with P.S.E. Ports in M12 Auto MDI/MDIX
|
1 x M12 connector (8-pin M12 A-coding) |
| 10/100/1000 Base-T(X) Port in M12 Auto MDI/MDIX |
1 x M12 connector (8-pin M12 A-coding)
|
| Operating Voltage |
|
| Input Voltage |
50 ~ 57 VDC on 4-pin M12 A-coding |
12 ~ 57 VDC on 4-pin M12 A-coding |
| Output Power |
50V / 600mA, 30 Watts max. per port |
| LED Indicator |
|
| Power Indicator |
PWR / Ready: 1 x LED
Green On: Power is on and functioning Normally. |
| PoE Indicators |
1 x LED
Blue On: PoE Device Link
Blue Blinking: Detecting PoE Device
Blue Off : None PoE Device Detected |
| Protection |
|
| Short Circuit Protection |
Present |
| Over Load Protection |
Present |
| Physical Characteristics |
|
| Enclosure |
IP-40 |
| Dimensions (W x D x H) |
88.9 (W) x 40 (D) x 178.2 (H)mm (3.5 x 1.57 x 7.0 inch) |
| Weight (g) |
385g |
446g |
| Environmental |
|
| Storage Temperature |
-40 to 80°C (-40 to 176°F) |
| Operating Temperature |
-25 to 70°C (-13 to 158°F) |
| Operating Humidity |
5% to 90% Non-condensing |
| Regulatory Approvals |
|
| EMI |
FCC Part 15, CISPR (EN55022) class A, EN50155 (EN50121-3-2, EN55011, EN50121-4) |
| EMS |
IEC61000-4-2 (ESD), IEC61000-4-3 (RS), IEC61000-4-4 (EFT), IEC61000-4-5 (Surge), IEC61000-4-6 (CS), IEC61000-4-8, IEC61000-4-11
|
| Shock |
IEC60068-2-27 |
| Free Fall |
IEC60068-2-31 |
| Vibration |
IEC60068-2-6 |
| Safety |
EN60950-1 |
| Warranty |
5 years |
|
