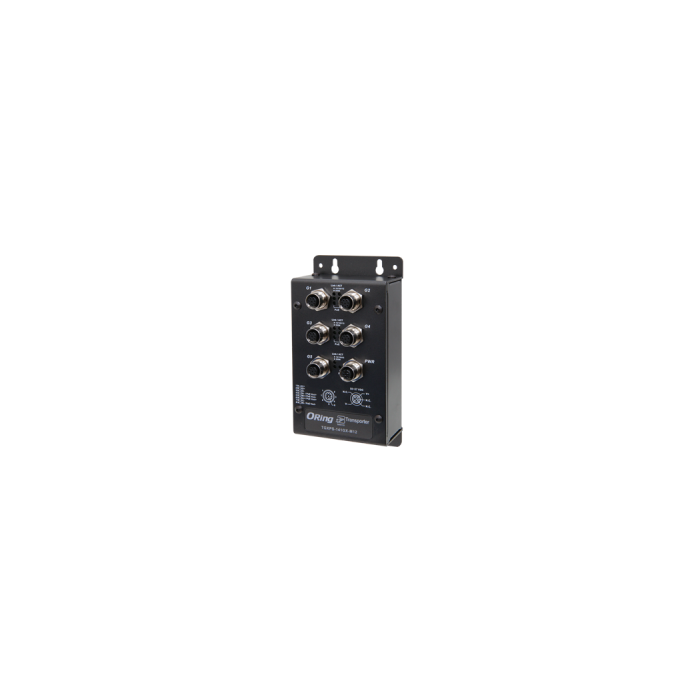

10/100/500/1000Base-T(X) with P.S.E. Ports in M12 Auto MDI/MDIX
4 x M12 female connector (8-pin M12 A-coding)
10/100/500/1000Base-T(X) Port in M12 Auto MDI/MDIX
1 x M12 female connector (8-pin M12 A-coding)
Technology
Ethernet Standards
IEEE 802.3 for 10Base-T. IEEE 802.3u for 100Base-TX IEEE 802.3ab for 1000Base-T IEEE 802.3x for Flow control IEEE 802.3at PoE specification (up to 30 Watts per port for P.S.E.)
Processing
Store-and-Forward
LED Indicators
Power indicator
Green: Power LED x 1
10/100/500/1000Base-T(X) M12 port with P.S.E. indicator
Top dual color LED for 10/100/1000Mbps Link/ACT indicator: Green LED for 1000Mbps, Amber for 10/100Mbps Middle Green for port Link/Act at 500Mbps Bottom Blue for PoE indicator
10/100/500/1000Base-T(X) M12 port indicator
Top dual color LED for 10/100/1000Mbps Link/ACT indicator: Green LED for 1000Mbps, Amber for 10/100Mbps Bottom Green for port Link/Act at 500Mbps
Power
Input Power
12 ~ 57VDC power input on M12 female connector (5-pin M12 A-coding)
72~110VDC power input on M12 female connector (5-pin M12 A-coding)
Power Consumption (Typ.)
3 Watts (power consumption of P.S.E. is not included)
6 Watts (power consumption of P.S.E. is not included)
PoE Output Power
60 Watts (12~24VDC) 120 Watts (24~57VDC)
60 Watts
Overload Current Protection
Present
Reverse Polarity Protection
Present
Physical Characteristics
Enclosure
IP-30
Dimensions (W x D x H)
88.9 x 55 x 178.2 mm
Weight (g)
643 g
771 g
Environmental
Storage Temperature
-40 to 85°C (-40 to 185°F)
Operating Temperature
-40 to 75°C (-40 to 167°F)
Operating Humidity
5% to 95% Non-condensing
Regulatory Approvals
EMI
FCC Part 15, CISPR (EN55022) class A, EN50155 (EN50121-3-2, EN55011, EN50121-4)
