TEK-1000V2 - Vehicle Mount Display 10.4 inch
TEK-1000V2 - Vehicle Mount Display 10.4 inch
Description

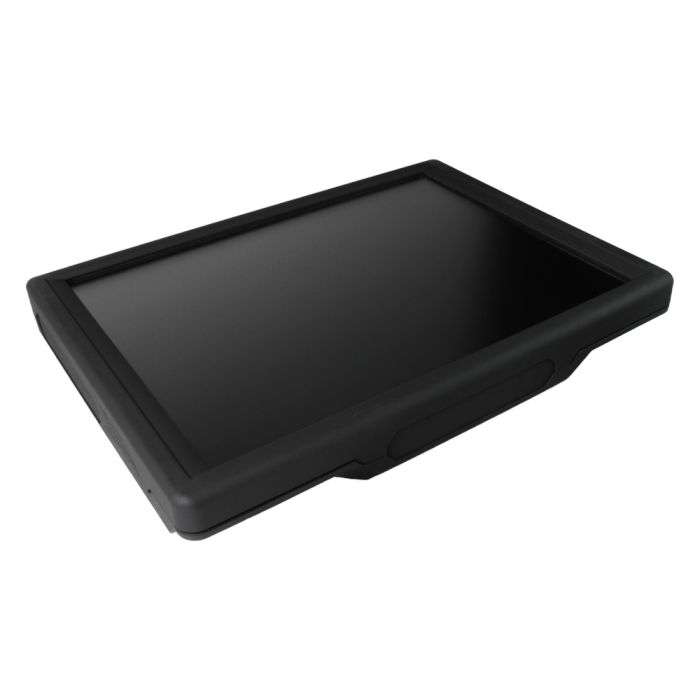

10.4” Vehicle Monitor
Features:
· High quality image with wide viewing angle,178 (H)/ 150 (V), 179 (H)/ 179 (V) optional.
· High efficiency backlight.
· Sunlight readable.
· Backlight control, suitable from night vision to outdoor daylight applications.
· IP65 chassis.
· Designed for continuous vibration environments.
· Wide input voltage range with transient protection.
· Standard VESA mount.
· Industrial grade resistive touch.
· Industrial grade PCT touch.
More Information
|
Specifications |
Size 10.4 Inches
Aspect 4:3
Inputs VGA, DVI, HDMI, 2 / 3 x Composite Video
Audio 2 x 1W
Touch Panel Resistive USB/RS232, Endurance>2M touch. PCT multi-Touch optional
Power supply 9-36VDC automotive car/truck suitable
Power consumption (N): 7W, HB:11W, SHB: 13W
Mounting Stand alone and headrest accesories optional
Warranty 12 months
Certification CE, e-mark*, EN50155*, CCC*
Specifications
Mechanical and eviromental specs
Dimensions 214 x 165.9 x 27 mm
Weight 900gr
Enclosure Aluminium chassis/rear. PVC-ABS front with anti-polish painting
Operation temperature -35ºC to 70ºC max (-20ºC to 60ºC continuous)
Storage temperature -40ºC to 85ºC
Vibrations 1G 2-500Hz
Shock 20G 11ms
Drop 10cm max
Mounting VESA 75mm mounting holes, Stand alone and headrest accesories.
Optical specifications
Brightness Normal: 400nits, HB:600nits, SHB:1200nits
Contrast 500:1
Colors 262K
Native resolution 1024x768px
Outdoor readability Meets MIL-STD-3009 (sunlight readable version XF1000V2HB-US/RS/UPS)
NVIS Optional NVIS B compliant
|
