tBOX210 Rail-grade Fanless Embedded System

Product Overview

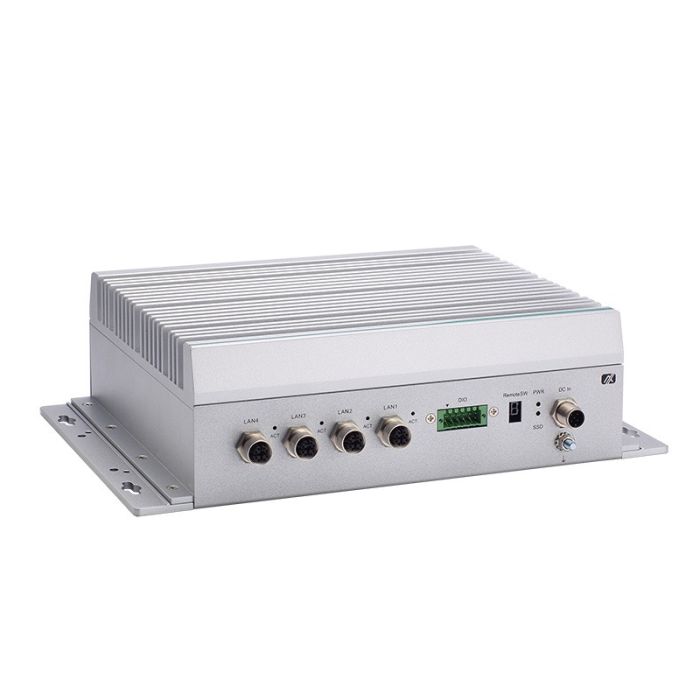

The Axiomtek tBOX210 is a rail-grade fanless embedded system designed for onboard intelligent surveillance, data collection and transportation applications. Powered by LGA1700 14th, 13th and 12th Gen Intel Core i9, i7, i5, i3 or Celeron processors, it delivers high performance in a rugged IP30 platform for demanding railway environments. With EN 50155, EN 45545-2 and NFPA 130 certifications, 24 V to 110 VDC railway power input, smart ignition control, M12 2.5GbE LAN and high capacity swappable storage, the tBOX210 is built for reliable deployment in rolling stock and onboard network systems.|

Key Features

Intel Core Processing Platform

• Supports LGA1700 14th, 13th and 12th Gen Intel Core processors

• Compatible with Intel Core i9, i7, i5, i3 and Celeron CPUs

• Intel Q670E chipset

• CPU TDP support up to 35 W

• 1 x DDR5 SO-DIMM slot supporting up to 32 GB memory

Rail-Grade Certification

• EN 50155 certified for railway applications

• EN 45545-2 certified for railway fire protection requirements

• NFPA 130 certified for transit and rail systems

• CE, LVD and FCC Class A certified

• Designed for onboard intelligent surveillance and rolling stock deployments

Rugged Fanless Construction

• Fanless design for reliable operation without moving parts

• IP30 enclosure with aluminium extrusion and heavy duty steel construction

• Operating temperature from -40°C to +70°C with wide temperature peripherals

• 0% to 95% relative humidity, non-condensing

• Designed for harsh rail and transportation environments

High Speed Network Connectivity

• 4 x M12 X-coded 2.5GbE LAN ports on the front

• 1 x RJ45 2.5GbE LAN port on the rear

• Intel I226-IT Ethernet controllers

• Suitable for high bandwidth IP camera and onboard network connections

• M12 connectivity supports secure railway and vehicle installations

Storage and RAID Support

• Available with 2 or 4 internal 2.5 inch 15 mm swappable SATA drive bays

• 2 SATA model supports Intel RAID 0 and 1

• 4 SATA model supports Intel RAID 0, 1, 5 and 10

• 1 x M.2 Key M 2280 NVMe slot for OS storage

• Designed for high capacity video recording and onboard data storage

Wireless and Expansion Support

• 1 x M.2 Key B 3052 slot for 5G or LTE modules

• 1 x full size PCI Express Mini Card slot for LTE, WiFi, Bluetooth or GPS

• 1 x M.2 Key E slot for WiFi 6 and Bluetooth

• 2 x Nano SIM slots

• 5 antenna openings for wireless deployment options

Industrial I/O and Control

• 2 x USB 3.2 Gen 2 Type-A ports

• 1 x HDMI 1.4b output supporting up to 3840 × 2160 at 30 Hz

• 1 x isolated 6-in and 2-out DIO terminal block

• 2 kV isolation voltage on digital I/O

• 1 x remote switch connection

Power and System Reliability

• 24 V to 110 VDC railway power input via M12 connector

• Maximum power consumption of 72 W

• Smart ignition power management

• TPM 2.0 support

• 255-level watchdog timer from 1 to 255 seconds

• AXView software support

Shock and Vibration Resistance

• 3 Grms vibration resistance with SSD

• 1 Grms vibration resistance with HDD

• MIL-STD-810G vibration compliant

• EN 50155 and EN 61373 Category 1 Class B compliance

• Shock tested to EN 61373 Category 1 Class B

Applications and Use Cases

The tBOX210 is suitable for:

• Railway onboard surveillance

• Rolling stock data collection

• Train NVR and video recording systems

• Passenger information systems

• Onboard network gateways

• Transportation monitoring systems

• High capacity edge storage for rail applications
