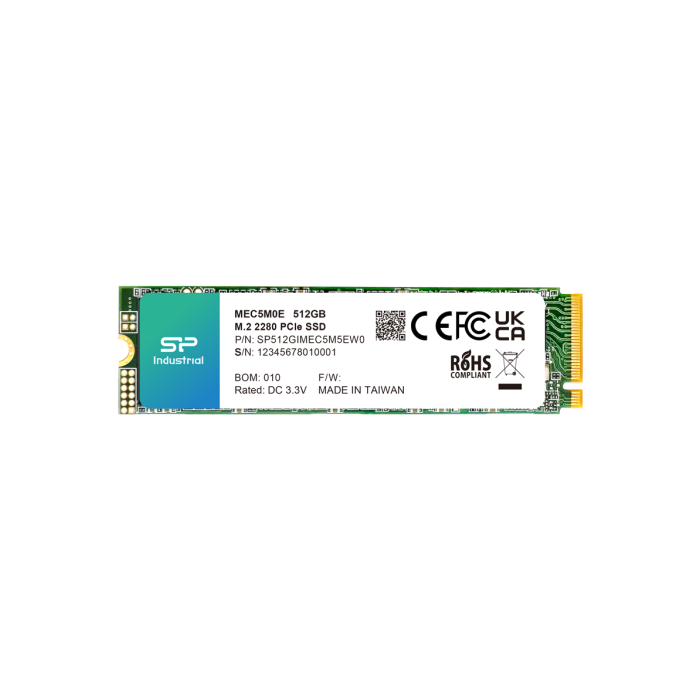

Silicon Power MEC5M0E M.2 2280 NVMe Gen4 pSLC Industrial SSD
Silicon Power MEC5M0E M.2 2280 (M key) industrial storage with PCIe Gen4x4, NVMe 2.0 connectivity and capacities from 64GB to 512GB.
Key Features:
- pSLC (3D TLC) flash technology
- Up to 7,070 MB/s read
- Up to 6,600 MB/s write
- -40°C to +85°C operation
- S.M.A.R.T. health monitoring
Description
Product Overview
The Silicon Power MEC5M0E is a industrial solid-state drive built around pSLC (3D TLC) flash in the compact M.2 2280 (M key) format. It combines PCIe Gen4x4, NVMe 2.0 connectivity, capacities from 64GB to 512GB, and sequential performance up to 7,070 MB/s read and 6,600 MB/s write for embedded and industrial systems.
Designed for dependable operation, the family supports an operating range of -40°C to +85°C with a rated MTBF of >3,000,000 hours. Integrated management and protection features help maintain data integrity and service life in applications that demand stable, long-term storage.
Key Features
- PCIe Gen4x4, NVMe 2.0 interface
- pSLC (3D TLC) flash technology
- 64GB to 512GB capacity range
- Up to 7,070 MB/s sequential read
- Up to 6,600 MB/s sequential write
- M.2 2280 (M key) form factor
- Advanced Power Shield
- AES-256 encryption support (optional)
- Thermal throttling
- S.M.A.R.T. health monitoring
- End-to-end data protection
- TCG Opal 2.0
- High-endurance pSLC mode
Download
More Information
| Brand | Silicon Power | ||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Specifications |
|
Ordering Information
| Capacity | Operating Temperature | Part Number |
|---|---|---|
| 64GB | -40°C to +85°C | SP064GIMEC5M5EW0 |
| 128GB | -40°C to +85°C | SP128GIMEC5M5EW0 |
| 256GB | -40°C to +85°C | SP256GIMEC5M5EW0 |
| 512GB | -40°C to +85°C | SP512GIMEC5M5EW0 |
