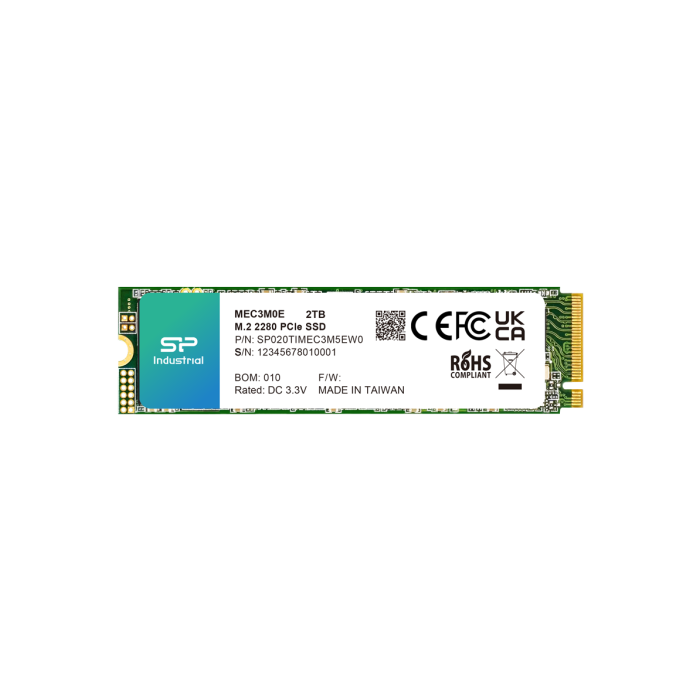

Silicon Power MEC3M0E M.2 2280 NVMe Gen4 Industrial SSD
Silicon Power MEC3M0E M.2 2280 (M key) industrial storage with PCIe Gen4x4, NVMe 2.0 connectivity and capacities from 128GB to 2TB.
Key Features:
- 3D TLC flash technology
- Up to 4,600 MB/s read
- Up to 4,300 MB/s write
- -40°C to +85°C / -20°C to +75°C operation
- S.M.A.R.T. health monitoring
Description
Product Overview
The Silicon Power MEC3M0E is a industrial solid-state drive built around 3D TLC flash in the compact M.2 2280 (M key) format. It combines PCIe Gen4x4, NVMe 2.0 connectivity, capacities from 128GB to 2TB, and sequential performance up to 4,600 MB/s read and 4,300 MB/s write for embedded and industrial systems.
Designed for dependable operation, the family supports an operating range of -40°C to +85°C / -20°C to +75°C with a rated MTBF of >3,000,000 hours. Integrated management and protection features help maintain data integrity and service life in applications that demand stable, long-term storage.
Key Features
- PCIe Gen4x4, NVMe 2.0 interface
- 3D TLC flash technology
- 128GB to 2TB capacity range
- Up to 4,600 MB/s sequential read
- Up to 4,300 MB/s sequential write
- M.2 2280 (M key) form factor
- Advanced Power Shield
- AES-256 encryption support (optional)
- Thermal throttling
- S.M.A.R.T. health monitoring
- End-to-end data protection
- TCG Opal 2.0
- DEVSLP support
Download
More Information
| Brand | Silicon Power | ||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Specifications |
|
Ordering Information
| Capacity | Operating Temperature | Part Number |
|---|---|---|
| 128GB | -20°C to +75°C | SP128GIMEC3M5EV0 |
| 128GB | -40°C to +85°C | SP128GIMEC3M5EW0 |
| 256GB | -20°C to +75°C | SP256GIMEC3M5EV0 |
| 256GB | -40°C to +85°C | SP256GIMEC3M5EW0 |
| 512GB | -20°C to +75°C | SP512GIMEC3M5EV0 |
| 512GB | -40°C to +85°C | SP512GIMEC3M5EW0 |
| 1TB | -20°C to +75°C | SP010TIMEC3M5EV0 |
| 1TB | -40°C to +85°C | SP010TIMEC3M5EW0 |
| 2TB | -20°C to +75°C | SP020TIMEC3M5EV0 |
| 2TB | -40°C to +85°C | SP020TIMEC3M5EW0 |
