Silicon Power MEA3K0E M.2 2242 NVMe Gen3 Industrial SSD
Silicon Power MEA3K0E M.2 2242 (M key) industrial storage with PCIe Gen3x4, NVMe 1.4 connectivity and capacities from 128GB to 1TB.
Key Features:
- 3D TLC flash technology
- Up to 3,100 MB/s read
- Up to 2,030 MB/s write
- -20°C to +75°C operation
- S.M.A.R.T. health monitoring
Description
Product Overview

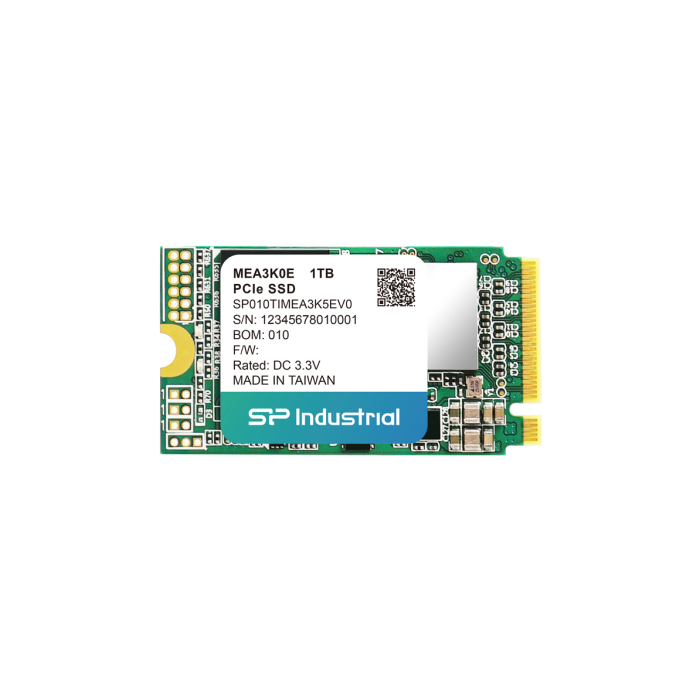

The Silicon Power MEA3K0E is a industrial solid-state drive built around 3D TLC flash in the compact M.2 2242 (M key) format. It combines PCIe Gen3x4, NVMe 1.4 connectivity, capacities from 128GB to 1TB, and sequential performance up to 3,100 MB/s read and 2,030 MB/s write for embedded and industrial systems.
Designed for dependable operation, the family supports an operating range of -20°C to +75°C with a rated MTBF of >3,000,000 hours. Integrated management and protection features help maintain data integrity and service life in applications that demand stable, long-term storage.
Key Features
- PCIe Gen3x4, NVMe 1.4 interface
- 3D TLC flash technology
- 128GB to 1TB capacity range
- Up to 3,100 MB/s sequential read
- Up to 2,030 MB/s sequential write
- M.2 2242 (M key) form factor
- Advanced Power Shield
- AES-256 encryption support (optional)
- Thermal throttling
- S.M.A.R.T. health monitoring
- End-to-end data protection
- DEVSLP support
Download
More Information
| Brand | Silicon Power | ||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Specifications |
|
Ordering Information
| Capacity | Operating Temperature | Part Number |
|---|---|---|
| 64GB | -20°C to +75°C | SP064GIMEA3K5EV0 |
| 128GB | -20°C to +75°C | SP128GIMEA3K5EV0 |
| 256GB | -20°C to +75°C | SP256GIMEA3K5EV0 |
| 512GB | -20°C to +75°C | SP512GIMEA3K5EV0 |
| 1TB | -20°C to +75°C | SP010TIMEA3K5EV0 |
