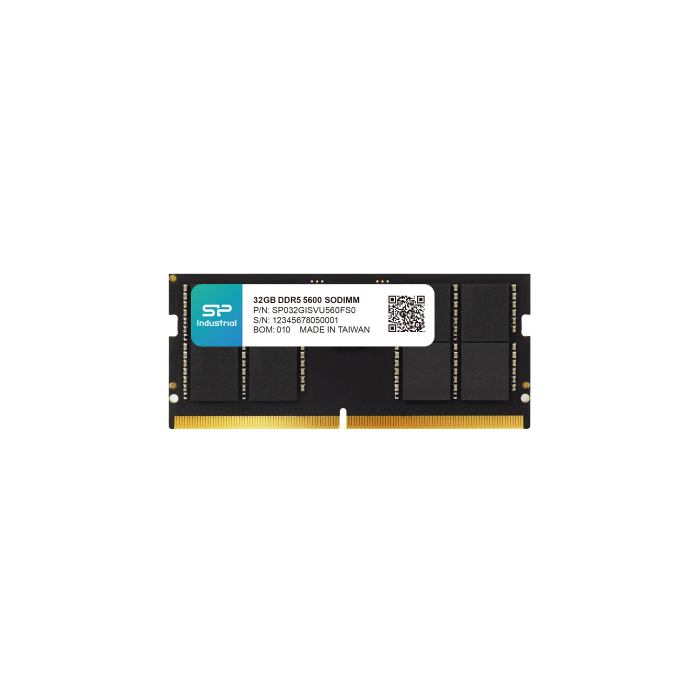

Silicon Power Industrial DDR5 SODIMM Series

Product Overview

The Silicon Power Industrial DDR5 SO-DIMM is a compact industrial memory module designed for embedded systems, industrial PCs, networking equipment and other space-constrained applications. Available in capacities up to 48 GB and data rates up to 5600 MT/s, it delivers high-bandwidth DDR5 performance at a low 1.1 V. With industrial temperature options and a standard 262-pin SO-DIMM form factor, it is suited for reliable, long-term deployment in demanding embedded and industrial environments.

Key Features

DDR5 Memory Technology

• DDR5 SO-DIMM memory module

• Data rates of 4800 MT/s and 5600 MT/s

• CL40 and CL46 latency options depending on configuration

• 1.1 V operating voltage

• 64-bit data width

Multiple Capacity Options

• Available in 8 GB, 16 GB, 32 GB and 48 GB capacities

• Supports a range of embedded and industrial system requirements

• Suitable for memory-intensive applications and multitasking

• Flexible capacity options for different platform configurations

262-Pin SO-DIMM Form Factor

• Standard 262-pin DDR5 SO-DIMM interface

• Compact form factor for space-constrained systems

• 30 mm PCB height

• Suitable for embedded boards, industrial PCs and compact controllers

Industrial Temperature Options

• Wide temperature option from -40°C to 105°C

• Alternative operating range from -20°C to 95°C

• Storage temperature from -55°C to 110°C

• Designed for applications exposed to demanding thermal conditions

Low Power Operation

• Operates at only 1.1 V

• DDR5 architecture provides improved bandwidth with efficient power consumption

• Suitable for fanless and thermally constrained embedded systems

• Supports energy-efficient industrial deployments

Reliable Industrial Operation

• Operating humidity from 10% to 95%

• Designed for long-term embedded deployment

• Suitable for systems exposed to elevated temperatures and continuous operation

• Limited lifetime warranty

Applications and Use Cases

The DDR5 SO-DIMM is suitable for:

• Industrial PCs

• Embedded computers

• Panel PCs and HMIs

• Networking equipment

• Digital signage players

• Transportation systems

• Automation controllers

• Edge processing systems
