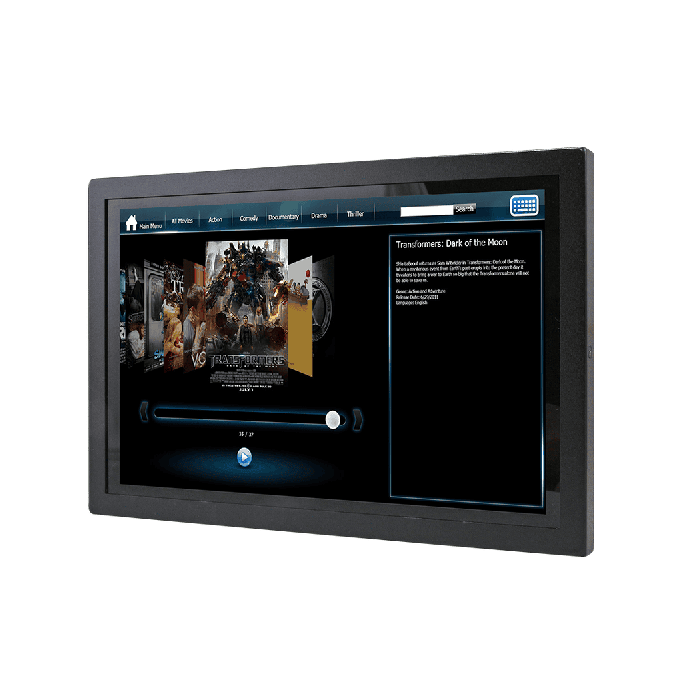

SID-10W03 10.1" Atom Semi Industrial Panel PC

End of Life

SKU: SID-10W03

10.1" Wide Semi-Ind Ultra Slim Panel PC with ATOM Z3735F CPU

Datasheet

Description

The SID-10W9 is ultra slim semi-industrial panel PC with PCAP touch and IP65 rated front panel. It is based on the Intel® Atom™ x5-Z3735F Processor. The unit has 2GB together with a choice of 32 or 64GB onboard eMMC storage.

The SID-10W09 is DC powered from 12 or 24v

Its the ideal solution for the range of applications such as point of information, Kiosk and industrial automation

Download

SID-10W03_21810145051.pdf

More Information

Brand	Avalue Technology Inc
Specifications	System Information Processor Intel Atom® x5-Z8350 Processor System Memory 2GB/4GB LPDDR3 Storage Storage 32GB/ 64GB eMMC Power Requirement DC Input DC 12~24V Software Support OS Windows 10 2019 / Linux(TBA) Certification Certification Information CE/FCC Part 15, Subpart B Panel LCD Size 10.1" LCD Panel TFT LCD Display Type WXGA Resolution 1280x800 Pixel pitch 0.1695(H)X0.1695(V) mm Luminance 350 cd/m2(typ) Contrast ratio 800 Viewing angle 85 (U), 85 (D), 85 (L), 85 ( R) Response time 30ms Backlight LED Touch Type PCAP Touch Light Transmission 86% External I/O USB 1 x USB 3.0, 2 x USB 2.0 Video Port 1 x HDMI 1.4 output Audio Port 1 x Line out Wireless LAN Antenna 1 x SMA type connector Data Communication WLAN WIFI 802.11 b/g/n/ac Mechanical & Environmental Operating Temp. 0°C ~ 40°C (32°F ~ 104°F) Storage Temp. -20°C ~ 60°C (-4°F ~ 140°F) Operating Humidity 40°C @ 95% Relative Humidity, Non-condensing Weight 1.5 kg IP Rating Front IP65 Mounting Kit 75 x75mm Dimension (W x L x D) 255.2 x 169.4 x 40.7mm Power Requirement DC 12~24V Power Mode AT mode (Default) Construction Metal Component Adapter Input: 100~240 Vac/50~60 Hz, Output: 60W Adapter (12V @ 5A Adapter) Ordering Information Ordering Information SID-10W03-5004-A1R : SID-10W03 2GB 32GB / Ubuntu 19.04 SID-10W03-5005-A1R : SID-10W03 2GB, 32GB / Win 10 SID-10W03-5007-A1R : SID-10W03 4GB, 64GB / Ubuntu 19.04 SID-10W03-5008-A1R : SID-10W03 4GB, 64GB / Win 10

Brand

Avalue Technology Inc

Specifications

System Information

Processor

Intel Atom® x5-Z8350 Processor
System Memory

2GB/4GB LPDDR3

Storage

Storage

32GB/ 64GB eMMC

Power Requirement

DC Input

DC 12~24V

Software Support

OS

Windows 10 2019 / Linux(TBA)

Certification

Certification Information

CE/FCC Part 15, Subpart B

Panel

LCD Size

10.1"
LCD Panel

TFT LCD
Display Type

WXGA
Resolution

1280x800
Pixel pitch

0.1695(H)X0.1695(V) mm
Luminance

350 cd/m2(typ)
Contrast ratio

800
Viewing angle

85 (U), 85 (D), 85 (L), 85 ( R)
Response time

30ms
Backlight

LED
Touch Type

PCAP
Touch Light Transmission

86%

External I/O

USB

1 x USB 3.0, 2 x USB 2.0
Video Port

1 x HDMI 1.4 output
Audio Port

1 x Line out
Wireless LAN Antenna

1 x SMA type connector

Data Communication

WLAN

WIFI 802.11 b/g/n/ac

Mechanical & Environmental

Operating Temp.

0°C ~ 40°C (32°F ~ 104°F)
Storage Temp.

-20°C ~ 60°C (-4°F ~ 140°F)
Operating Humidity

40°C @ 95% Relative Humidity, Non-condensing
Weight

1.5 kg
IP Rating

Front IP65
Mounting Kit

75 x75mm
Dimension (W x L x D)

255.2 x 169.4 x 40.7mm
Power Requirement

DC 12~24V
Power Mode

AT mode (Default)
Construction

Metal

Component

Adapter

Input: 100~240 Vac/50~60 Hz, Output: 60W Adapter (12V @ 5A Adapter)

Ordering Information

Ordering Information

SID-10W03-5004-A1R : SID-10W03 2GB 32GB / Ubuntu 19.04
SID-10W03-5005-A1R : SID-10W03 2GB, 32GB / Win 10
SID-10W03-5007-A1R : SID-10W03 4GB, 64GB / Ubuntu 19.04
SID-10W03-5008-A1R : SID-10W03 4GB, 64GB / Win 10
