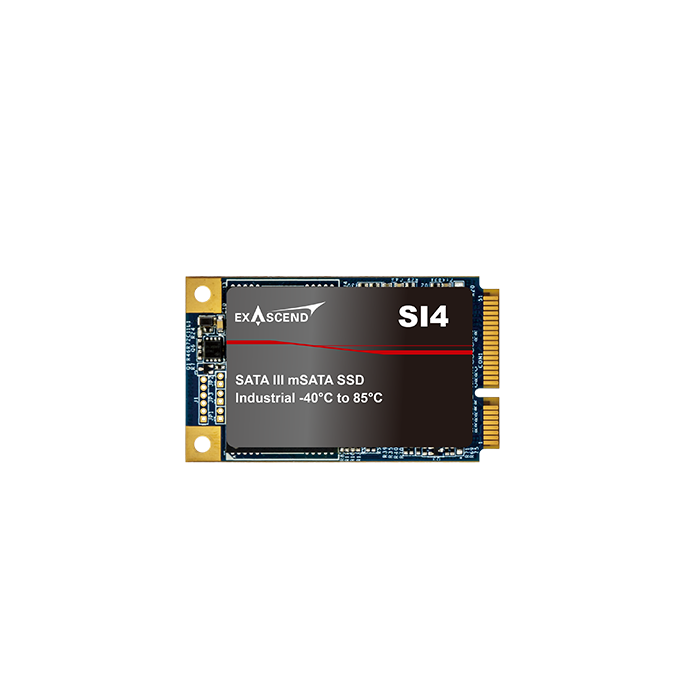

SI4 Industrial-grade mSATA SSD 120GB to 960GB

SKU: EXSI4B0xxxGB


Built to perform reliably in extreme temperature conditions.

Key Features:

  • SATA 6Gb/s
  • 120GB to 960GB
  • Up to 545 MB/s read and 535 MB/s write speeds
  • Wide temperature range from -40°C to +85°C

Description

The SI4 series is a cutting-edge storage solution incorporating advanced 176-layer 3D TLC NAND technology, designed for industrial applications. It offers versatile form factors, including M.2 2280, 2.5-inch, and mSATA, with storage capacities ranging from 120 GB to an impressive 7.68 TB.



Download

More Information

Brand Exascend
Specifications

Interface

SATA-III, 6.0Gb/s

Edition

Standard (Streaming)

Capacity

120GB to 960GB

Flash Type

3D TLC

DRAM

Yes

Max. sequential read

up to 545 (MB/s)

Max. sequential write

up to 535 (MB/s)

4K random read

94,000 IOPS

4K random write

15,000 IOPS

Input voltage

3.3 V ± 5%

Active Mode (Avg.)

Active < 2.5W

Idle mode (Avg.)

Idle < 0.4W

Operational temperature

-40°C to 85°C

Storage temperature

-50°C to 95°C

Humidity (non-condensing)

5–95% (Operating)

Vibration

10 G (peak, 10–2000 Hz)

Shock (operating)

50 G

(11 ms duration, half sine wave)

Shock (non-operating)

1500 G

(0.5 ms duration, half sine wave)

MTBF

2,000,000 hours

TBW up to

1,040TB

DWPD (JESD219 Enterprise)

1 for 3 years

Warranty

3 years

Features

TCG Opal 2.01 / AES-256 (optional).

Advanced LDPC error correction.

Firmware level power loss protection.

Hardware power loss protection*.

Ordering Information

Edition Standard (Streaming)
