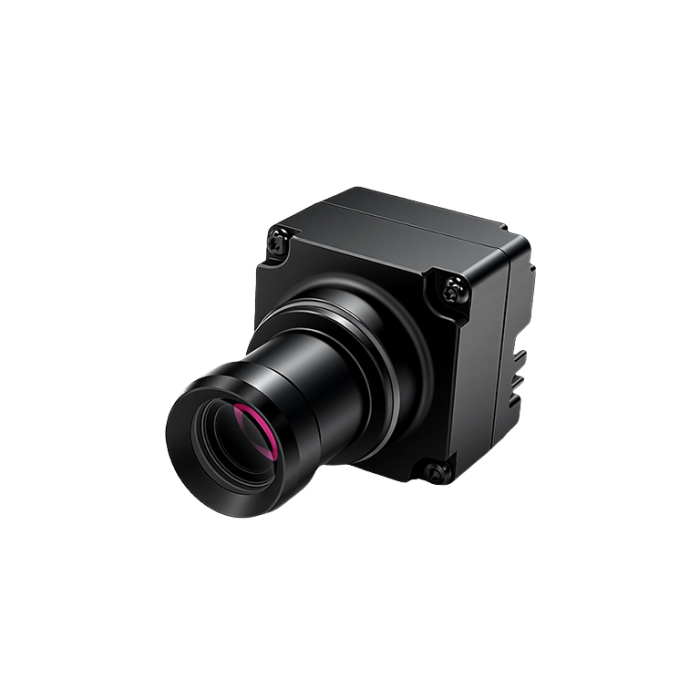

SG8-OX08DC-5300-G2G 8MP GMSL2 Camera
Approved for use with Nexcom NVIDIA Jetson Orin models
8.3MP OMNIVISION OX08D10 camera with GMSL2 connectivity, integrated ISP and IP67 enclosure.
Key Features:
- 8.3MP OMNIVISION OX08D10 sensor, 3840 × 2160 at up to 45fps
- GMSL2 interface with MAX96717 serializer
- Integrated GW5300 ISP with 8-bit YUV422 output
- Lens options of 30°, 60° and 120° horizontal FOV
- Supports multi-camera synchronisation
- IP67 enclosure, −40°C to +85°C operation
- NVIDIA Jetson AGX Orin and AGX Xavier support via SG8A-ORIN-GMSL2 adapter
Description
Product Overview
The SENSING SG8-OX08DC-5300-G2G is an 8.3MP GMSL2 camera designed for autonomous driving, ADAS, robotics and industrial vision applications. Built around the OMNIVISION OX08D10 automotive image sensor with a GW5300 image signal processor, it delivers 3840 × 2160 video with YUV422 8-bit output and high-speed GMSL2 transmission through a MAX96717 serializer. With an IP67 enclosure, a wide -40°C to 85°C operating temperature range and multiple field of view options, the camera is suited to demanding mobile and outdoor vision systems.
Key Features
8.3MP OMNIVISION Sensor
-
OMNIVISION OX08D10 RGGB image sensor
-
8.3MP resolution
-
1/1.73 inch CMOS sensor format
-
3840 × 2160 output resolution
-
Rolling shutter architecture
GMSL2 High Speed Video Interface
-
Maxim MAX96717 serializer
-
Designed for GMSL2 camera systems
-
Supports reliable high-speed video transmission
-
Suitable for long cable runs in vehicle and robotic platforms
-
Compatible with supported GMSL2 capture and developer kits
GW5300 Image Signal Processing
-
Integrated GW5300 ISP
-
YUV422 8-bit output
-
Factory-tuned image processing
-
Designed to deliver consistent image quality for machine vision and autonomous applications
Multiple Field of View Options
-
30° horizontal field of view option
-
60° horizontal field of view option
-
120° horizontal field of view option
-
Factory-focused and fixed lens configuration
-
Lens replacement option available for specialised configurations
Rugged Automotive Design
-
IP67-rated enclosure
-
Automotive-grade image sensor
-
Operating temperature from -40°C to 85°C
-
Designed for demanding outdoor and vehicle environments
-
Compact housing suitable for multi-camera installations
Compact Camera Module
-
Measures 30 × 30 × 22.57 mm
-
Compact form factor for space-constrained installations
-
Suitable for integration into vehicles, robots and autonomous platforms
-
Supports dense multi-camera system configurations
Applications and Use Cases
The SG8-OX08DC-5300-G2G is suitable for:
-
Autonomous driving systems
-
ADAS development
-
Robotaxi and autonomous vehicle platforms
-
Unmanned ground vehicles
-
Mobile robots and industrial robotics
-
Machine vision applications
-
Rail transport vision systems
-
Multi-camera perception and sensor fusion
Dimensions Drawings
Download
More Information
| Brand | SENSING | ||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Specifications |
|
Ordering Information
Lenses are fixed at the factory. Request lens-replacement arrangements or intrinsic calibration when ordering. Calibration is not included by default.
