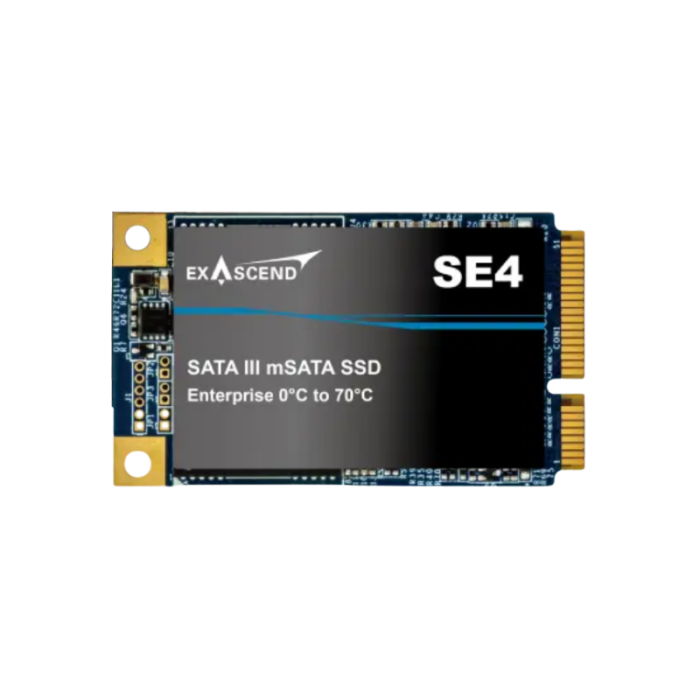

SE4 Enterprise-grade mSATA SSD 120GB to 960GB

SKU: EXSE4B0xxxGB


Delivers sustained performance across varying DWPD/TBW.

Key Features:

  • SATA-III, 6.0Gb/s
  • 120GB to 960GB
  • Up to 545 MB/s read and 520 MB/s write speeds
  • Operating temperature range from 0°C to 70°C

Description

SE4 is a high-capacity SATA enterprise SSD offering high capacity in a compact design, it is perfect for maximizing storage efficiency in space-constrained applications, supporting up to 15.36TB. It delivers exceptional performance suited for intensive workloads, ensuring the best in both form and function for your enterprise needs.

Powered by Exascend’s proprietary technologies, the SE4 Series SSD delivers exceptional energy efficiency, with an average power consumption of under 2.8W.

SE4 is designed for NAS, workstations, SMB environments, and high-performance caching applications. With a focus on versatility and efficiency, it ensures seamless operation across diverse applications. Whether supporting SMB operations, boosting workstation capabilities, or optimizing caching, the SE4 Series delivers an excellent balance of performance, efficiency, and reliability.



Download

More Information

Brand Exascend
Specifications

Interface

SATA-III, 6.0Gb/s

Edition

Standard (Streaming)

Capacity

120GB to 960GB

Flash Type

3D TLC

DRAM

Yes

Max. sequential read

up to 545 (MB/s)

Max. sequential write

up to 520 (MB/s)

4K random read

92,000 IOPS

4K random write

17,000 IOPS

Input voltage

3.3 V ± 5%

Active Mode (Avg.)

Active < 2.4W

Idle mode (Avg.)

Idle < 0.4W

Operational temperature

0°C to 70°C

Storage temperature

-40°C to 85°C

Humidity (non-condensing)

5–95% (Operating)

Vibration

10 G (peak, 10–2000 Hz)

Shock (operating)

50 G

(11 ms duration, half sine wave)

Shock (non-operating)

1500 G

(0.5 ms duration, half sine wave)

MTBF

2,000,000 hours

TBW up to

1,040TB

DWPD (JESD219 Enterprise)

0.6 for 5 years

Warranty

5 years

Features

TCG Opal 2.01 / AES-256 (optional).

Advanced LDPC error correction.

Firmware-level power loss protection.

Hardware power loss protection*.
