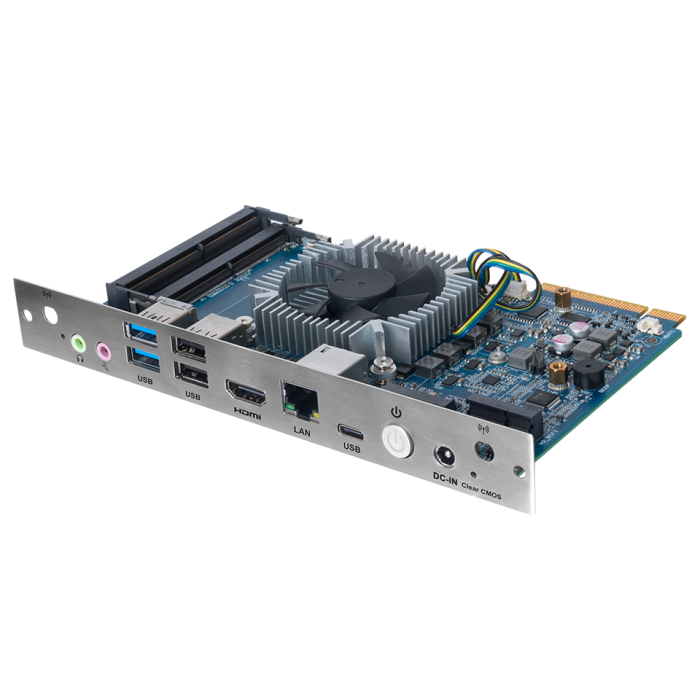

SDM-L 611 Gen 11 Smart Display Module
Fit NEC/Panasonic/Newline Display, Tiger Lake (Intel 11th Gen.), Support Max. 8K Display
Key Features:
- Intel Tiger Lake UP3 Celeron/Core processors
- SDM I/O support 8K resolution, 1 x HDMI (4096 x 2304 @60 Hz)
- Support Wi-Fi/BT module
- Intel vPro technology Core i5-1145G7
Tiger Lake UP3, Intel's 11th generation mobile processors constructed using 10nm process technology, power the SDM-L. The platform combines a high-performance CPU with single-thread performance that is up to 23% faster and multi-thread performance that is up to 19% faster. As an option, it supports vPro functionality.
Key Features:
- Intel Tiger Lake UP3 Celeron/Core processors
- SDM I/O support 8K resolution, 1 x HDMI (4096 x 2304 @60 Hz)
- Support Wi-Fi/BT module
- Intel vPro technology Core i5-1145G7
| CPU | CPU |
Intel® Celeron® 6305 processor
Intel® Core™ i3-1115G4 processor
Intel® Core™ i5-1135G7 processor
Intel® Core™ i5-1145G7 processor
Intel® Core™ i7-1165G7 processor |
|
Base Frequency |
1.80GHz /3.00 GHz /2.40 GHz /2.60 GHz /2.80 GHz
|
|
|
Turbo Frequency |
NA /4.10 GHz /4.20 GHz /4.40 GHz /4.70 GHz
|
|
|
Chipset |
SoC | |
|
Processing Units |
2 Cores /2 Cores /4 Cores /4 Cores /4 Cores |
|
|
Configurable TDP-up |
15 W /28 W /28 W/ 28 W /28W |
|
| Memory | Size | Up to 32 GB |
| Type | 2 x SO-DIMM DDR4-3200 MHz | |
| Storage | Socket 1 | 1 x M-Key M.2 (2242/2280) for SSD |
| Display |
GPU |
Intel® UHD Graphics (Celeron 6305, Core i3) |
|
Graphic Engine |
DirectX 12.0, OpenGL 4.5, OpenCL 2.2, 8K60fps 12b 4:2:0 HEVC/VP9/SCC |
|
|
Display Interface |
1 x HDMI (Max.4096 x 2304 @60 Hz) |
|
| Network |
Network Controller
|
1 x i219LM Gigabit Ethernet
|
|
Ethernet Interface
|
1 x RJ45
|
|
|
Wi-Fi/BT
|
1 x E-Key M.2 (2230) for Wi-Fi/BT, Support Wi-Fi 5, Wi-Fi 6 (CNVi)
|
|
|
Mobile Network
|
NA
|
|
| I/O interface |
USB |
1 x USB Type-C3.2 Gen1,
2 x USB3.2 Gen2, 2 x USB2.0
|
|
Serial Port |
NA |
|
|
Audio |
1 x MIC-IN, 1 x AUDIO-OUT |
|
|
Button |
1 x Power on, 1 x CLR-CMOS |
|
|
Antenna |
2 x Connector for Wi-Fi/BT |
|
|
SDM I/O
PCIe X8 Edge Connector |
HDMI, DP1.4, USB3.2 Gen2, UART, GSPI, I2C, PCIe, SYS_FAN
|
|
|
System
|
TPM
|
Optional: TPM2.0
|
|
Watchdog Timer
|
Yes | |
|
Auto Power On
|
Yes
|
|
|
RTC
|
Set up independently every day, a week as a cycle
|
|
|
Remo on
|
NA
|
|
|
Power Requirement
|
DC-IN, 12 V/5 A
SDM IO: 12 V
|
|
|
Dimensions
|
175mm x 110mm (6.89” x 4.33” )
|
|
|
Operating System
|
Windows 10 (64bit) /Windows 11 (64bit) /Linux Ubuntu (64bit)
|
|
|
Operating Temperature
|
0°C ~60°C (32°F~113°F) @0.7m/s Air Flow
|
|
|
Humidity
|
95% @ 60°C (non-condensing)
|
