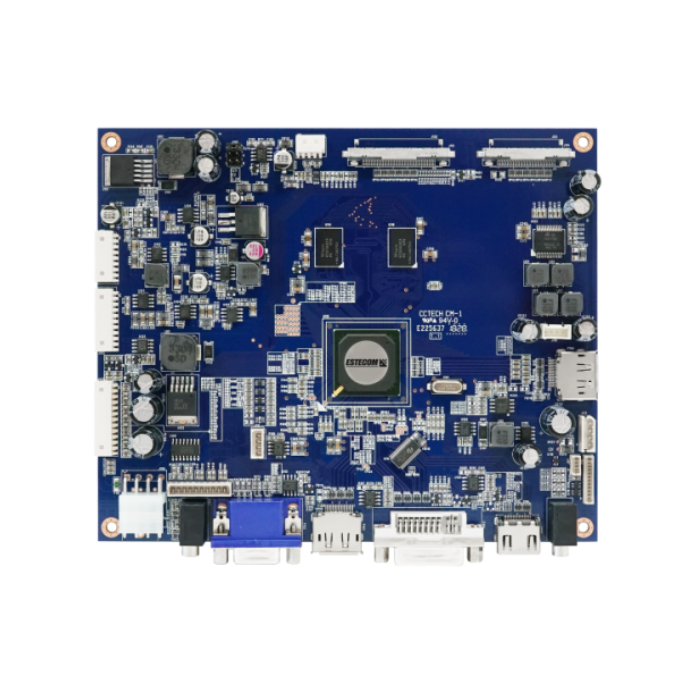

Saffron
Multi-purpose LCD controller
175mm x 145mm
VGA, DVI, HDMI, DP, YPbPr
WQXGA @ 60Hz
Description
Saffron is an advanced Industrial grade TFT-LCD Monitor Control Board. Supporting Frame Buffer function. This design Enables a full conventional CRT monitor and/or video replacement with a large size Active Matrix LCD module. Saffron can support UART communication through Displayport cable. It is suitable for video resolution up to WQXGA(2560x1600 @ 60Hz) in all video mode.
Special features.
-Video wall function by DP loop through (Daisy Chain)
- 120Hz panel support without additional FRC board.
Download
More Information
| Brand | Estecom |
|---|---|
| Specifications |
Board Dimension 175x 145mm Input Signal RGB , Y/Pb/Pr, HDMI, DVI (Dual link), Displayport Output Signal 4CH LVDS, Displayport Maximum Resolution 2560x 1600 @60Hz Local Control OSD (On Screen Display) and IR Remote Control (UART) RS-232, Displayport AUX channel. Operating Temperature -20°C ~70°C Humidity 8% ~ 90% Input Power Voltage +24VDC or +12VDC Storage Temperature -30°C ~80°C
|
