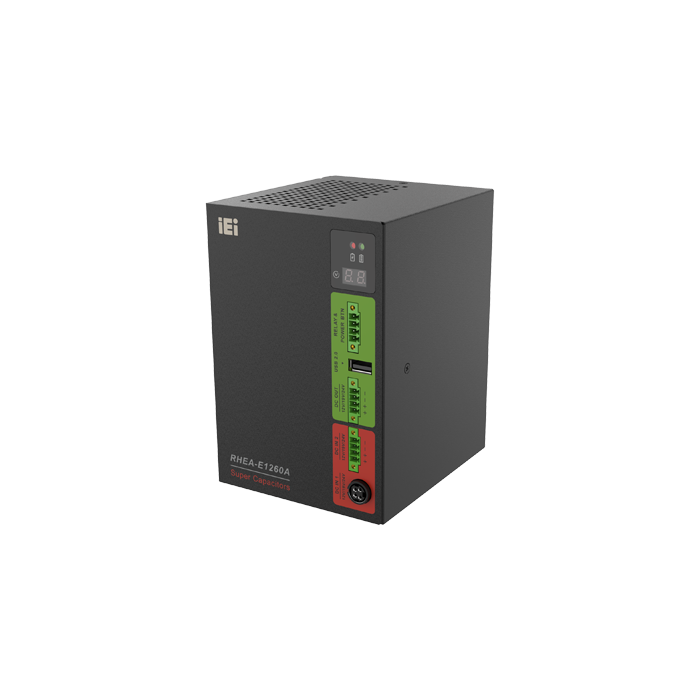

RHEA-E1260A Supercapacitor Uninterruptible Power Supply
Supercapacitor uninterruptible power supply
Key Features:
- Twelve 3.0V / 600F supercapacitors
- 12 / 19 / 24 VDC adaptive input and output
- Maximum 150W load at 2.6V (30°C) for 100 seconds
- Standard 60W load at 2.6V (30°C) for 280 seconds
- -40°C to 60°C wide operating temperature range
- Up to 500,000 charge and discharge cycles
- Long lifespan, up to 10 years
- Intuitive power management software for easy control
- Power-off shutdown support via software and hardware
Description
Product Overview
The IEI RHEA-E1260A is an industrial DC to DC supercapacitor backup system designed to provide short-term power protection for embedded and industrial computing platforms. It ensures system continuity during power interruptions, preventing data loss and enabling safe shutdown or continued operation during voltage drops. Built for demanding environments, the unit integrates high-capacity supercapacitors with a rugged enclosure, making it suitable for automation, transportation, edge computing and industrial control systems where stable power is critical.
Key Features
Supercapacitor Backup Protection
-
Integrated supercapacitor array for instant backup power during outages
-
Provides short-term power hold-up to protect systems from voltage drops
-
Supports safe shutdown procedures to prevent data corruption
-
Ideal for environments with unstable or fluctuating power
Wide Power Input and Output Support
-
Supports multiple input and output voltages, including 12 V, 19 V and 24 V
-
Designed for compatibility with a wide range of industrial systems
-
Terminal block and DC jack connectors for flexible integration
-
Supports power pass-through and controlled output delivery
Industrial System Integration
-
Includes relay and power button interface for system control integration
-
USB interface for monitoring and configuration
-
Designed to integrate with embedded PCs, edge devices and automation systems
-
Supports seamless operation within industrial power architectures
Rugged and Reliable Design
-
Heavy-duty metal enclosure for durability in industrial environments
-
Designed to withstand vibration and harsh operating conditions
-
Wide operating tolerance for industrial deployment
-
Built for continuous operation in mission-critical systems
Compact Form Factor
-
Compact industrial design for installation in control cabinets or enclosures
-
Supports wall mount and DIN rail mounting options
-
Space-efficient solution for backup power integration
-
Designed for easy deployment in existing systems
Applications and Use Cases
The RHEA-E1260A is suitable for:
-
Industrial automation and control systems
-
Edge computing and embedded PCs
-
Transportation and vehicle systems
-
Factory equipment and robotics
-
Any system requiring protection against sudden power loss
Dimensions/Drawings
Download
More Information
| Brand | IEI Integration Corp. | ||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Specifications |
|
Ordering Information
| RHEA-E1260A-R10 | 150W DC/DC Supercapacitor backup system, 12/19/24V Input and Output, 12x 600F@3V Supercapacitor, External |
