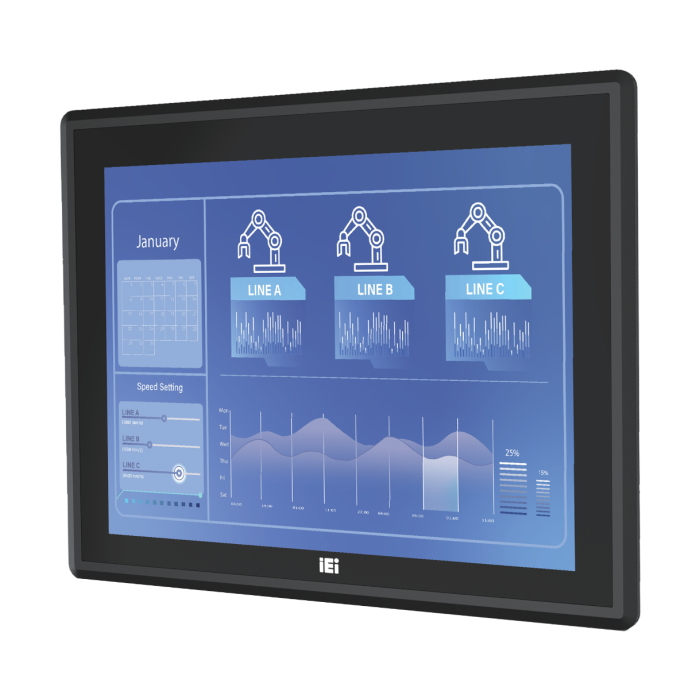

PPC2-C150-ADLP 15" Fanless IP65 Front Panel PC
15.0”, 450nit, 1024x768, Intel Alder Lake-P Processor, 8GB on-board RAM, HDMI, 12V DC, PCAP touchscreen
Key Features:
- Fanless
- Intel Alder Lake-P Platform
- On board 8GB RAM (no need to worry about vibration issues)
- 4:3 display; 1024 x 768 resolution
- IP65-compliant front panel
Enquire Now
Enquire about this product:
15.0”, 450 cd/cm², 1024x768, Panel PC with Intel Alder Lake-P Processor, 8GB on-board RAM, HDMI output, black, 12V DC input, projected capacitive touchscreen with AG
Key Features:
- Fanless
- Intel Alder Lake-P Platform
- On board 8GB RAM (no need to worry about vibration issues)
- 4:3 display; 1024 x 768 resolution
- IP65-compliant front panel
| Model | PPC2-C150-ADLP | ||||
| LCD Display | 15.0" (4:3) | ||||
| Resolution | 1024 (W) x 768 (H) | ||||
| Brightness | 450 cd/cm² | ||||
| Contrast Ratio | 800:1 | ||||
| LCD Color | 16.2M | ||||
| Viewing Angle (H-V) | 160°/150° | ||||
| Backlight MTBF | 50,000 hours | ||||
| CPU (SoC) | 12th Generation Intel® Core™ i7/i5/i3 Processor ( Alder Lake-P) | ||||
| Memory | Dual-channel 8GB LPDDR4x on-board | ||||
| Touchscreen | Multi-point projected capacitive type (anti-UV / anti-glare coating, support gloves) Surface hardness: ≥7H |
||||
| Touch Controller | Projected capacitive type IC: EETI 80 | ||||
| Ethernet | LAN1: Intel® I225V 2.5GbE controller LAN2: Intel® I225-LM 2.5GbE controller (support Intel® AMT ) |
||||
| Expansion | 1 x M.2 M key 2242 (PCIe Gen4 x 4) 1 x M.2 M key 2280 (PCIe Gen4 x 4) 1 x M.2 A key 2230 (PCIe Gen3 x1 + USB 2.0) |
||||
| Mounting | VESA 100, Panel, Wall, Rack, Stand and Arm | ||||
| Construction Material | Aluminium front cover and sheet metal rear cover | ||||
| Enclosure Color | Silver+Black | ||||
| I/O Ports, Switch | 2 x RS-232 by DB9 1 x HDMI output 2 x RS-232/422/485 by DB9 1 x 12V DC Jack 2 x 2.5GbE RJ45 1 x Power button 2 x USB 3.2 Gen2 1 x Reset button 2 x USB 3.2 Gen1 1 x AT/ATX switch 1 x USB 2.0 |
||||
| Thermal Solution | Fanless | ||||
| Power Input | DC 12V | ||||
| TPM | Intel® Platform Trust Technology | ||||
| Watchdog Timer | Software Programmable support 1~255 sec. system reset | ||||
| Operating Temperature (with airflow) |
-10ºC ~ 50ºC | ||||
| Storage Temperature | -20ºC ~ 60ºC | ||||
| Humidity | 10% ~ 95%@40ºC, non-condensing | ||||
| IP Level | IP 65 compliant front panel | ||||
| Safety and EMC | CE/FCC Class A/UKCA | ||||
| Operation Vibration | MIL-STD-810G 514.6C-1 | ||||
| Operation Shock | Half-sine wave shock 5G; 11ms; 100 shocks per axis | ||||
| Dimensions (H x W x D) | 378.50 x 303.00 x 61.00 | ||||
| Net Weight | TBD | ||||
| ErP | ErP 2009/125/EC | ||||
| OS | Windows 10/11 IoT, Linux | ||||
| Packing List | |
| 1 x Power Cord | 1 x Power Adapter |
| 1 x Panel Mount Kit | 1 x QIG |
| Ordering Information | |
| PPC2-C150-ADLP-i7/8G-R10 | 15.0” 450 cd/cm² 1024x768 Panel PC with Intel® i7-1260P Processor, 8GB LPDDR4x on-board, HDMI output, black, 12V DC input, projected capacitive touchscreen with AG, R10 |
| PPC2-C150-ADLP-i5/8G-R10 | 15.0” 450 cd/cm² 1024x768 Panel PC with Intel® i5-1240P Processor, 8GB LPDDR4x on-board, HDMI output, black, 12V DC input, projected capacitive touchscreen with AG, R10 |
| PPC2-C150-ADLP-i3/8G-R10 | 15.0” 450 cd/cm² 1024x768 Panel PC with Intel® i3-1220P Processor, 8GB LPDDR4x on-board, HDMI output, black, 12V DC input, projected capacitive touchscreen with AG, R10 |
| Options | |||||
| Item | Part No | Description | |||
| Arm | ARM-11-RS | VESA 75/100 Desk Arm | |||
| Stand | STAND-C12-R10 | VESA 75/100 Easy Stand | |||
| Wall Mount Kit | AFLWK-19B | Monitor Wall Mount kit | |||
| OS | WIN10-IoTE2021-H-RS WIN10-IoTE2021-V-RS |
Win10 IoT Ent LTSC 2021 MultiLang High End Win10 IoT Ent LTSC 2021 MultiLang Value |
|||
