SKU: Power on Pole

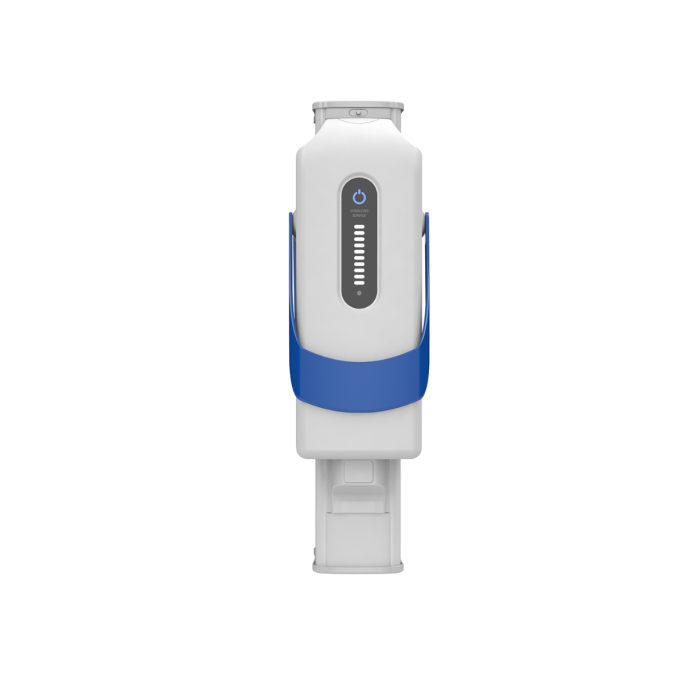

Geni-Tec Power on Pole solution

Datasheet

Description

Geni-Tec Power on Pole solution

· Easy cleaning

· Lightweight manoeuvrability

· Retrofit to existing equipment

· Power ready with our Geni-TecTM power modules

· Sleek easy use design

· OEM customisation for specific applications

· Single or dual dock systems

· Easy washable 216 Wh power modules (IP67)

Data Sheet

Specifications	Dual power on pole Single power on pole Input Voltage 28VDC (via optional GEN-PSU-220 Supplied Separately) Output Voltage 12-28 VDC (Firmware adjustable) Output Power (max) 100 W @ 12-18 VDC 150 W @ 19-28 VDC Power Capacity (max) 432 Wh max 216 Wh max Charge Current 4.0 A (max) Recharge Time 5.0 hrs (typ) - Two power modules 2.5 hrs (typ) - One power module Operating Temperature 1°C to 40°C (34°F to 104°F) Storage Temperature -10°C to 35°C (14°F to 95°F)

Specifications

Dual power on pole Single power on pole

Input Voltage 28VDC (via optional GEN-PSU-220 Supplied Separately)

Output Voltage 12-28 VDC (Firmware adjustable)

Output Power (max) 100 W @ 12-18 VDC 150 W @ 19-28 VDC

Power Capacity (max) 432 Wh max 216 Wh max

Charge Current 4.0 A (max)

Recharge Time 5.0 hrs (typ) - Two power modules 2.5 hrs (typ) - One power module

Operating Temperature 1°C to 40°C (34°F to 104°F)

Storage Temperature -10°C to 35°C (14°F to 95°F)

We can customise any solutions according to your specifications. Click below to learn more
and contact us.
