OFT-07WAD 7" Open Frame Tablet with Intel N50

SKU: OFT-07WAD 7" Open Frame Tablet with Intel N50

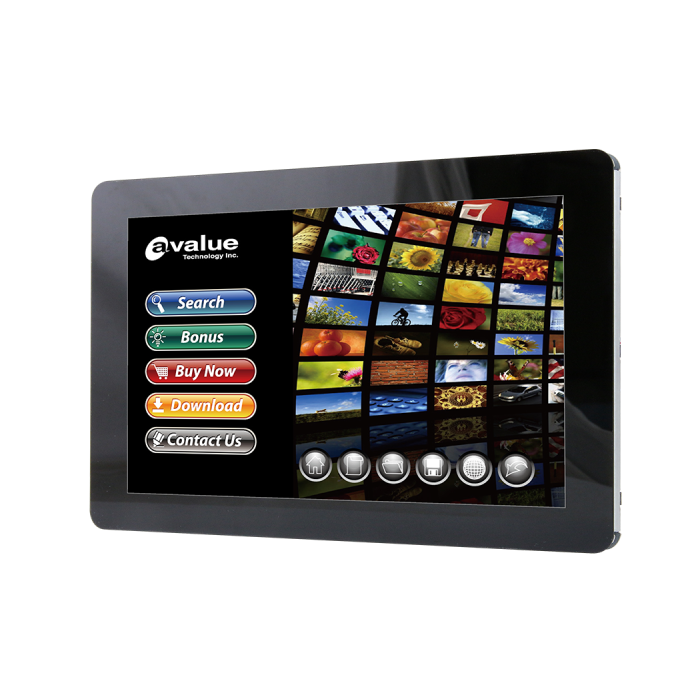

7" Open Frame Tablet with Intel® N50

Key Features:

  • 7" 1280 x 800 / 1024 x 600 Open Frame Tablet with PCAP touch
  • Intel® Processor N50, 6M Cache, up to 3.4 GHz
  • Onboard 8GB LPDDR5 / 64GB eMMC
  • Support Windows 10/11, Ubuntu 24.04
  • Fanless operation from 0°C ~ 40°C

Description

The Avalue OFT-07WAD is a compact 7-inch open frame panel PC designed for space-constrained environments that demand reliable performance and robust durability. Featuring a fanless design and an ultra-slim chassis, this all-in-one solution is ideal for applications in factory automation, retail kiosks, and smart building control. Powered by an Intel® N50 processor, the OFT-07WAD delivers efficient processing while maintaining low power consumption.

Its projected capacitive touchscreen provides a responsive and intuitive user experience. With flexible I/O options including LAN, USB, HDMI and optional wireless connectivity, the OFT-07WAD supports seamless integration into a variety of systems and environments. Designed for 24/7 operation and long-term availability, this panel PC combines reliability, functionality, and modern design for industrial edge applications.


Download

More Information

Brand Avalue Technology Inc
Specifications

Category

Specification

System Information



Processor

Intel® Processor N50, 6M Cache, up to 3.4 GHz

System Memory

8GB LPDDR5

CPU Cooler

Heatsink

Storage



Primary Storage

64GB eMMC

Other Storage

1 x Micro SD Slot

Ethernet



LAN Chipset

Realtek RTL8111I-CG

Ethernet Interface

10/100/1000 Base-Tx GbE compatible

Power Requirement



DC Input

+12V ~ +24V

DC Input Connector

Lockable DC Jack

Software Support



OS Compatibility

Windows 10/11, Ubuntu 24.04

Certification

CE, FCC Class A

Panel



LCD Size

7"

Resolution

1280 x 800 / 1024 x 600

Luminance

350 cd/m²

Viewing Angle

87.5° (U/D/L/R)

Touch Type

Projective capacitive multi-touch (up to 10 points)

External I/O



USB Ports

2 x USB 3.0

Audio Port

1 x Audio Jack TRS

LAN Port

1 x RJ45

HDMI

1 x HDMI 2.0 Out

DC Input

1 x DC Jack

Other

1 x Power Button

Internal I/O



Connectors

1 x A-MIC, 1 x 16bit GPIO, 1 x I2C, 1 x RS-232/RS-485, 1 x RTC Battery, 1 x Speaker, 2 x Touch Button, 1 x USB 2.0, 2 x USB 2.0 + DMIC

Wireless Communication



WLAN

Wi-Fi 802.11a/b/g/n/ac/ax

Bluetooth

Optional BT 5.2

DC In / Out Characteristics



Input Voltage Range

DC +12 ~ +24V

Power Type

AT

Mechanical & Environmental



Operating Temperature

0°C ~ 40°C (32°F ~ 104°F)

Storage Temperature

-20°C ~ 60°C (-4°F ~ 140°F)

Operating Humidity

40°C @ 95% RH, Non-condensing

Dimensions (W x L x H)

183.1 x 115.85 x 27.3 mm

Weight

0.55kg

Ordering Information



OFT-07WAD-N5-A1-1R

7" OFT N50 8GB/64GB Non OS

OFT-07WAD-N5-A1-2R

7" OFT N50 8GB/64GB Win 10

OFT-07WAD-N5-A1-3R

7" OFT N50 8GB/64GB Win 11

Ordering Information

Part Number: OFT-07WAD-N5-A1-1R
7" OFT Open Frame Tablet with N50 8GB/64GB
