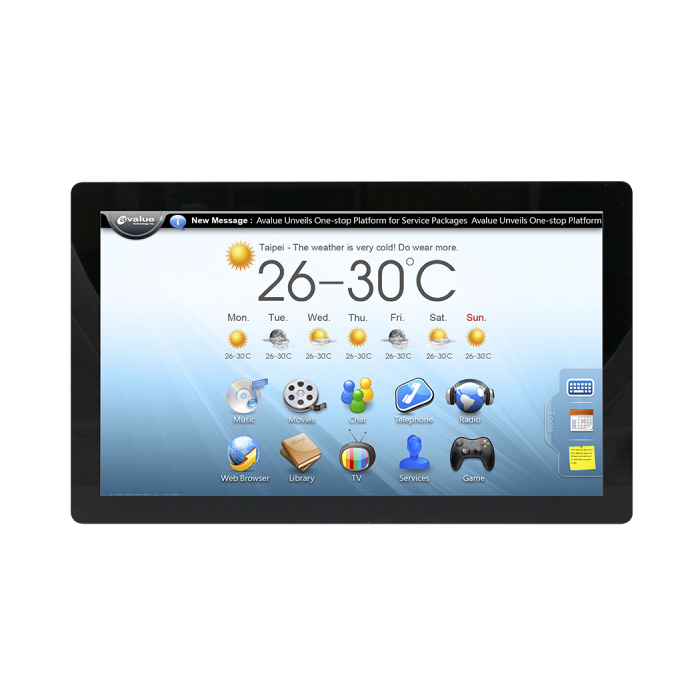

OFP-15W38-O1 15.6” Fanless Open Frame Panel PC with 11th Gen

Product Specifications

System Information

Processor: 11th Generation Intel® Core™ i3/i5/i7 Processors

• Intel® Core™ i3-1115G4E, 6M Cache, up to 3.00 GHz

• Intel® Core™ i5-1145G7E, 8M Cache, up to 2.60 GHz

• Intel® Core™ i7-1185G7E, 12M Cache, up to 2.80 GHz

System Memory: Default 4 GB DDR4, supports up to 64 GB DDR4 3200 MHz SO-DIMM
I/O Chipset: EC iTE IT8528
Watchdog Timer: H/W reset 1 sec – 65535 sec/min, 1 sec or 1 min per step
BIOS: AMI uEFI BIOS, 256 Mbit SPI Flash ROM
H/W Status Monitor: System temperature & voltage monitoring with auto-throttling control
TPM: TPM 2.0
SBC: EMX-TGLP
CPU Cooler (Type): Fanless heatsink
Other: Includes OOB (Out-of-Band) module, 6 × antenna mounts with dust covers (reserved)

Expansion

Expansion Slot: 1 × M.2 (2230) E-Key for Wi-Fi module

Storage

Default Storage: 60 GB Apacer CoreSnapshop 2.5″ SSD for OOB recovery
Additional Storage: 1 × M.2 Type B 3042/3052/2242/2260/2280 SSD (SATA/NVMe, optional)

Display

Graphics Chipset: Intel® 12th Generation CPU Integrated
Display Outputs: 2 × DP++ (1920 × 1080 @ 60 Hz)

Audio

Audio Codec: Realtek ALC888S
Audio Interface: Mic-in, Line-out
Audio Amplifier: 2 × Stereo Class-D 6 W

Ethernet

LAN Chipsets: 1 × Intel® I219LM GbE PHY (LAN1); 1 × Intel® I225LM 2.5 GbE (LAN2)
Ethernet Interfaces: I219LM – 10/100/1000 Base-T; I225LM – 10/100/1000/2.5 G Base-T

Power Requirement

DC Input: +12 V ~ +24 V
ACPI: Single Power ATX support S0, S3, S4, S5; ACPI 3.0 compliant

Software Support

Operating Systems: Windows 10 / Windows 11 / Linux

Certification

Compliance: CE / FCC Class A

Panel

LCD Size: 15.6″ (16:9)
Display Type: Full HD
Resolution: 1920 × 1080
Pixel Pitch: 0.17925 mm (H) × 0.17925 mm (V)
Luminance: 220 cd/m²
Contrast Ratio: 800:1
Viewing Angle: 85° (U), 85° (D), 85° (L), 85° (R)
Response Time: 30 ms
Backlight: LED
Touch Type: Projected capacitive multi-touch (up to 10 points)
Touch Light Transmission: 89 %
Touch Controller: EETI

External I/O

USB Ports: 4 × USB 3.0, 2 × USB 2.0 (optional)
LAN Ports: 2 × RJ-45, 1 × RJ-45 for OOB connectivity
COM Ports: 1 × RS-232 (default)/RS-422/RS-485, 3 × RS-232 (optional)

Internal I/O

GPIO: 16-bit GPIO (optional)
System Control: HDD LED and Power LED Indicators

Mechanical & Environmental

Operating Temperature: 0 °C ~ 45 °C (32 °F ~ 113 °F)
Storage Temperature: –20 °C ~ 60 °C (–4 °F ~ 140 °F)
Operating Humidity: 40 °C @ 95 % RH (non-condensing)
Dimensions (W × L × H): 387 × 235 × 48 mm
Weight: 4.9 kg
Vibration Test: 1.5 Grms, IEC 60068-2-64, random 5–500 Hz, 0.5 hr/axis (with M.2 SATA)
Shock Test: 10 G operational, IEC 60068-2-27 procedure (with M.2 SATA)
Drop Test: ISTA 2A, IEC 60068-2-32
Mounting Options: Wall / Stand / VESA 75 × 75 mm & 100 × 100 mm
Power Mode: Default AT mode
System Fan: Fanless
