NV500 IP66 Military Jetson Thor Computer
IP66 military NVIDIA Jetson Thor T5000 computer for rugged edge AI
Key Features:
- NVIDIA Jetson Thor T5000 with 2,070 FP4 sparse TFLOPS
- 14-core Arm Neoverse-V3AE CPU and 128GB LPDDR5X memory
- QSFP28 100GbE plus dual GbE networking
- Optional 4-channel 3G-SDI and 8-channel GMSL
- Rugged D38999 external connectors
- IP66 enclosure as specified for this Tekdis listing
- -20°C to +60°C operation
- MIL-STD-810 shock and vibration tested
Description
Product Overview

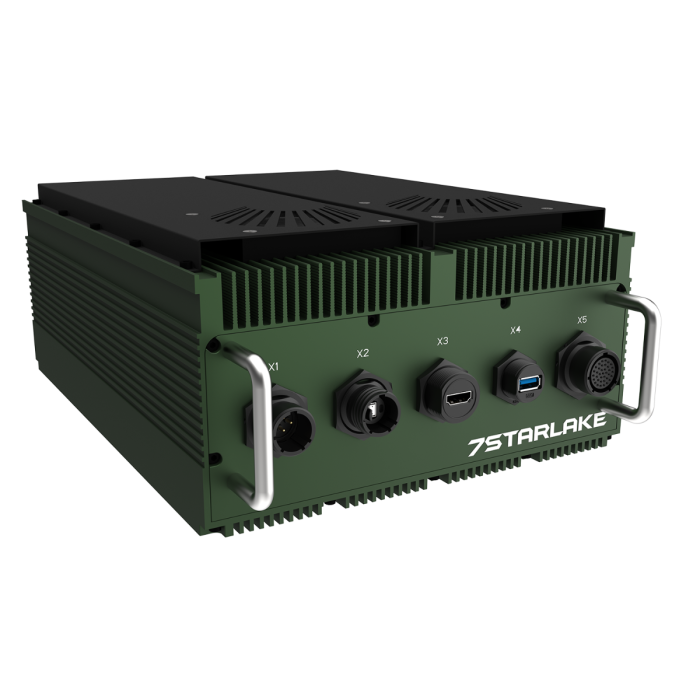

The 7StarLake NV500 is an IP66 military NVIDIA Jetson Thor T5000 computer for high-performance physical AI, autonomous systems, ISR and sensor fusion at the tactical edge. It combines Blackwell GPU acceleration, a 14-core Arm Neoverse-V3AE processor and 128GB LPDDR5X memory with rugged D38999 connectivity and high-bandwidth QSFP28 networking.
Key Features
Physical AI Compute
2,070 FP4 sparse TFLOPS from a 2,560-core NVIDIA Blackwell GPU
Fifth-generation Tensor Cores and MIG support with 10 TPCs
14-core Arm Neoverse-V3AE CPU
128GB LPDDR5X memory with 273GB/s bandwidth
Flexible I/O and Expansion
QSFP28 100GbE interface plus 2 x GbE RJ45
HDMI, USB 3.1, USB 2.0, RS-232, GPIO and CAN bus
M.2 Key B, M.2 Key E, SIM, mPCIe GNSS and TPM expansion
Optional 4-channel 3G-SDI and 8-channel GMSL
Rugged Military Design
IP66 rating for this Tekdis product listing
MIL-STD-810 shock and vibration performance
Optional MIL-STD-461 EMI shielding and filter
Passive cooling and -20°C to +60°C operation
Download
More Information
| Brand | 7StarLake | ||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Specifications |
|
Ordering Information
| Category | Specification |
|---|---|
NV500-1T | Jetson T5000, IP66, 1TB storage, QSFP28 100GbE, D38999 connectors, DC 18–32V |
NV500-4T | Jetson T5000, IP66, 4TB storage, QSFP28 100GbE, D38999 connectors, DC 18–32V |
NV500-1T4D | Jetson T5000, IP66, 1TB storage, 4-channel 3G-SDI, QSFP28 100GbE, DC 18–32V |
NV500-2T4D8L | Jetson T5000, IP66, 2TB storage, 4-channel 3G-SDI, 8-channel GMSL, QSFP28 100GbE, DC 18–32V |
