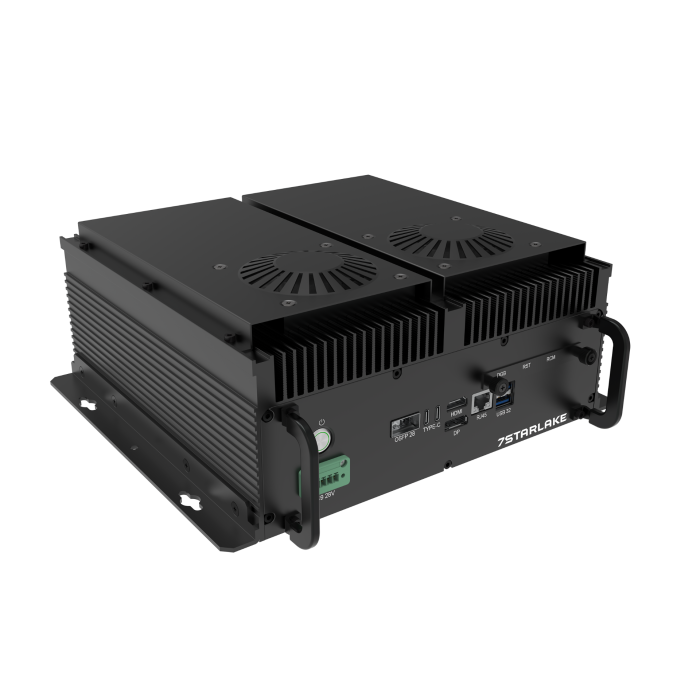

NV500-DY Jetson Thor T5000 AI Computer

Processor

14-core Arm Neoverse-V3AE 64-bit CPU; 64KB I-cache and 64KB D-cache; 1MB L2 per core; 16MB shared L3

GPU

2,560-core NVIDIA Blackwell GPU; 96 fifth-generation Tensor Cores; MIG with 10 TPCs

AI Performance

2,070 TFLOPS FP4 sparse

Memory

128GB 256-bit LPDDR5X, 273GB/s

Expansion

M.2 Key E with PCIe Gen5 x1, populated with Wi-Fi and Bluetooth module

Graphics

1 x HDMI 2.0 up to 3840 x 2160; 1 x DisplayPort 1.4a

Storage

1 x M.2 Key M PCIe Gen5 x4, populated with 1TB NVMe; model options up to 4TB

Ethernet

1 x 5GbE RJ45; 1 x QSFP28 supporting 4 x 10GbE by default or 25GbE

Front I/O

Power button; 9–28V DC input; QSFP28; 2 x USB 3.1 Type-C including recovery; HDMI 2.0b; DisplayPort 1.4a; 5GbE RJ45; 2 x USB 3.2 Type-A

Access I/O

USB Type-C debug; recovery button; reset button

Internal I/O

2 x 13-pin CAN; 2 x 6-pin automation; 2 x 5-pin JTAG; 4-pin 12V PWM/tach fan; 2 x 5-pin audio; 2-pin RTC backup battery

Power

40W–130W; ordering configurations use 10–28V DC

Operating System

Ubuntu 24.04 with JetPack 7.x

Dimensions

250 x 250 x 118mm (W x D x H)

Construction

AL6061 aluminium chassis; corrosion-resistant aluminium-alloy heatsink; anodic aluminium oxide finish

Cooling

Natural passive convection/conduction; no moving parts

Ingress Protection

IP40 on manufacturer ordering configurations; no Magento ingress filter selected

EMC

Optional MIL-STD-461: CE102, RE102-4 and RS103

Reliability

Passive cooling; ISO 9001/2000-certified design and manufacturing programme

Operating Temperature

-20°C to +60°C

Storage Temperature

-40°C to +85°C

Humidity

5% to 95%, non-condensing

Model Options

NV500-DY-1T; NV500-DY-4T; NV500-DY-1T4D; NV500-DY-2T4D8L

3G-SDI / GMSL

Model-dependent: up to 4-channel 3G-SDI and 8-channel GMSL

Shock and Vibration

MIL-STD-810 vibration Method 514.6 and shock Method 516.6
