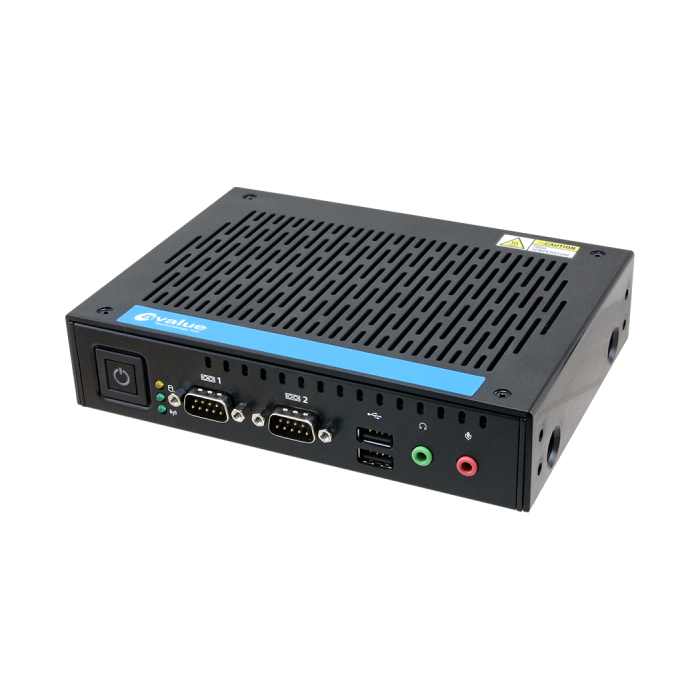

NUC-RPU 13th Gen Intel Core Fanless Ultra Slim PC

Product Overview

The Avalue NUC-RPU is a fanless ultra slim embedded system designed for industrial, commercial and space constrained applications. Powered by 13th Gen Intel Raptor Lake-U processors, it supports Intel Core i7, i5 and i3 15 W CPU options with Intel Iris Xe or UHD graphics. With DDR5 memory, quad HDMI display output, dual Intel Ethernet controllers, multiple USB ports, serial communication and M.2 expansion, the NUC-RPU is well suited to digital signage, automation, kiosk, edge processing and embedded control applications.

Key Features

13th Gen Intel Raptor Lake-U Platform

• Supports 13th Gen Intel Core i7, i5 and i3 processors

• Embedded and non-embedded 15 W processor options available

• Intel Iris Xe or UHD graphics, depending on CPU configuration

• Designed for efficient performance in compact embedded deployments

Compact Fanless Design

• Ultra-slim fanless system design

• Quiet operation with reduced maintenance requirements

• IP40 rated enclosure

• Suitable for desktop, panel, cabinet and space-constrained installations

DDR5 Memory Support

• 1 x 262-pin SO-DIMM socket

• Supports up to 32 GB DDR5 4800 memory

• Suitable for multitasking, signage playback and embedded applications

• Compact memory configuration for slim system integration

Quad Display Output

• 4 x HDMI 2.0b outputs

• Supports up to 4096 × 2304 at 60 Hz

• Suitable for digital signage, video walls and multi-screen applications

• Intel integrated graphics for commercial display workloads

Networking and I/O Connectivity

• 1 x Intel 1GbE LAN controller

• 1 x Intel 2.5GbE LAN controller

• 2 x COM ports supporting RS-232/422/485

• 2 x audio jacks for mic-in and line-out

• 8 x USB ports including USB 2.0, USB 3.2 Gen 1 and USB 3.2 Gen 2

M.2 Expansion and Storage

• 1 x M.2 Key E 2230 slot for wireless expansion

• 1 x M.2 Key B 2242/3042/3052 slot with internal SIM support

• 1 x M.2 Key M 2280 slot with PCIe Gen4 x4 support

• Supports NVMe SSD storage and cellular module integration

System Reliability and Security

• TPM 2.0 support

• Intel iAMT support on selected processor models

• Hardware watchdog timer from 1 second to 65535 seconds

• CPU temperature and voltage monitoring with auto throttling control

• AMI uEFI BIOS with 256Mbit SPI flash ROM

Flexible Mounting and Power

• Supports table stand, VESA and DIN rail mounting

• +12 VDC power input with lockable DC jack

• AT and ATX power mode support

• Suitable for industrial cabinets, signage installations and embedded systems

Applications and Use Cases

The NUC-RPU is suitable for:

• Digital signage and multi-display systems

• Industrial automation and control

• Self-service kiosks

• Thin client systems

• Edge processing applications

• Retail, hospitality and commercial installations

• Compact embedded system deployments



Dimensions/Drawings
