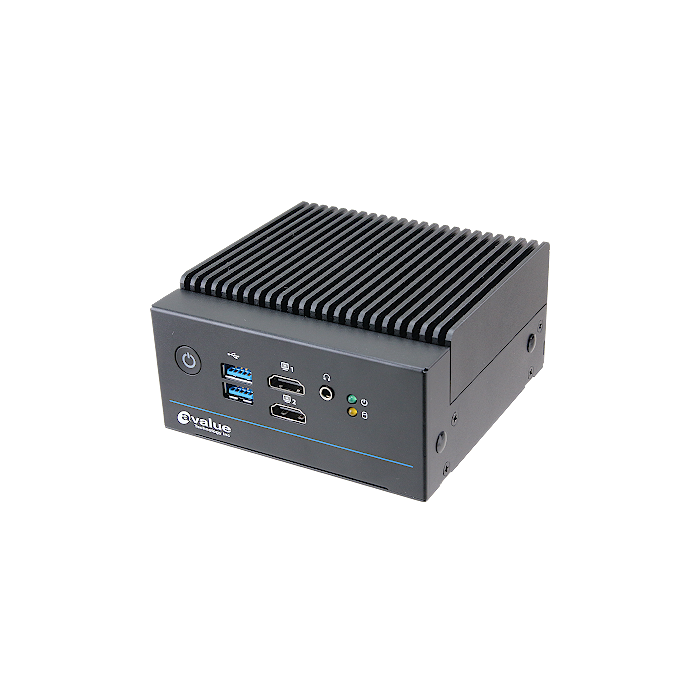

NUC-APL Fanless NUC System J3455/N3350
View larger image
NUC-APL Fanless NUC System J3455/N3350
Intel Apollo Lake Celeron Processor J3455/N3350 Up to 8GB DDR3
Key Features:
Onboard Intel Celeron Processor J3455/N3350 Single DRAM Socket, Max. Up to 8GB DDR3 1866MHz Rich I/O, 2 x COM, 2 x LAN, 4 x USB3.0, 1 x Audio, 2 x Antennal Mounting Triple Display, 2 x HDMI, 1 x DP (DVI-I/VGA Factory Option) Expansion Slot, M.2 Key-B, M.2 Key-E Fanless Operating from 0°C ~ 60°C DC Power Input +12V Compact Size, 115mm x 111mm x 58mm Supports VESA/Din-Rail Kit TPM 2.0 (Factory Option)
Description
The NUC-APL series is a fanless system based on Intel's Next Unit of Computing (NUC). The NUC-APL series is a powerful and small compact PC with a powerful processor, fast memory, and huge storage that rivals the most recent full-size desktop PCs. The Intel® Celeron® Processor J3455/N3350 powers the NUC-APL. On the back, it has twin HDMI, one DP, several USB 3.0 connections, and two COM ports for use in a variety of applications and scenarios. The NUC-APL, which uses Intel HD graphics, can handle HD media and more demanding applications than standard low-power PCs. The TDP is less than 22 watts despite the excellent performance.
Key Features:
Onboard Intel Celeron Processor J3455/N3350
Single DRAM Socket, Max. Up to 8GB DDR3 1866MHz
Rich I/O, 2 x COM, 2 x LAN, 4 x USB3.0, 1 x Audio, 2 x Antennal Mounting
Triple Display, 2 x HDMI, 1 x DP (DVI-I/VGA Factory Option)
Expansion Slot, M.2 Key-B, M.2 Key-E
Fanless Operating from 0°C ~ 60°C
DC Power Input +12V
Compact Size, 115mm x 111mm x 58mm
Supports VESA/Din-Rail Kit
TPM 2.0 (Factory Option)
More Information
Brand
Avalue Technology Inc
Specifications
-System Information-
Processor Intel® Celeron® Processor J3455 (2M Cache, up to 2.3 GHz)
System Memory 1 x 204-pin SO-DIMM Socket, Max, Up to 8GB DDR3L 1866MHz
BIOS Information AMI BIOS, 128Mbit SPI Flash ROM
Watchdog Timer H/W Reset, 1 sec. ~ 65535sec and 1sec. or 1min./step
H/W Status Monitor Monitoring CPU Temperature, Voltage with Auto Throttling Control
SBC NCM-APL
Expansion
Expansion 1 x M.2 (Key-B, 2242/3042, PCIe, SATA, USB 3.0, USB 2.0, SIM Slot)
Storage
Storage 1 x 2.5” Drive Bay (7 or 9.5mm)
I/O
USB Port 4 x USB 3.0 (5Gbps)
COM Port 1 x RS-232/422/485 (BIOS&Cable)
Antenna 2 x Antenna Mounting with Dust Cover
System Control
LED Indicator 1 x Power on/off LED & Storage Access LED on front side
Display
Graphic Chipset Intel® HD Graphics 500
Spec. & Resolution 2 x HDMI 1.4b: Max. Resolution 3840x2160@30Hz
Multiple Display Triple Display
Audio
Audio Codec Realtek ALC888S
Audio Interface 1 x Audio Jack (Mic-in + Line-Out Combo)
Certifications
Certification Information CE, FCC Class A, UKCA
Ethernet
LAN Chipset Realtek RTL8111E Gigabit Ethernet
Ethernet Interface 10/100/1000 Base-Tx Gigabit Ethernet Compatible
LAN Port 2 x RJ45
Power Requirement
DC Input +12V
DC Input Connector Lockable DC Jack
ACPI Single Power ATX Support S0, S3, S4, S5
Power Mode AT/ATX (ATX is the default setting)
Adapter Input: 100 ~ 240Vdc/ 50 ~ 60Hz
Mechanical & Environmental
Operating Temperature With extended temperature peripherals -10°C ~ 50°C (14°F ~ 122°F) with 0.2m/s air flow
Storage Temperature -30~70C° (-22°F ~ 158°F)
Operating Humidity 40°C @ 95% Relative Humidity, Non-condensing
Dimension (W x L x H) 115mm x 111mm x 58mm (4.53” x 4,37” x 2.28”)
Weight 0.85KG (1.87lbs)
Vibration Test With SSD: 5Grms, IEC 60068-2-64, Random, 10 ~ 500Hz, 30min/Axis, 3 Axis
Shock Test With SDD : 55G, IEC 60068-2-27, Half Sine, 11ms, Z Axis
Mounting Kit VESA/Din Rail Kit
Drop ISTA 2A, IEC-60068-2-32 Test: Ed, 1 Corner, 3 Edges, 6 Faces
Construction Aluminum + Metal
Software Support
OS Information Win 10, Linux
Ordering Information
Ordering Information NUC-APL-34-B1-1R® Celeron® Processor J3455 Fanless NUC System® Celeron® Processor N3350 Fanless NUC System
