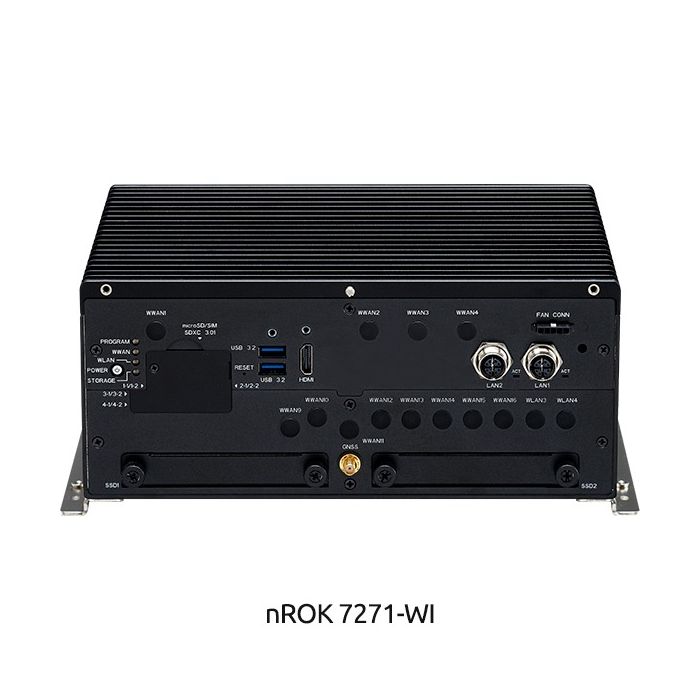

nROK7271 Fanless Rail Computer with 12/13th Gen Intel Core CPU

SKU: nROK7271-WI/WIC4

Fanless Rolling Stock Computer with 12/13th Gen Intel® Core™ CPU

Key Features:

  • Powered by 12/13th Gen Intel® Core™ CPU
  • Fanless, compact and rugged design
  • Designed with DDR5, excellent memory bandwidth, and lower latency
  • 2 x 2.5” SSD for data integrity (compatible with 15mm disk)
  • 5G/Wi-Fi, PoE, 10GbE, daughter board expansion support
  • 4 x Independent 10/100/1000/2500 Mbps PoE 802.3af/at
  • EN 50155, class OT3 conformity
  • Wide voltage input 24~110VDC (w/ isolation)
  • Optional up to 3-sec protection against temporary voltage dips
Datasheet

Description

Product Overview

NEXCOM system nROK 7271 accomplishes operational efficiency of public transportation and service. Based on Intel® 12/13th Gen FCLGA1700 socket-type CPU and 4/12-port 802.3 af/at PoE, it provides an integral solution incorporating high computing power. With dual SIM cards per modem support, it allows two SIM cards backup for a better connectivity quality through software. RAID 0, 1 guarantees the safety of data in the 2 x external SSD. The nROK 7271 further distinguishes itself to provide power isolation for 24~110VDC and optional up to 3-sec protection against temporary voltage dips, a feature critical for scenarios where input voltage variability may shut down the equipment. With daughter board expansion design, optional for an additional 1 x mini-PCIe slot (BOM optional for M.2 Key E) and 2 x M.2 Key B slot, 8-port 1Gbps Ethernet Switch GbE, PoE 802.3af/at, max. 30W, or 2-port 10GbE M12 X-coded, nROK 7271 keeps the flexibility to meet the demand for different rolling stock applications, such as infotainment, transportation cellular router, video server, and video surveillance.

Key Features

High Performance Computing

  • Intel 12th or 13th Gen socket-type CPU for powerful multithreaded workloads

  • Up to 12-port PoE for IP cameras, sensors, and networking devices

  • RAID 0 and 1 support for data redundancy and high-speed access

Rugged and Reliable Railway Design

  • Fanless construction for long-term reliability

  • Wide input voltage range from 24 to 110 VDC with optional 3-second power hold-up

  • Designed for rolling stock vibration, shock, and electrical environments

Power and Connectivity

  • 4 or 12 ports of 802.3af/at PoE with up to 30 W per port

  • Flexible Ethernet options including 8-port 1GbE switch or 2-port 10GbE M12 X-coded

  • Multiple I/O, including USB, RS-232, DI/DO, HDMI, and console ports

Wireless Expansion

  • Dual SIM per modem for network redundancy

  • Support for optional 4G and 5G modules

  • Optional Wi-Fi modules through M.2 Key E expansion

Certifications and Compliance

  • Compliant with railway and transportation standards

  • Meets industrial safety and EMC requirements

Dimensions Drawings





Download

Datasheet
User Manual
* You have to Login or Register to download this file

More Information

Brand Nexcom
Specifications

CPU

  • Intel® 12/13th Gen Core™ CPU (65W/35W), Chipset: Intel R680E, Graphics: Intel® UHDGraphics770,1.55GHz

Memory

  • 2 x 262-pin SO-DIMM, DDR5 4800MHz

  • 64GB in max., ECC & dual-channel support

Video Output

  • 1 x HDMI 2.0a/b, up to 3840 x 2160@60Hz

  • 1 x VGA, up to 1920 x 1200@60Hz

Storage

  • 2 x 2.5” SATA 3.0 external SSD (15mm height, removable)

  • 1 x mSATA (occupied mini-PCIe slot)

  • 2 x M.2 Key B (occupied M.2 socket)

  • 1 x microSD card slot, SDXC v3.01

Expansion

  • 1 x Full-size mini-PCIe socket (USB 2.0, PCIe 3.0/SATA 3.0)

  • 2 x M.2 3042/3050/3052 Key B socket (USB 2.0, USB 3.2 Gen 2, SATA 3.0) for LTE/5G NR module with 1 x external dual nano-SIMs

  • 1 x M.2 2230 Key E socket (USB 2.0, PCIe 3.0 x2), BOM optional M.2 2230 Key E socket (USB 2.0, PCIe 3.0, PCIe 3.0)

GNSS and Onboard Sensor

  • 1 x Default U-blox NEO-M9N GNSS module for GPS+QZSS /Glonass/Galileo/Beidou

  • 1 x 3D accelerometer and 3D gyroscope

LAN and Power over Ethernet

  • nROK 7271-WIC4:
    - 1-port LAN M12 X-coded, 10/100/1000/2500 Mbps Intel® I226 GbE (support WOL)
    - 4-port Independent LAN M12 X-coded, 10/100/1000/2500 Mbps Intel® I226-IT GbE, PoE 802.3af/at, max. 60W, non-isolation (w/o PoE expansion board) / 30W (w/ PoE expansion board)

  • nROK 7271-WI:
    - 2-port LAN M12 X-coded, 10/100/1000/2500 Mbps Intel® I226 GbE (support WOL)

Security

  • TPM 2.0: InfineonSLB9665TT2.0FW5.62

I/O Interface-Front

  •  4 x LED indicators (storage/WWAN/WLAN/programmable)

  • 1 x HDMI 2.0a/b

  • 2 x USB 3.2 Gen 2 type A (5V/0.9A)

  • 2 x Externally accessible dual nano-SIM card sockets with cover

  • 1 x microSD card slot with cover

  • 2 x 2.5” removable SSD tray

  • 1 x Reset button

  • 1 x Power button

  • nROK 7271-WIC4 :

    • 1 x M12 X-coded LAN port

    • 4 x M12 X-coded PoE 802.3af/at

  • nROK 7271-WI:

    • 2 x M12 X-coded LAN port

  • 1 x Fan power connector

  • 1 x SMA connector for GNSS

  • 4 x SMA connector holes for WWAN

  • 2 x Externally accessible dual nano-SIM card socket holes with cover, 8 x SMA connector holes for WWAN, and 2 x RP-SMA connector holes for WLAN (reserved for 5G/Wi-Fi expansion board)

I/O Interface-Rear

  • 1 x VGA

  • 1 x M12 A-coded 8-pin for 2 x USB 2.0

  • 1 x M8 (AUDIO) for 1 x Mic-in, 1 x Line-out

  • 2 x DB9 (COM1/2) for full RS232/422/485 (isolation)

  • 1 x DB15 (CAN/DIO)
    - 2 x Isolated CAN FD, compatible with CAN2.0A/2.0B
    - 4 x DI and 4 x DO (isolation), power in source for DIO isolation, 14~48VDC

  • 1 x M12 K-coded 5-pin for power input

  • 1 x Connector 2-pin for ignition input

  • 4 x SMA connector holes for WWAN

  • 4 x RP-SMA connector holes for WLAN

Power Management & Software Support

  • Power input 24~110VDC w/ isolation

  • Optional 2.2~3 sec (170W~120W) protection against temporary voltage dips (occupied rear side expansion)

  • Selectable boot-up & shut-down voltage for low power protection by software

  • Setting the 8-level power on/off delay time by software

  • Support S3/S4 suspend mode

  • 10~255 seconds WDT support, set up by software

  • SDK (Windows/Linux), including utility and sample code

Operating System

  • Windows 11/Windows 10/Linux

Dimensions

  • 260 x 210 x 110 (W x D x H) (mm)

Weight

  • nROK 7271-WIC4: 6.98kg

  • nROK 7271-WI: 6.93kg

Environment

  • Operating temperatures
    -35°C~70°C, 85°C for 10 minutes (w/ 35W TDP CPU, 60W PoE, 8GB memory, industrial SSD) with air flow

  • Storage temperatures: -40°C to 80°C

  • Relative humidity: 90% (non-condensing)

  • Vibration (random)
    - 2g@5~500 Hz (in operation, SSD)

  • Vibration (SSD)
    - Operating: MIL-STD-810H, Method 514.8C, Procedure 1, Category 4, common carrier US highway truck vibration exposure
    - Storage: MIL-STD-810H, Method 514.8E, Procedure 1, Category 24, minimum integrity test

  • Shock (SSD)
    - Operating: MIL-STD-810H, Method 516.8, Procedure I, functional shock=40g
    - Non-operating: MIL-STD-810H, Method 516.8, Procedure V, crash hazard shock test=75g

Certifications

  • CE/UKCA/FCC Class A

  • EN 50155: 2021
    - Ambient temperature EN 50155, Class OT3
    - Interruptions of voltage supply class S1, S2 (w/ supercap board), S3 (w/ supercap board)
    - Supply change over class C1, C2 (w/ supercap board)
    - EMC EN 50121-1: 2017, EN 50121-3-2: 2016+A1: 2019
    - Environment EN 60068-2-1, EN 60068-2-2, EN 60068-2-30
    - Shock and vibration IEC 61373 Class B
    - Protective coating class PC1 (PC2, by request)

  • EN 45545-2: 2020+A1: 2023



Ordering Information

nROK 7271-WIC4 (P/N: 10A00727100X0)
System bare-bones. Intel® 12/13th Gen CPU with DDR5, DC input 24~110VDC (w/ isolation), 1 x LAN M12 X-coded, 4 x PoE M12 X-coded, 2 x CAN FD

nROK 7271-WI (P/N: 10A00727101X0)
System bare-bones. Intel® 12/13th Gen CPU with DDR5, DC input 24~110VDC (w/ isolation), 2 x LAN M12 X-coded, 2 x CAN FD

(Optional) VIOB-CAP-01 Supercap board kit for nROK 7271 (P/N: 88A00727103X0)
Supercap board for protection against temporary voltage dips

(Optional) VIOD-WWB4S-01 5G/Wi-Fi expansion board kit for nROK 7271 (P/N: 88A00727100X0)
Additional expansion:
- 1 x Full size mini-PCIe socket (USB 2.0, PCIe 3.0), BOM optional M.2 2230 Key E socket (USB 2.0, PCIe 3.0)
- 2 x M.2 3042/3050/3052 Key B socket (USB 2.0, USB 3.2 Gen 1) for LTE/5G NR module with 2 x external dual nano-SIMs

(Optional) VIOD-L1M8P-01 PoE expansion board kit for nROK 7271 (P/N: 88A00727101X0)
Additional PoE port:
- 8-port LAN M12 X-coded, 10/100/1000 Mbps Ethernet Switch GbE, PoE 802.3 af/at, max. 30W (w/ nROK 7271-WIC4)/60W (w/ nROK 7271-WI) (isolation)

(Optional) VIOD-LTM2-W01 10GbE expansion board kit for nROK 7271 (P/N: 88A00727102X0)
Additional 10GbE port and expansion:
- 2-port 10GbE M12 X-coded
- 1 x M.2 3042/3050/3052 Key B socket (USB 2.0, USB 3.2 Gen 1) for LTE/5G NR module with 2 x external dual nano-SIMs
- 1 x Full-size mini-PCIe socket (USB 2.0, PCIe 3.0), BOM optional 1 x M.2 3042/3050/3052 Key B socket (USB 2.0, USB 3.2 Gen 1) for LTE/5G NR module with 2 x external dual nano-SIMs
