2-Channel 260-pin DDR4 SO-DMIM sockets up to 32GB/channel (64GB for two channels, non-ECC up to 2666 MHz), default 4GB + 4GB industrial grade memory
Video Output
Chipset Intel® UHD graphics 6301 x Waterproof VGA up to 1920 x 1200 @ 60Hz
Storage
2 x 2.5” SATA 3.0 external SSD/HDD (compatible with 15mm height), RAID 0/1 supported2 x mSATA 3.0 (BIOS selection, occupied mPCIe slot)
Expansion
1 x Full size mini-PCIe socket (USB 2.0 + PCIe 3.0/SATA 3.0 (BIOS selection))1 x Full size mini-PCIe socket (USB 2.0 + PCIe 3.0/SATA 3.0 (BIOS selection)), BOM optional full size mini-PCIe socket (USB 2.0) with 2 x external SIM1 x Full size mini-PCIe socket (USB 2.0), BOM optional M.2 Key B 3042 (USB 2.0 + USB 3.1 Gen2) with 2 x external SIM1 x M.2 Key B 3042/3050/3052 (USB 2.0 + USB 3.1 Gen2) with 2 x external SIM1 x M.2 Key B 3042/3050/3052 (USB 2.0 + USB 3.1 Gen2+ PCIe 3.0 (BOM optional)) with 2 x external SIM
GNSS and Onboard Sensor
1 x Default U-blox NEO-M8N GNSS module for GPS/Gloness/QZSS/ Galileo/BeidouOptional modules with dead reckoning availableTPM 2.0 by infineon SLB9665TT2 (BOM optional)G Sensor (3-axis, 10-bit resolution)
LAN
4 x Independent LAN, 10/100/1000 Mbps I210-IT GbE, PoE 802.3af/at, max. 60W1 x LAN, 10/100/1000 Mbps I219 support iAMT and WOL

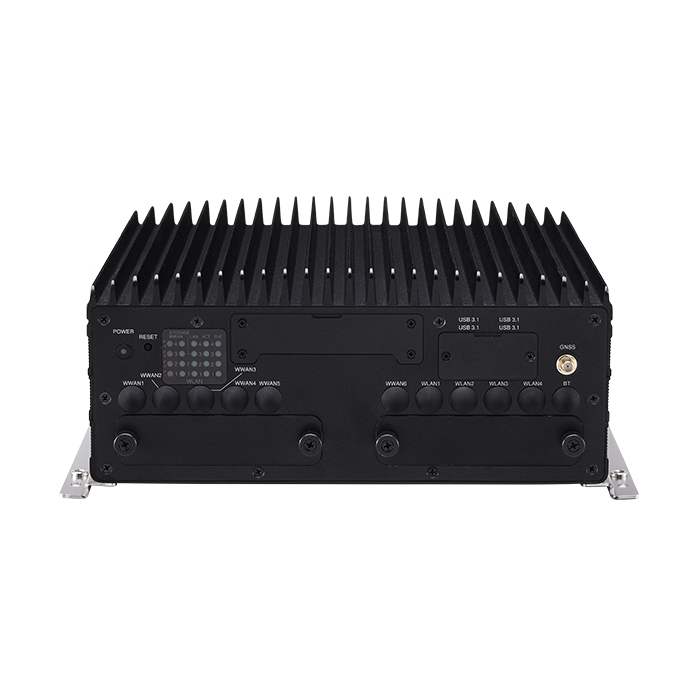

I/O Interface-Front
21 x LED indicators (including 4 x programmable LED)6 x Externally accessible SIM card sockets (4 x WWAN + 8 x SIM, BOM optional) w/ cover1 x Reset button2 x 2.5” external SSD/HDD12 x SMA antenna hole3 x USB 3.1 Gen1 type A (5V/1A) w/ cover1 x USB 3.1 Gen2 type A (5V/1A) w/ cover
I/O Interface-Rear
4 x M12 X-coded PoE 802.3af/at, max. 60W1 x M12 X-coded LAN port, 10/100/1000 Mbps1 x Waterproof DC input connector with ignition, male type1 x M8 for 1 x Mic-in, 1 x Line-out2 x Waterproof DB9 (COM1/COM2) for full RS232 (isolation)1 x Waterproof DB9 (COM3) for full RS232/422/485 (isolation)1 x M12 A-coded 10pin (DIO) - 4 x DI and 4 x DO (isolation) - Power in for DIO isolation, 9~36VDC1 x M12 A-coded for 2 x USB 2.01 x VGA
Power Management & Software Support
Pwer input 24~110 VDC w/ isolationReverse protection, OCP & UVPSelectable boot-up & shut-down voltage for low power protection by softwareSetting 8-level power on/off delay time by software10~255 seconds WDT support, setup by softwareSDK (Windows/Linux) including utility and sample code
Operating System
Windows 10Linux
Dimensions
260 x 256 x 110 (W x D x H) (mm)
Weight
6.5kg
Environment
Operating temperatures - EN 50155, class OT4 (-40~70°C), 85°C for 10 minutes (w/ 35W TDP CPU, industrial SSD) with air flowStorage temperatures: -40°C~80°CRelative humidity: 90% (non-condensing)Vibration (random) - 2g@5~500 Hz (in operation, SSD)Vibration (SSD) - Operating: MIL-STD-810G, Method 514.6, Category 4, common carrier US highway truck vibration exposure - Storage: MIL-STD-810G, Method 514.6, Category 24, minimum integrity testShock (SSD) - Operating: MIL-STD-810G, Method 516.6, Procedure I, functional shock=40g - Non-operating: MIL-STD-810G, Method 516.6, Procedure V, crash hazard shock test=75g
Certifications
CE approvalFCC Class AEN 50155: 2017 - Ambient temperature EN 50155, class OT4 (-40~70°C), 85°C for 10 minutes - Shock and vibration IEC 61373 class B - Interruptions of voltage supply class S2 (S2: 36~110VDC@70% load) - Supply change over class C1, C2 - EMC EN 50121-3-2: 2016 - Protective coating class PC1 (PC2, by request)
