NK55G-EU300ME 55” 3000nit High Brightness UHD Open Kit Signage Monitor
NK55G-EU300ME 55” 3000nit High Brightness UHD Open Kit Signage Monitor
-
Signage Size
-
55"

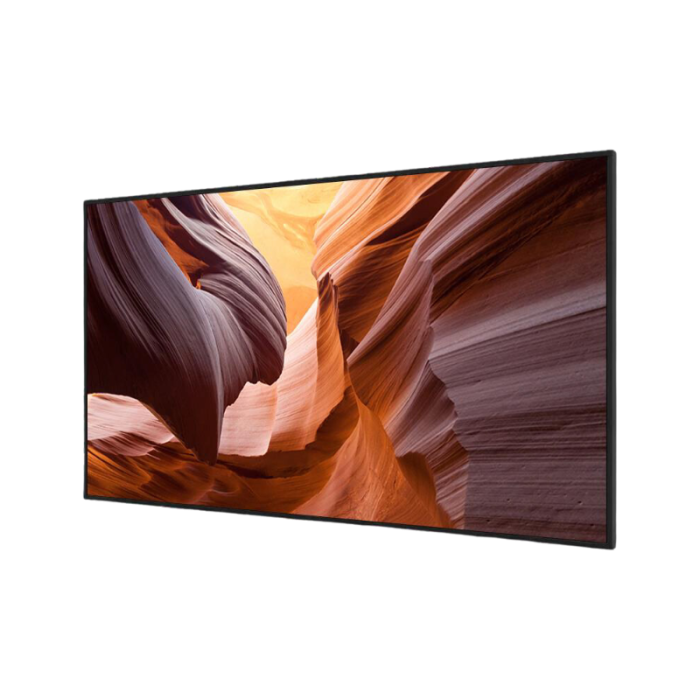

55-inch UHD Signage Monitor with 3000nit brightness and 24/7 operation
Key Features:
- 105 Hi Tni ADS LCD Technology
- UHD Resolution
- 3000nit High Brightness
- QWP Front Polarizer
- Multiple External Input Interfaces
- Brightness Auto Adjustment with Ambient Light Sensor
- Support Remote Sensing & Control
- Open Kit Design for Enclosure Customization
More Information
|
Brand |
BOE |
|
Specifications |
|
Display
|
|
|
Model
|
NK55G-EU300ME
|
|
Screen Size (Diagonal)
|
55 inch
|
|
Native Resolution
|
3840 × 2160 (UHD)
|
|
Refresh Rate
|
120Hz (Overclocked)
|
|
Brightness
|
3000 cd/m² (Typ.)
|
|
Contrast Ratio
|
1200:1
|
|
Viewing Angle
|
178° (H) / 178° (V)
|
|
Display Color
|
1.07 Billion
|
|
Color Gamut
|
68%
|
|
Response Time
|
8ms
|
|
Installation Orientation
|
Landscape & Portrait
|
|
Operating Time
|
7 × 24
|
|
LC Tni
|
105℃
|
|
Lifetime (Light Source)
|
50,000 hours
|
|
Sound
|
|
|
Built-in Speakers
|
8W × 2 (8Ω)
|
|
LCD Drive Board
|
|
|
Input
|
HDMI × 2, DP × 1
|
|
Output
|
Audio × 1
|
|
External Control
|
RS232 × 1 (UART, for RSC Board)
|
|
Remote Sensing & Control Board
|
|
|
Monitoring
|
LCD Drive Board, Fan Speed, Temperature, Humidity, Power, Sensor & Relay
|
|
Control
|
LCD Drive Board, Power, Relay
|
|
Networks
|
LAN × 1
|
|
RTC
|
Yes
|
|
USB Port
|
1 (Firmware Update)
|
|
Physical Specifications
|
|
|
Color
|
Black (Frame/AD Box), Aluminum Silver (Back)
|
|
Set Dimensions
|
1242.5 × 713.5 × 84 mm
|
|
Set Weight
|
33 kg
|
|
Packaged Dimensions
|
1347 × 210 × 818 mm
|
|
Packaged Weight
|
40 kg
|
|
Mounting Interface
|
400 × 200
|
|
Power
|
|
|
Power Supply
|
AC 200~240V @ 50/60Hz
|
|
Power Consumption
|
≤ 420W
|
|
Environment
|
|
|
Operating Temperature
|
0℃ ~ 40℃
|
|
Operating Humidity
|
10% ~ 80% RH
|
|
Storage Temperature
|
-20℃ ~ 60℃
|
|
Storage Humidity
|
10% ~ 80% RH
|
|
Sensors
|
|
|
On-board Sensors
|
Temperature & Humidity × 1, G-Sensor × 1, DC Voltage × 3, Relay × 6
|
|
External Sensors
|
Brightness Sensor (Ambient Light × 1 / BLU × 1), Temperature Sensors (Air Inlet × 1 / LCM Top × 1), Water Sensor × 1, Door-Open Sensor × 1, G-Sensor × 1, Smart Electric Meter-AC × 1
|
|
