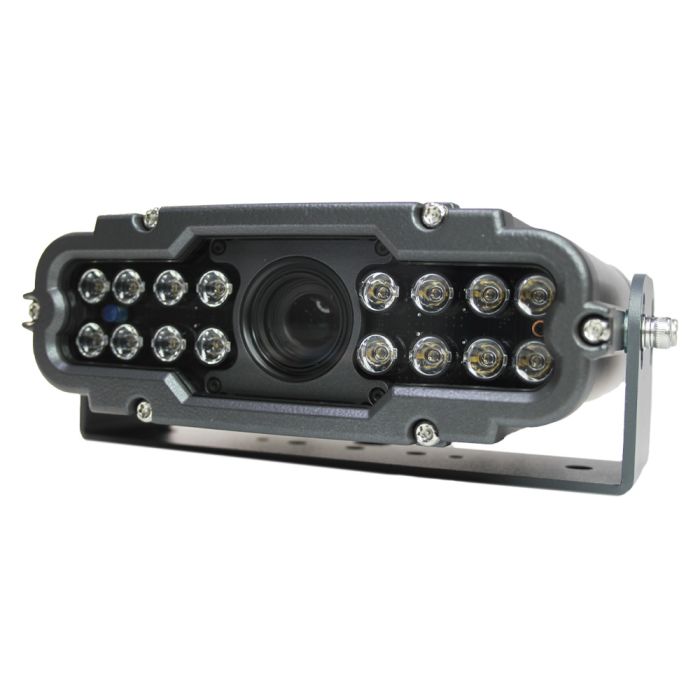

GPCL-1240MA4GN Motorized POE Shutter LPR Camera

SKU: GPCL-1240MA4GN

IP / Motorized Lens / Global Shutter / Outdoor / IP68 / 3.1MP

Datasheet

Description

The GPCL-1240MA4GN is an outdoor infrared all-in-one motorised camera with a 3.19MP Global Shutter CMOS image sensor. It excels in low light conditions because it has the highest sensitivity sensor. Less storage space and network bandwidth are needed because it supports simultaneous H.265, H.264, and MJPEG video compression. Additionally, it provides 3MP (2048x1536) high-quality video images in progressive mode at 30 frames per second.

Key Features:

Ambarella platform –Backdoor Issue free
1/1.8” 3.19MP Sony IMX265 Global Shutter CMOS sensor
Strobe-driven power LED (16EA)
12~40mm Motorized Auto-Focus IR correction Lens
TripleStream (H.265, H.264, M-JPEG/JPEG)
Max. 30fps @ 3MP (2048x1536)
Night Color level adjustment (B/W & 5 steps)
Shutter limit (Min./Max.) setting
- Good for the better nighttime moving object image
- To avoid saturation under strong backlight or IR reflection
OnVIF (Profile S) standard support
IP68 Grade Waterproof, Nitrogen filled.

Download

3 Axis Z Bracket

Camera Bracket Assembly Guide

CGI Commands

Datasheet

Drawing

IP Manager Tool

User Guide

More Information

Brand

GPI Korea

Specifications

CAMERA
System	Ambarella 32bit Embedded Linux 256Mbyte SDRAM, 128Mbyte NAND Flash
Image Sensor	1/1.8” 3.19MP Sony IMX265 Global Shutter CMOS
Lens	12~40mm Motorized Auto-Focus Lens
Number of Effective Pixels	2064(H) x1554 (V) approx. 3.18M pixels
Video Streaming	Triple Streaming, selectable: H.265/H.264/MJPEG, Framerate, Bitrate, ACBR/AVBR/VBR/CBR, GOP
Compression	H.265, H.264, M-JPEG
Resolution	30fps @ 2048x1536, 1920x1080, 1280x1024, 1280x720
Max. Frame Rate	30fps, 25fps
Smart Video	ROI (RegionofInterest)
Frequency Control	60hz, 50hz
Independent Image Mode	Default/Night/DI/Motion independent mode set
Motion Detection	On (144 block selection), Off
Day & Night Control	Colour, B&W, Auto (Night B/W, Night colour 5 steps)
White Balance	Auto/10 customized mode
Image Filter	Brightness/Contrast/Hue/Saturation/Sharpness
DNR	DNR 0~11
WDR Weight	Low/Middle/High
Manual Shutter Control	1/30 ~ 1/32,000 Min/Max setting
Sense Up Level	OFF/1/2threesteps
Image Direction	VerticalFlip/HorizontalFlip/CorridorMode
NETWORK
Interface	RJ45 Ethernet 10/100Mbps
Supported Protocols	HTTP, RTP/RTSP (Uni/Multicast), TCP/IP (v4/v6), UDP, FTP, Telnet, HTTPS, RARP, PPPoE, SNMP, PAP, CHAP, DHCP, NTP, SMTP client, uPnP&etc
Programming Interface	ONVIF (Profile S)
Viewer	Browsers (Chrome, Edge, etc.), VLC…
Security	IP Filtering, HTTPS, Encrypted & Basic Authentication, Management White List
OPERATION ENVIRONMENTS
Operating Humidity	0~80% (non-condensing)
Operating Temperature	-30℃~+70℃
Case	Metal (AL)
IR Led	16 ea
IR Ledstrobe out (External)	Optional [Active High (TTL3.3V)]
Power	PoE (Standard 48V) or DC12V
Dimension	166mm(W) x 103.9mm(D) x 52mm(H)
