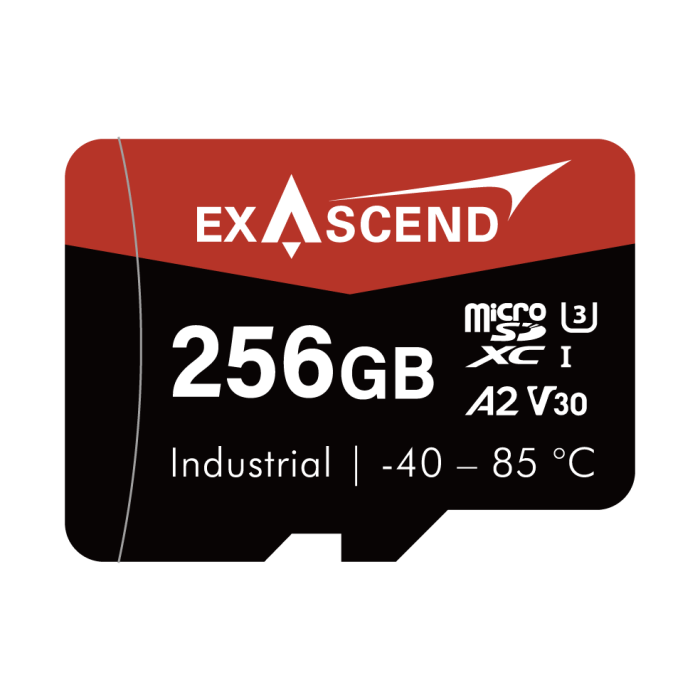

microSD300 Series Industrial 256GB microSD Card (-40~85°C)
The microSD300 series offers a blend of high performance, durability, and compactness.
Key Features:
- Up to 90 MB/s read and 80 MB/s write speeds
- Capacities: 8 GB to 256 GB (8GB and 16GB in pSLC mode)
- Speed class: V30/U3/C10, performance class: A2
- Wide temperature-support: -40°C to 85°C
- Unwavering industrial-grade reliability and endurance, with a mean time to failure of 2 million hours
- IP67 rating for full protection against harmful particles, dust, and water
- Manufactured on IATF16949-certified production line
Description
By utilizing industrial-grade hardware and Exascend’s proprietary firmware design, the microSD300 series offers an optimal blend of sustained high performance, durability, and compactness. Using 176-layer 3D TLC NAND flash technology, the microSD300 features advanced LDPC ECC, wear levelling, IOPS optimization, secure erase, and pSLC (8 GB and 16 GB) technologies.
More Information
| Brand | Exascend | ||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Specifications |
|
||||||||||||||||||||||||||||||||||||||||||
Ordering Information
|
Image |
Model Name |
Form factor |
Flash type |
Capacity (GB) |
Max. seq. read (MB/s) |
Max. seq. write (MB/s) |
TBW (max.) |
|---|---|---|---|---|---|---|---|
|
|
EX256GUSDV30-IDE |
microSD |
3D TLC |
256 |
90 |
80 |
610 |
|
|
EX128GUSDV30-IDE |
microSD |
3D TLC |
128 |
90 |
80 |
300 |
|
|
EX64GUSDV30-IDE |
microSD |
3D TLC |
64 |
90 |
80 |
145 |
|
|
EX32GUSDV30-IDE |
microSD |
3D TLC |
32 |
90 |
80 |
73 |
|
|
EX16GUSDV30-PIDE |
microSD |
pSLC |
16 |
90 |
80 |
320 |
|
|
EX8GUSDV30-PIDE |
microSD |
pSLC |
8 |
90 |
80 |
155 |
