Marigold-I
Description

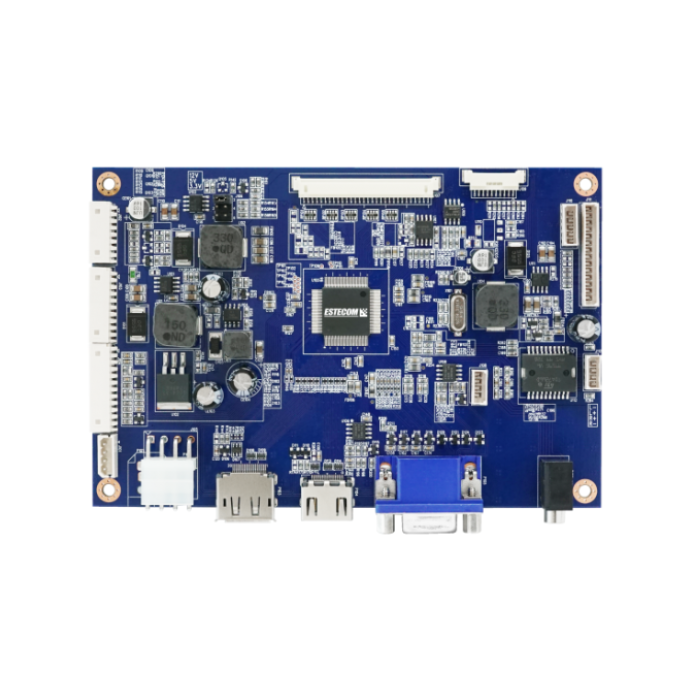

Marigold-I is an advanced Industrial grade TFT-LCD Monitor Control Board. Supporting Frame Buffer function. This design Enables a full conventional CRT monitor and/or video replacement with a large size Active Matrix LCD module. Marigold-D can support UART communication through Displayport cable. It is suitable for video resolution up to UXGA(1920x1200 @ 60Hz) in all video modes, the full display area of the module is used. The design is implemented as a single printed circuit
Download
More Information
| Specifications |
Board Dimension 150x 120mm Input Signal RGB , HDMI, Displayport Output Signal 2CH LVDS Maximum Resolution 1920x 1200 @60Hz Local Control OSD (On Screen Display) and IR Remote Control (UART) RS-232, Displayport AUX channel. Operating Temperature -20°C ~70°C Humidity 8% ~ 90% Input Power Voltage +24VDC or +12VDC Storage Temperature -30°C ~80°C
|
|---|
