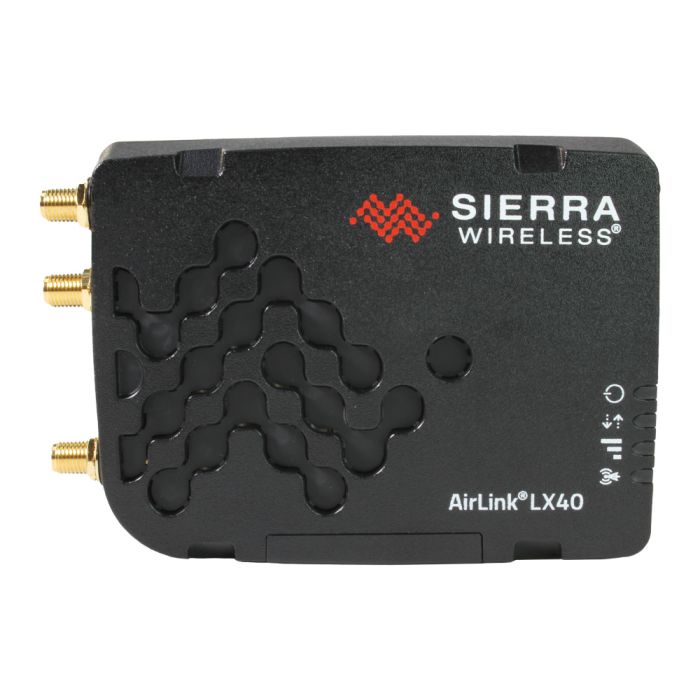

AirLink LX40 CAT 4 LTE Router (1104183)
In stock
SKU:
LX40
Brand: Sierra Wireless
The AirLink LX40 is a small LTE router that provides "out-of-the-box" LTE and Wi-Fi connectivity and is easy to set up. In fixed, protected environments, the LX40 supports security, digital signage, and IoT applications.
Enquire Now
Enquire about this product
|
North America
|
EMEA
|
Australia & New Zealand
|
|---|
|
CELLULAR
|
|||
|---|---|---|---|
|
Peak D/L
|
Up to 150 Mbps, Cat-4 (WP7610)
|
Up to 150 Mbps, Cat-4 (WP7607)
|
Up to 150 Mbps, Cat-4 (WP7609)
|
|
Peak U/L
|
Up to 50 Mbps
|
Up to 50 Mbps
|
Up to 50 Mbps
|
|
4G LTE
|
|||
|---|---|---|---|
|
Frequency Bands
|
B1, B4, B5, B12, B13, B14, B17, B66
|
B1, B3, B7, B8, B20, B28
|
B1, B3, B5, B7, B8, B28
|
|
3G WCDMA/HSPA+
|
|||
|---|---|---|---|
|
Frequency Bands
|
B2, B4, B5
|
B1, B8
|
B1, B5, B8
|
|
2G GSM/GPRS
|
|
|---|---|
|
Frequency Bands
|
900, 1800
|
|
Approvals
|
|||
|---|---|---|---|
|
Regulatory
|
FCC, IC, PTCRB
|
GCF, CE
|
GCF, RCM
|
|
Carrier
|
AT&T, Verizon, T-Mobile
|
||
|
Part Numbers
|
|||
|---|---|---|---|
|
Part Numbers
|
1104579, 1104573 (WiFi)
|
1104181, 1104182 (Wi-Fi)
|
1104183, 1104184 (Wi-Fi)
|
|
HOST INTERFACES
|
|
|---|---|
|
1 Gigabit RJ-45 Ethernet Port (POE)
USB 2.0 Micro-B Connector 2 SMA antenna connectors (cellular, diversity) 1 RP SMA antenna connector (Wi-Fi) |
|
|
SECURITY
|
|
|---|---|
|
Remote Authentication (LDAP, RADIUS, TACACS+) DMZ
Inbound and Outbound Port filtering Inbound and Outbound Trusted IP MAC Address Filtering PCI compatible Secure Firmware Update |
|
|
WI-FI (OPTIONAL)
|
|
|---|---|
|
Dual Band 2.4/5GHz Wi-Fi
802.11 b/g/n/ac (Wave2 Client Mode) Support for 10 clients, WPA2 Enterprise Output power 16dBm per channel Access Point or Client Mode (Wi-Fi as WAN) Single SSID Support Captive Portal |
|
|
LAN (ETHERNET/USB)
|
|
|---|---|
|
DHCP Server
IP Passthrough VLAN Host Interface Watchdog PPPoE |
|
|
ENVIRONMENTAL
|
|
|---|---|
|
Operating Temperature
|
-20°C to +65°C / -4°F to +149°F (+60°C / +140°F when using PoE)
|
|
Storage Temperature
|
-40°C to +85°C / -40°F to +185°F
|
|
Humidity
|
90% RH @ 60°C
|
|
Military Spec MIL-STD-810G conformance to shock, vibration, thermal shock, and humidity
IP21 rated ingress protection |
|
|
POWER
|
|
|---|---|
|
Input/Operating Voltage
|
7 to 36 VDC
|
|
Power Modes
|
Low voltage disconnect to prevent battery drain
Built-in protection against voltage transients Power-over-Ethernet (PoE) powered device Ignition Sense with time delay shutdown |
|
INPUT/OUTPUT
|
|
|---|---|
|
Configurable I/O pin on power connector
|
|
|
NETWORK AND ROUTING
|
|
|---|---|
|
Network Address Translation (NAT) Reliable Static Route
Port Forwarding Dynamic DNS Policy Routing Verizon PNTM NEMO/DMNR IPV6 Gateway VRRP |
|
|
VPN
|
|
|---|---|
|
IPsec, GRE, and OpenVPN Client
Up to 5 concurrent tunnels Split Tunnel Dead Peer Detection (DPD) |
|
|
ROUTER MANAGEMENT INTERFACES
|
|
|---|---|
|
Local web user interface
AT Command Line Interface (Telnet/SSH) SNMP SMS Commands |
|
|
APPLICATION FRAMEWORK
|
|
|---|---|
|
ALEOS Application Framework (AAF)
LUA Scripting Language |
|
|
EVENTS ENGINE
|
|
|---|---|
|
Custom event triggers and reports
Configurable interface, no programming |
|
|
Event Types
|
Digital Input, Network Parameters, Data Usage, Timer, Power, Device Temperature and Voltage
|
|
Report Types
|
RAP, SMS, Email, SNMP Trap, TCP (Binary, XML, CSV)
|
|
Event Actions
|
Drive Relay Output
|
|
INDUSTRY CERTIFICATIONS
|
|
|---|---|
|
Safety
|
IECEE Certification Bodies Scheme (CB Scheme), UL 60950
|
|
Vehicle Usage
|
E-Mark (UN ECE Regulation 10.04), ISO7637-2, SAE J1455 (Shock, Vibration, Electrical)
|
|
Environments
|
RoHS2, REACH, WEEE
|
|
Public Safety
|
FirstNet®
|
|
SUPPORT AND WARRANTY
|
|
|---|---|
|
1 year standard warranty with up to 5 years extended warranty with current AirLink Complete subscription. Unrestricted critical firmware updates.
|
|
|
ACCESSORIES
|
|
|---|---|
|
In The Box
|
LX40, DC Power Cable and Quick Start Guide
|
|
Other Accessories (sold separately)
|
|
|
CONSTRUCTION
|
|
|---|---|
|
Polycarbonate housings that meet MIL-810/IP21 environmental standards.
|
|
|
DIMENSIONS
|
|
|---|---|
|
103 mm (111 mm including connectors) x 79 mm x 25 mm 4.1 in (4.4 in including connectors) x 3.1 in x 1.0 in
Weight: 250g |
|
*For carrier specific band support please refer to the hardware user guide.
