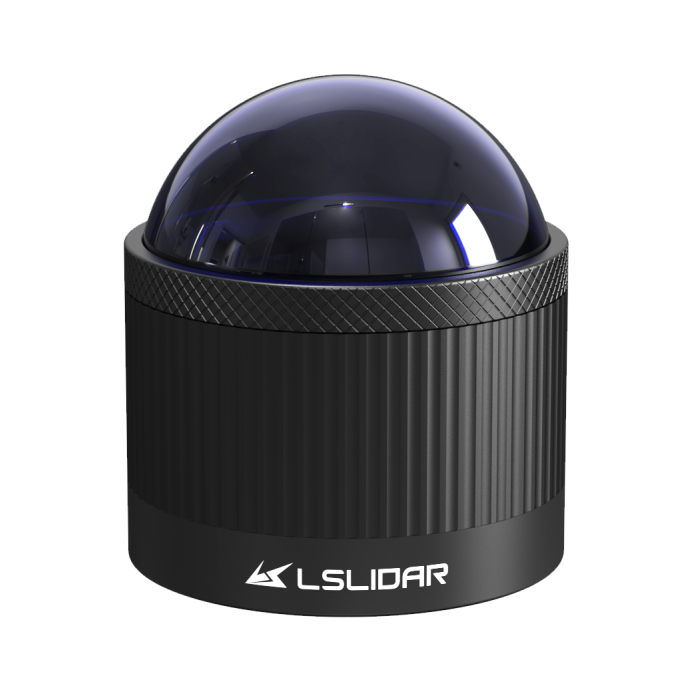

LSLiDAR CH16R/CH32R Ultra-Wide Angle Blind Spot LiDAR
High-Precision Detection with 32-Line Laser for High-Speed 360°*90° 3D Scanning, Ideal for Close-Range Low Blind Zone Applications
Key Features:
- 32-channel ultra-wide-angle LiDAR for blind spot detection
- 360° × 90° field of view for minimal blind zones
- Up to 120m detection range for short to mid-range sensing
- High accuracy up to ±1cm for precise object detection
- Dual return support up to 1.28 million points per second
- Time-of-Flight technology for reliable 3D environmental mapping
- IP67 rated
Description
Product Overview
The LSLiDAR CH16R and CH32R Ultra Wide Angle Blind Spot LiDAR sensors are designed for close range perception and safety critical detection in dynamic environments. Featuring a 16 or 32 channel laser configuration, they deliver dense 3D point cloud data with full 360 degree horizontal coverage and extended vertical field of view. Built for applications where blind spots must be minimised, these sensors provide reliable environmental awareness for autonomous systems, robotics, transport safety and industrial automation.
Key Features
Ultra Wide Field of View
-
Full 360-degree horizontal scanning for complete environmental coverage
-
Vertical field of view up to 90 degrees for enhanced blind spot detection
-
Designed to reduce near-field detection gaps and improve situational awareness
-
Ideal for applications requiring low blind zones and close-range visibility
Flexible Channel Options
-
Available in 16-channel and 32-channel configurations to suit different requirements
-
CH16R provides efficient coverage for standard applications
-
CH32R delivers higher data density for more detailed perception
-
Enables scalability based on accuracy and performance needs
High Resolution 3D Detection
-
Generates high-density point cloud data for accurate object detection and tracking
-
Dual return capability for improved detection in complex environments
-
Adjustable scan frequency from 5 Hz to 20 Hz for real-time responsiveness
-
Suitable for mapping, obstacle detection and sensor fusion systems
Accurate and Reliable Measurement
-
Detection range up to 120 metres, depending on reflectivity
-
High precision with centimetre-level accuracy
-
Time of flight measurement ensures consistent distance calculation
-
Reliable performance across different surfaces and lighting conditions
Rugged Industrial Design
-
IP67-rated enclosure for protection against dust and water
-
Operating temperature range from -20 °C to 60 °C
-
Resistant to vibration and shock for mobile and industrial use
-
Designed for continuous operation in demanding environments
Applications and Use Cases
The CH16R and CH32R are suitable for:
-
Autonomous vehicles and ADAS systems
-
Robotics and automated guided vehicles
-
Blind spot detection and safety monitoring
-
Intelligent transport and smart mobility
-
Industrial automation and security systems
More Information
| Brand | LSLIDAR | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Specifications |
|
Ordering Information
CH32R
32-channel Mechanical LiDAR
CH32R PoE
32-channel Mechanical LiDAR with PoE
CH16R
16-channel Mechanical LiDAR
