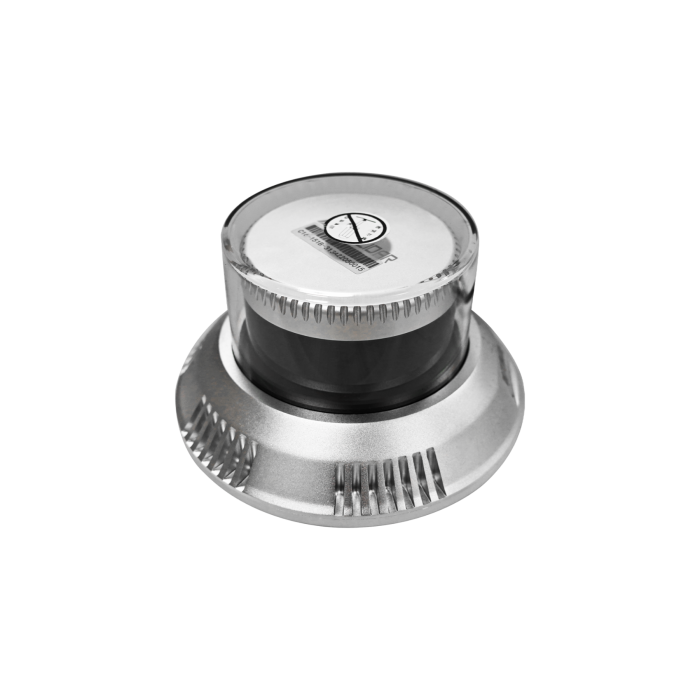

LSLiDAR C16E Explosion-Proof/Flameproof LiDAR

Product Overview

The LSLiDAR C16E is a specialised multi-line mechanical LiDAR designed for hazardous environments where explosive gases or dust may be present. Available in both explosion-proof and flameproof variants, it enables safe and reliable 3D perception in industrial zones such as mining, oil and gas and chemical processing. With a 16-channel laser configuration, full 360-degree scanning and robust enclosure design, the C16E provides accurate environmental awareness while meeting strict safety requirements for operation in high-risk areas.

Key Features

Hazardous Area Certified Design

• Available in explosion-proof and flameproof versions for different hazardous environments

• Explosion-proof model designed for underground or high-risk industrial zones

• Flameproof model suited to environments with flammable gases and vapours

• Certified enclosure design prevents ignition risks during operation

3D Environmental Perception

• 16-channel laser configuration for reliable 3D point cloud generation

• Full 360-degree horizontal field of view for complete area coverage

• Vertical field of view around ±15 degrees for accurate spatial awareness

• Designed to eliminate blind spots in industrial monitoring applications

High Accuracy and Detection Range

• Detection range up to approximately 150 metres, depending on reflectivity

• Measurement accuracy around ±3 cm for consistent distance calculation

• Time-of-flight technology ensures stable and repeatable measurements

• Suitable for obstacle detection, safety monitoring and mapping

High Speed Data Output

• Generates up to 640,000 points per second in dual return mode

• Adjustable scan frequency from 5 Hz to 20 Hz for real-time responsiveness

• Dual return capability improves detection in complex environments

• Supports detailed analysis of moving objects and structures

Rugged Industrial Construction

• IP67-rated enclosure for protection against dust and water

• Designed to withstand vibration and shock in harsh environments

• Wide operating temperature range for industrial deployments

• Built for continuous operation in demanding conditions

Integration and Connectivity

• Ethernet communication interface for reliable data transmission

• Wide DC input range suitable for industrial systems

• Supports integration into automation, safety and monitoring platforms

• Compatible with industrial control and perception systems

Applications and Use Cases

The C16E is suitable for:

• Mining and underground operations

• Oil and gas facilities

• Chemical plants and hazardous industrial sites

• Industrial automation and safety monitoring

• Perimeter detection and infrastructure protection
