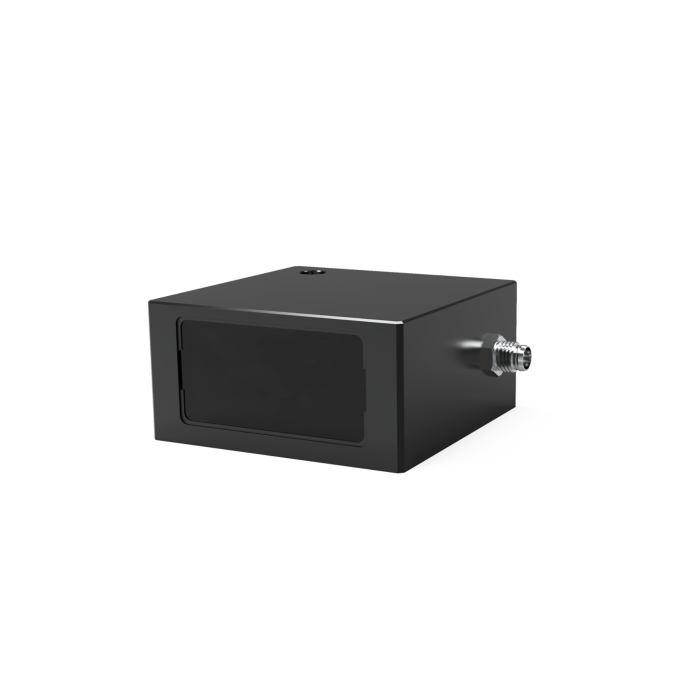

LS72B Middle-Range Laser Distance Sensor

Product Overview

The LSLiDAR LS72B is a mid-range single-point laser distance sensor designed for precise distance measurement, obstacle avoidance and volume measurement applications. Using a 905 nm laser and fixed-angle distance detection, it provides a detection range from 0.05 m up to 150 m with ±3 cm accuracy. With an adjustable measurement frequency from 10 to 200 Hz and a compact 230 g design, the LS72B is well suited to eVTOL, drones, service robots, AGVs, AMRs and industrial material measurement systems.

Key Features

Up to 150m Detection Range

• Detection range from 0.05 m to 150 m at 10% reflectivity

• Designed for mid-range object and surface detection

• Suitable for indoor and outdoor distance measurement applications

• Supports obstacle avoidance and positioning applications

Precise Distance Measurement

• ±3 cm distance accuracy

• Fixed-angle laser distance detection

• Suitable for applications requiring consistent distance measurements

• Supports precise monitoring of objects, surfaces and material levels

Adjustable Measurement Frequency

• Measurement frequency from 10 to 200 Hz

• Supports different application speed and response requirements

• Suitable for moving platforms and dynamic obstacle detection

• Enables faster updates for robotics and autonomous systems

905nm Laser Technology

• Operates at a 905 nm wavelength

• Designed for reliable optical distance sensing

• Compact single-point sensing architecture

• Suitable for integration into mobile and fixed equipment

Compact and Lightweight Design

• Compact 70 × 70 × 30 mm enclosure

• Lightweight 230 g construction

• Suitable for applications where installation space and payload are limited

• Easy to integrate into robots, drones and autonomous platforms

Distance and Volume Measurement

• Supports precise distance monitoring

• Can be used for volume measurement applications

• Suitable for measuring material levels in grain silos

• Supports coal pile measurement and other bulk material applications

Applications and Use Cases

The LS72B is suitable for:

• eVTOL obstacle avoidance

• Drones and UAVs

• Indoor service robots

• AGV and AMR systems

• Grain silo measurement

• Coal pile volume measurement

• Industrial distance sensing

• Autonomous equipment and robotics
