LPM2-7-27[-X] Ultra Low Profile MiMo IOT Antenna
Panorama LPM2-7-27[-X] Ultra Low Profile MiMo IOT Antenna IP69K 4G/LTE 2x2 MiMo
Key Features:
- Offers ultra-low-profile MiMo 4G/LTE coverage.
- Weatherproof housing contains two antenna elements with effective isolation.
- Designed for panel mounting, it provides plug-and-play connectivity with various routers and modems.
- Integrated flame retardant RG174 cables and SMA plug connectors.
- Supplied in black flame retardant LEXAN EXL9330 plastic as standard.
![LPM2-7-27[-X] Ultra Low Profile MiMo IOT Antenna](https://www.tekdisllc.com/media/amasty/amlabel/Copy_of_Recommended_for_New.png "LPM2-7-27[-X] Ultra Low Profile MiMo IOT Antenna")

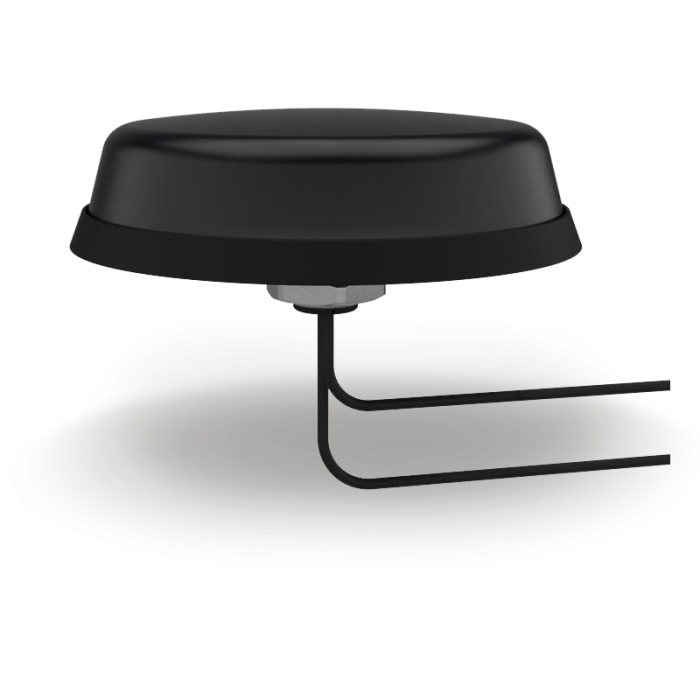

The LPM2-7-27 range is created to deliver MiMo 4G/LTE coverage with an extremely low-profile design. It comes in a compact and sturdy weatherproof housing that houses two antenna elements with effective isolation and a low correlation coefficient, spanning 698-960/1427-2700MHz frequencies.
This panel-mounted antenna is supplied with integrated flame retardant RG174 cables (UN ECE 118.03 compliant) and SMA plug connectors, ensuring easy plug-and-play connectivity with various routers and modems. The standard model is made from black flame retardant LEXAN EXL9330 plastic.
It is important to install the antenna on a non-conductive ground plane, as its performance will be adversely affected if mounted on a metallic or conductive surface.
Key Features:
- Offers ultra-low-profile MiMo 4G/LTE coverage.
- Weatherproof housing contains two antenna elements with effective isolation.
- Designed for panel mounting, it provides plug-and-play connectivity with various routers and modems.
- Integrated flame retardant RG174 cables and SMA plug connectors.
- Supplied in black flame retardant LEXAN EXL9330 plastic as standard.
| Electrical Data | |
| 4G LTE Elements (MiMo) | 2x2 |
| Frequency Range (MHz) | 698-960/1427-2700 |
| Typical VSWR* | <2.5:1 |
| Typical Isolation* | >15dB |
| Pattern | Omni-directional |
| Nominal Impedance | 50Ω |
| Max input power (W) | 5 |
| Mechanical Data | |
| Dimensions (mm) | |
| Diameter | 123 (4.84”) |
| Height | 32 (1.25”) |
| Operating Temp (°C) | -40° / +80°C (-40° / 176°F) |
| Material | LEXAN EXL 9330 Plastic |
| Colour | Black |
| Typical Weight (g) | 225 |
| Ingress Protection** | IP69K |
| Vandal Protection | IK10 |
| Mounting Data | |
| Fixing | Panel Mount - 18mm (3/4”) |
| Cable Data | |
| 4G / LTE | |
| Cable Type | RG174 FR (meets UN ECE R118.03) |
| Diameter (mm) | 2.8 (0.1”) |
| Length (m) | 2(6.5’) |
| Termination | 2x SMA (m) |
