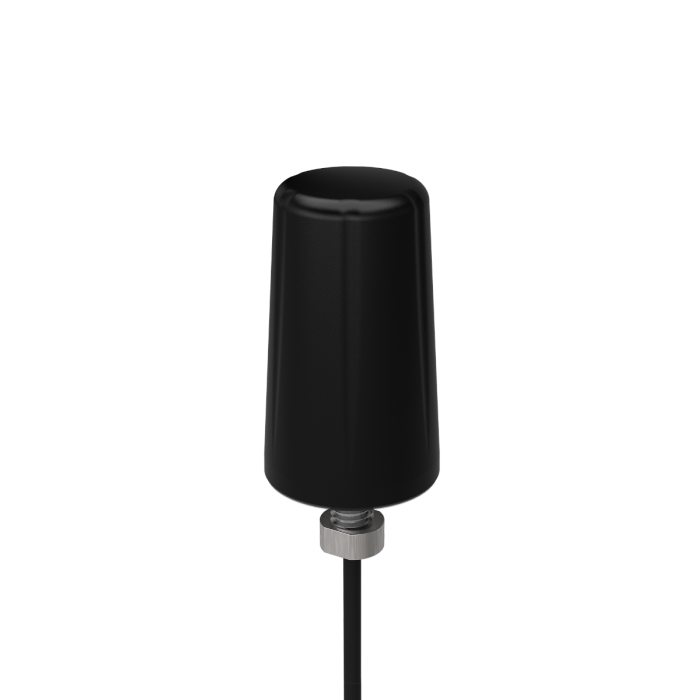

LPBSC-6-60 IP68 4G/5G Low Profile Antenna

The LPBSC-6-60-[X] is an omnidirectional broadband antenna that operates across a wide frequency range of 617–960 MHz and 1427–6000 MHz. It is specifically engineered for deployment in harsh, flood-prone environments, making it ideal for applications such as sewer monitoring and water metering.

The antenna supports wall, mast, or panel mounting, either using a customer-supplied bracket or directly onto a device or enclosure. Its exposed metal components are constructed from 316 stainless steel, offering excellent resistance to corrosion.

Thanks to its omnidirectional radiation pattern, the antenna can be easily installed in any orientation without the need for directional alignment.

The LPBSC-6-60-[X] comes with an integrated ultra-low-loss FR CS29 coaxial cable in various lengths. The cable is terminated with a specialised SMA plug designed to prevent water ingress by sealing the connection and stopping moisture from wicking up the cable during submersion.

When properly installed with the SMA plug fully connected and mounted on a bracket, the antenna meets IP68 protection standards (submersible up to 5 meters for 7 days).
