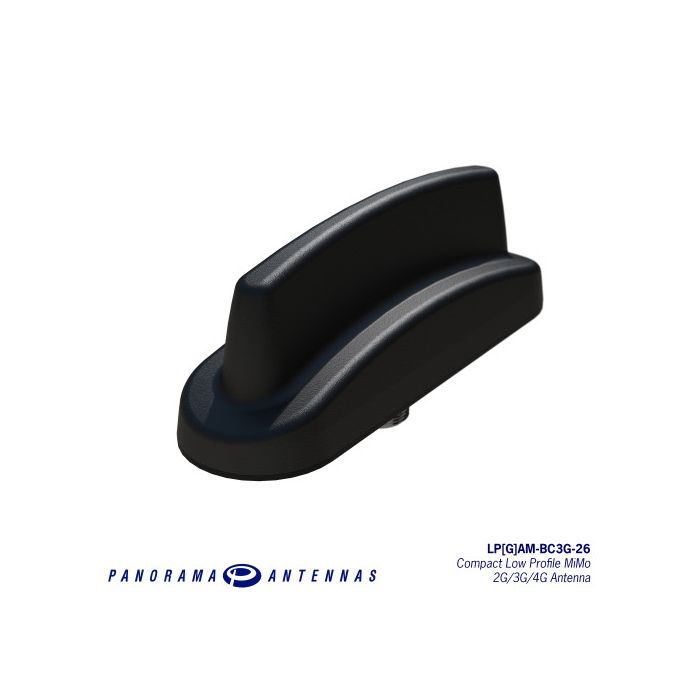

LP[G]AM-BC3G-26 Compact Low Profile MiMo 2G/3G/4G Antenna

The weatherproof, compact, low-profile housing houses two antenna elements with effective isolation and correlation that cover all current global cellular and LTE bands in the frequency ranges 698-960/1710-3800MHz. For applications that require position or timing, the LG version includes an active GPS/GNSS/Galileo/Beidou antenna.

With the single-hole mounting bush and acrylic adhesive sealing pad, the antenna can be installed on a non-conductive panel if necessary* and provides easy, quick, secure, and weatherproof installation. The antenna, which comes with an integrated 1m (3.3') or 3m (10') cable and SMA plug connectors, will provide plug-and-play connectivity with a variety of terminals.

Key Features:

• Compact low-profile MiMo LTE antenna,
• High performance in a distinctive design,
• Optional GNSS version available
• Covers all 2G/3G/4G/5G LTE cellular bands,
• Weatherproof design,
• Single-hole mount with a small footprint
• Provides MiMo LTE capability in a compact antenna,
• Easy to install with integrated cables,
• Can perform on or off a conductive surface
