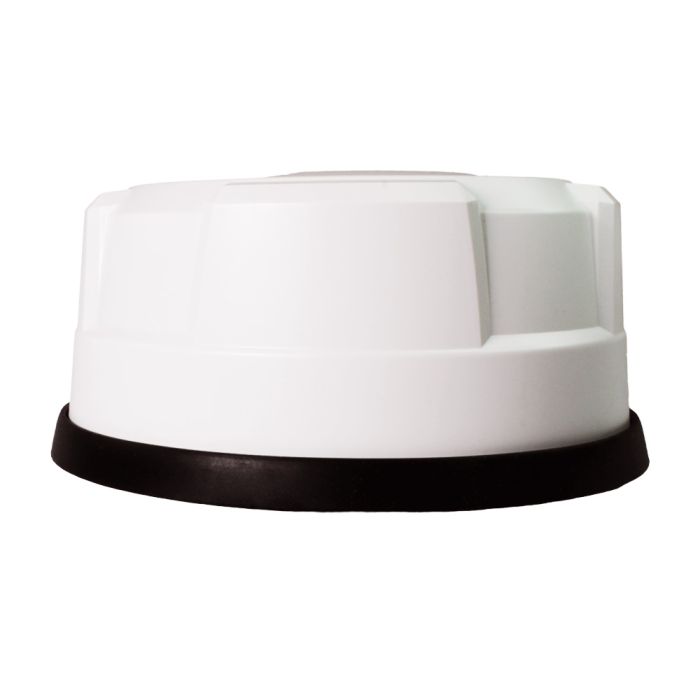

'MAKO' 4x4-6×6 MiMo 4G/5G Dome Antenna

The L[G]M[X]M4[X]M4[X]-6-60[-24-58] range was created to offer 4x4 Performance for 4G/5G MiMo at 617-960/1710-6000MHz in a sturdy low profile design. Due to the platform's adaptability, the primary components can be paired with GPS/GNSS, up to 6x6 MiMo WiFi 2.4/5.0GHz, or 4x4 WiFi 6E 2.4/4.9-7.2GHz.

The antenna can be put on a conductive or non-conductive panel and is intended to be panel mounted. The antenna is appropriate for a variety of situations and applications because it comes with integrated flame retardant RG174 cables (compliant with UN ECE R118 and EN45545-2) and a halogen-free flame retardant radome.

The inbuilt GPS/GNSS module in the LGM versions supports GPS, Glonass, Galileo, QZSS, and Compass with a 26dB LNA gain. To reduce potential in-band interference, this GPS module has sophisticated LTE B13/14 filtering. The antenna is offered with a black or white radome that complies with IP69K for Ingress protection and IK10 for vandal resistance.

Key Features:

• Designed for the latest generation LTE Cat 18/20 routers and devices
• Low profile antenna with up to 11 functions in 1
• 4x4 MiMo 4G/5G LTE cellular, Optional GPS/GNSS & optional MiMo 2.4/7.2GHz in one housing
• Kits with extension cables available for a range of LTE routers
