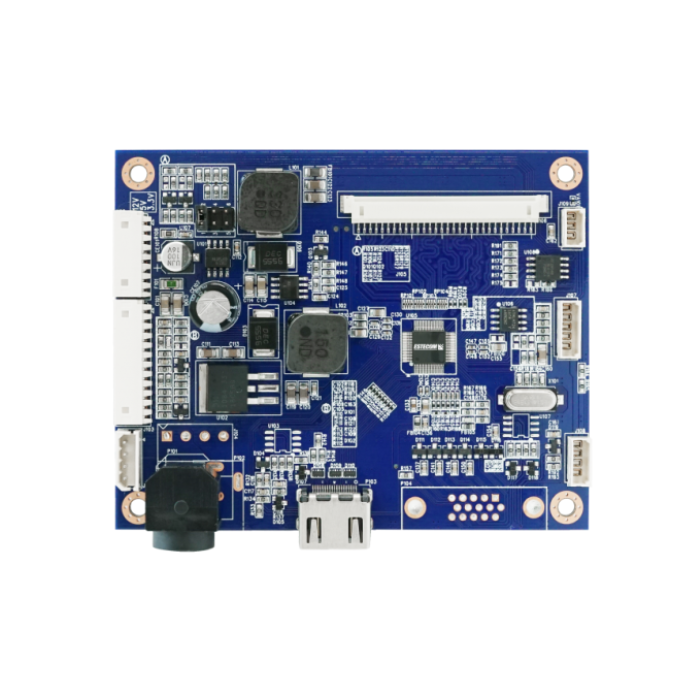

ESTECOM IRIS LCD Controller
Description
IRIS is an advanced TFT-LCD Monitor Control Board. This design Enables a full conventional CRT monitor and/or video replacement with a large size Active Matrix LCD module. It is suitable for video resolution up to WUXGA(1920x1200 @ 60Hz) in all video modes, the full display area of the module is used. The design is implemented as a single printed circuit board.
Download
More Information
| Brand | Estecom |
|---|---|
| Specifications |
Board Dimension 100x80 mm Input Signal HDMI , RGB(TBD) Output Signal 2CH LVDS Maximum Resolution 1920x 1200 @60Hz Local Control OSD (On Screen Display) and IR Remote Control (UART) RS-232 support Operating Temperature -20°C ~70°C Humidity 8% ~ 90% Input Power Voltage +24VDC or +12VDC Storage Temperature -30°C ~80°C |
