IPES-5416T-16

In stock
SKU
IPES-5416T-16
Brand: Lantech

Model Code: IPES-5416T-16

- EN50155/61373/45545-2 certified
- IEEE802.3at/af up to 30W per port; PoE management incl. detection and scheduling
- Optional 24V input boost to 48V output for IEEE802.3at/af max.120W

Enquire Now
Enquire about this product:

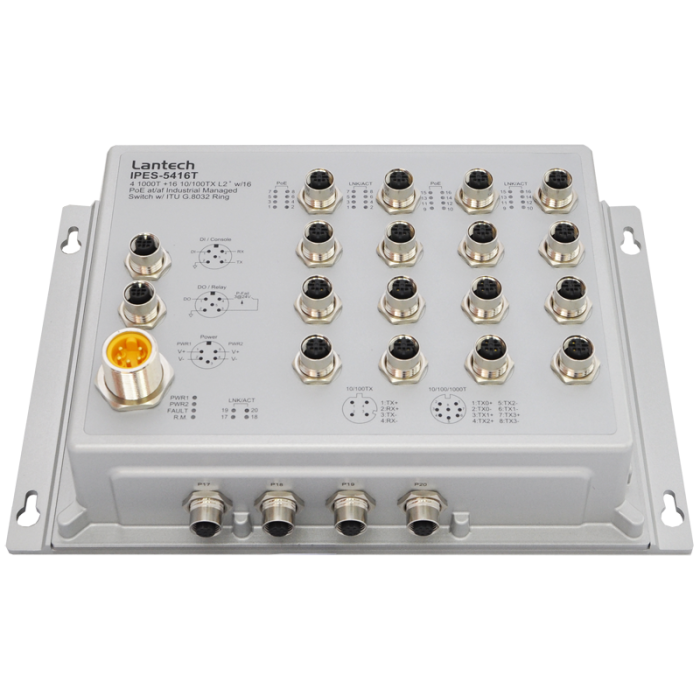

main product photo
We build to order

Standards

IEEE 802.3 10Base-T Ethernet
IEEE 802.3u 100Base-TX
IEEE802.3z Gigabit fiber
IEEE802.3x Flow Control and Back Pressure
IEEE802.3ad Port trunk with LACP
IEEE802.1d Spanning Tree
IEEE802.1w Rapid Spanning Tree
IEEE802.1s Multiple Spanning Tree
IEEE 802.3ad Link Aggregation Control Protocol (LACP)
IEEE 802.1AB Link Layer Discovery Protocol (LLDP)
IEEE 802.1X User Authentication (Radius)
IEEE802.1p Class of Service
IEEE802.1Q VLAN Tag
IEEE802.3at/af Power over Ethernet

Switch Architecture

Back-plane (Switching Fabric): 11.2Gbps
Packet throughput ability (Full-Duplex): 23.8Mpps @64bytes

Transfer Rate

14,880pps for Ethernet port
148,800pps for Fast Ethernet port
1,488,000pps for Gigabit Fiber Ethernet port

CPU

Marvell 800Mhz

RAM

256M Byte

Flash

128M Byte

Mac Address

16K MAC address table

Jumbo frame

9KB on all ports

Connectors

10/100TX: 16 x ports M12 4-pole D-coded with Auto MDI/MDI-X function
10/100/1000T: 4 x ports M12 8-pole A-coded with Auto MDI/MDI-X function
RS-232 connector: 1 x M12 5-pole A-coded
Power Input connector : 1 x M23 5-pole A-coded
Relay contact : 1 x M12 5-pole A-coded

Network Cable

10Base-T: 2-pair UTP/STP Cat. 3, 4, 5/ 5E/ 6 cable
EIA/TIA-568 100-ohm (100m)
100Base-TX: 2-pair UTP/STP Cat. 5/ 5E/ 6 cable
EIA/TIA-568 100-ohm (100m)
1000Base-TX: 2-pair UTP/STP Cat. 5/ 5E/ 6 cable
EIA/TIA-568 100-ohm (100m)

Bypass Protection**

High-speed optical switching (<4ms)
Minimal insertion loss (Max 1.6dB as Bypass Mode)

Protocol

CSMA/CD
