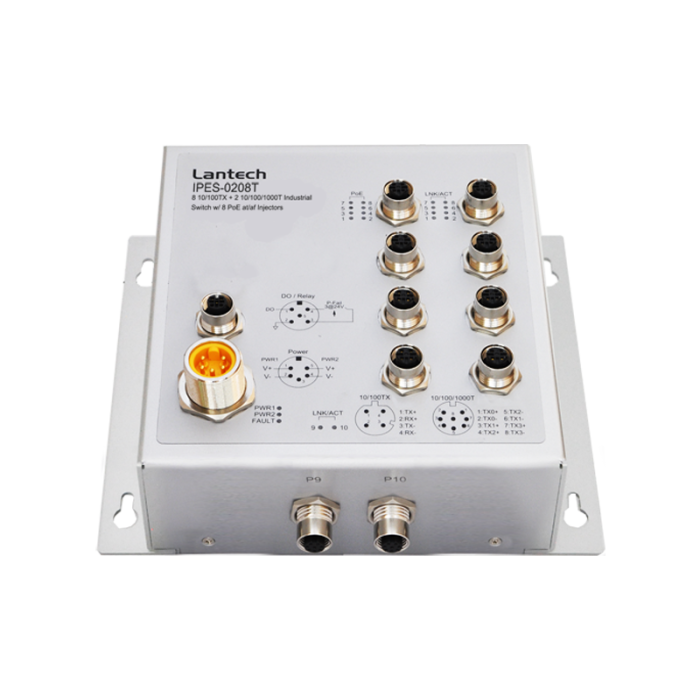

Brand: Lantech

Model Code: IPES-0208T

- EN50155/ E-Mark certificate
- Provides M12 connector with IP67 / 43 rated protection
- IEEE802.3at/af up to 30W PoE output

Enquire Now
Enquire about this product:

IEEE Standard

IEEE802.3 10BASE-T Ethernet
IEEE802.3u 100BASE-T Ethernet
IEEE802.3ab 1000Base-T Ethernet
IEEE802.3x Flow Control and Back Pressure
IEEE802.3at/af Power over Ethernet

Transfer Rate

14,880pps for Ethernet port
148,800pps for Fast Ethernet port
1,488,000pps for Gigabit Ethernet port

Mac Address

8K MAC address table


10/100T: 8 x M12, 4-pole D-coded, Female with auto MDI/MDI-X function
Power connector: 1 x M23, 5-pole A-coded, Male
Relay contact : 1 x M12 5-pole A-coded




Per unit: Power 1 (Green), Power 2 (Green),
Ethernet: Link/Activity (Green)

PoE pin assignment

M12 port # 1~#8 support IEEE 802.3at/af End-point, Alternative A mode. Per port provides 30W PoE at/ 15W PoE af.

Power Supply

9.5~56VDC on standard model
50.4~90VDC on 72V model
43~160VDC on 110V model with input isolation

Power Consumption

10W for 12/24/48VDC
13.5W for 72V/110V

Power Budget

240W for 45~56V input
(55V input is recommended for 802.3at 30W applications)
80W for 12V input
120W for 24V input
80W for 72V Input
80W for 110V Input

Operating Humidity

5% to 95% (Non-condensing)

Operating Temperature

-40°C ~ 75°C (-40°F ~ 167°F)
(72V/110V model: -40°C~60°C / -40°F~140°F)

Storage Temperature

-40°C ~ 85°C (-40°F ~ 185°F)

Case Dimension

Aluminum case. IP-67,
Aluminum case, IP-43


1.4kgs (IP67); 1.2kgs(IP43)


Din Rail**, Wall Mount Design


FCC Class A,
CE EN61000-4-2 (ESD),
CE EN61000-4-3 (RS),
CE EN-61000-4-4 (EFT),
CE EN61000-4-5 (Surge),
CE EN61000-4-6 (CS),
CE EN61000-4-8 (Magnetic Field),
CE EN61000-6-2,
CE EN61000-6-4

Stability Testing

IEC61373 (Shock), EN61373 (Shock and Vibration)

Certificates & report

EN50155/EN50121-3-2/EN50121-4 Certificate
EN45545-2 R24/R25 (EN ISO 4589-2, EN ISO 5659-2, NF X70-100-1 & 2) Fire & Smoke Certificate
E-Mark E4 Certificate


5 years
