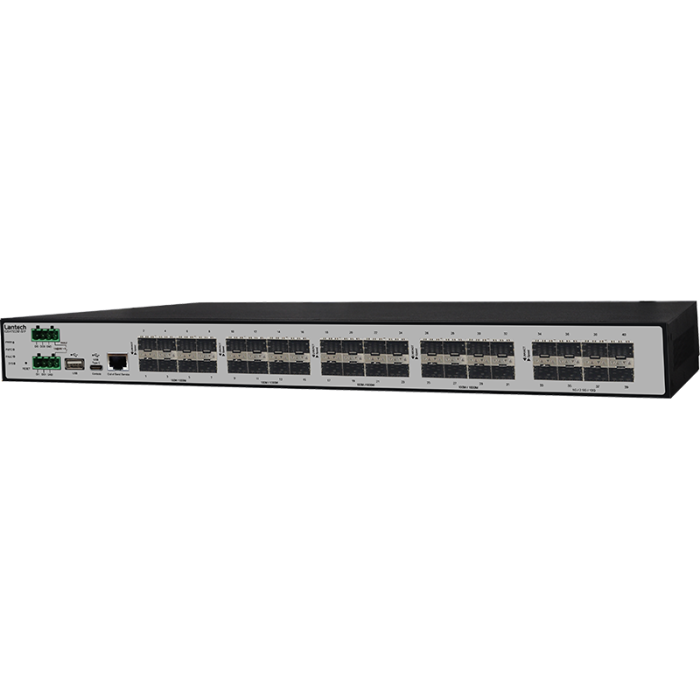

IGS-H7832XF-SFP 32GE SFP + 8 10GE SFP+ Managed Ethernet Switch

SKU: IGS-H7832XF-SFP-2xx-xx-x-OOB

32GE SFP + 8 10GE SFP+ Managed Ethernet Switch; dual DCI/AC input models w/optional L3L/L3 & Cybersecurity

Key Features:

  • 40 total fibre data ports
  • 32 × 100M/1G SFP ports
  • 8 × 1G/2.5G/5G/10G SFP+ uplink ports
  • Full SFP/SFP+ Mini-GBIC fibre interface
  • USB-C console port
  • USB Type-A for configuration upload/download
  • RJ45 out-of-band management port
  • DI/DO and relay via terminal blocks
  • Suitable for high-density fibre networking
Datasheet

Description

Product Overview

The Lantech IGS-H7832XF-SFP is a high-port-density OS5-managed Ethernet switch designed for industrial, transport, and backbone fibre network applications. It provides 32 x 100M/1G SFP ports and 8 x 1G/2.5G/5G/10G SFP+ ports, delivering a total of 40 fibre interface ports in a rackmount platform. With advanced Layer 2 and Layer 3 management, IPv4/IPv6 support, G.803 ring protection, cybersecurity options and dual isolated power input models, the IGS-H7832XF-SFP is suited to demanding aggregation, control room, infrastructure and industrial network deployments.

Key Features

High-Density Fibre Switching

  • 32 x 100M/1G Mini-GBIC SFP sockets

  • 8 x 1G/2.5G/5G/10G Mini-GBIC SFP+ sockets

  • Total of 40 fibre interface ports

  • Designed for fibre aggregation and backbone network applications

10G Uplink Capability

  • Supports up to 10G speeds on SFP+ ports

  • Multi-speed uplink support, including 1G, 2.5G, 5G and 10G

  • Suitable for high-bandwidth industrial networks

  • Ideal for connecting multiple fibre access switches into a central core

OS5 Managed Switch Platform

  • Advanced Layer 2 and Layer 3 management support

  • IPv4 and IPv6 networking support

  • NAT support on applicable models and configurations

  • Designed for scalable industrial Ethernet deployments

Network Redundancy and Reliability

  • Supports standardised ITU G.803 ring protection

  • Designed for resilient network architectures

  • Helps reduce downtime in critical infrastructure applications

  • Suitable for transport, automation and industrial backbone networks

Cybersecurity and Advanced Protocols

  • IEC 62443-4-2 cybersecurity model options

  • MACsec support on applicable configurations

  • SNMPv3 support for secure management

  • PTP v2, ETBN TTDP and TRDP protocol support on applicable models

Industrial Rackmount Design

  • IP30 rackmount enclosure

  • Dual isolated DC input models available

  • Dual isolated AC power input models are available

  • Standard and wide temperature model options

Management and Service Interfaces

  • USB Type-C console interface

  • USB Type-A slot for configuration upload and download

  • Out-of-band RJ45 management connector

  • DI/DO and relay connections via terminal blocks

Applications and Use Cases

The IGS-H7832XF-SFP is suitable for:

  • Industrial fibre backbone networks

  • Transport and railway network aggregation

  • Control room and infrastructure switching

  • Security and surveillance fibre networks

  • Factory automation and plant-wide networking

  • High-density SFP and SFP+ switching applications

Dimensions/Drawings





Download

Datasheet

More Information

Brand Lantech
Specifications


Standards

IEEE 802.3u 100BASE-FX
IEEE 802.3z 1000BASE-SX / 1000BASE-LX
IEEE 802.3ae 10GBASE-SR (850nm multi-mode) /10GBASE-LR (1310nm single-mode) / 10GBASE-ER (1550nm single-mode)
IEEE802.3x Flow Control and Back Pressure
IEEE802.3ax Port trunk with LACP
IEEE802.1d Spanning Tree
IEEE802.1w Rapid Spanning Tree
IEEE802.1s Multiple Spanning Tree
IEEE802.3ad Link Aggregation Control Protocol (LACP)
IEEE802.1AB Link Layer Discovery Protocol (LLDP)
IEEE802.1X User Authentication (Radius)
IEEE802.1p Class of Service
IEEE802.1Q VLAN Tag

Switch Architecture

Back-plane (Switching Fabric): 224Gbps

Mac Address

16K MAC address table

Jumbo frame

10KB

Connectors

32 100/1G Mini-GBIC: SFP sockets
8 1G/2.5G/5G/10G Mini-GBIC: SFP+ sockets
Console: USB2.0 type C
USB2.0 type A slot for upload/download config file
Out-Of-Band connector: RJ45 *1
DI/DO and Relay: 2x 4 pin terminal blocks

Optical Cable

1Gbps:
Multi-mode: 0 to 550 m, 850 nm (50/125 μm); 0 to 2 km, 1310 nm (50/125 μm)
Single mode: 0 to 10 km/ 30 km/ 40 km, 1310 nm (9/125 μm); 0 to 50 km/ 60 km/ 80km/ 120 km, 1550 nm (9/125 μm)
2.5Gbps
Multi-mode: 0 to 300 m, 850 nm (50/125 μm);
Single mode: 0 to 2 km/ 15 km/ 40 km, 1310 nm (9/125 μm); 0 to 40 km/ 80 km/ 100km, 1550 nm (9/125 μm)
WDM 1Gbps:
Single mode: 0 to 10 km/ 20 km/ 40 km/ 60 km, 1310 nm (9/125 μm); 0 to 80 km, 1490 nm (9/125 μm); 0 to 10 km/ 20 km/ 40 km/ 60 km/ 80 km, 1550 nm (9/125 μm)
WDM 2.5Gbps
Single mode: 0 to 5 km/ 20 km/ 40 km/ 60 km, 1310 /1550nm (9/125 μm); 0 to 80 km, 1490/1550 nm (9/125 μm)
10Gbps
Multi-mode: 0 to 300 m, 850 nm (OM3 50/125 μm);
Single mode: 0 to 10 km/ 20 km, 1310 nm (9/125 μm); 0 to 40 km/ 80km/ 100 km, 1550 nm (9/125 μm)
WDM 10Gbps
Single mode: 0 to 10 km/ 20 km/ 40 km/ 60 km, 1270/1330 nm (9/125 μm); 0 to 80km, 1490/1550 nm (9/125 μm)

LED

Per unit: Power 1 (Green), Power 2 (Green), FAULT (Red)
R.M. indicator (Green)
100M/1G Mini-GBIC: Link/Active (Green); Speed (Orange)
2.5G/5G/10G Mini-GBIC: Link/Activity (Green); Speed (Orange)

Operating Humidity

5% ~ 95% (Non-condensing)

Operating Temperature

-20°C~60°C / -4°F~140°F (standard model)
-40°C~75°C / -40°F~167°F (-E model)

Storage Temperature

-40°C~85°C / -40°F~185°F

Power Supply

2DCI model: Galvanic isolated 16.8~137.5VDC
2AC model: 2x 90-264VAC IEC320 power input socket

Power Consumption

Max. 70W

Dimensions

Metal case. IP-30
440mm(W)x44mm(H)x325mm(D)

Weight

2.9kgs

Installation

Rackmount Design

EMI & EMS

FCC Part 15 Class A
EN61000-6-2
EN61000-6-4
CE EN55032 Class A
CE EN55035
CE EN61000-4-2 (ESD) Level 3
CE EN61000-4-3 (RS) Level 3
CE EN61000-4-4 (EFT) Level 3
CE EN61000-4-5 ED3 (Surge) Level 3
CE EN61000-4-6 (CS) Level 3
CE EN61000-4-8 (Magnetic field) Level 3

Verifications

EN50121-1/EN50121-4; EN50125-3,
EN50124-1/IEC60664-1, EN61140-1

MTBF

240,114 hrs (standards: IEC 62380)

Ordering Information

P/N Model name Description
8361-039 IGS-H7832XF-SFP-2DCI-OOB 32 100M/1G SFP + 8 1G/2.5G/5G/10G SFP+ OS5 Managed Ethernet Switch; Built-in x2 galvanic isolated DC 16.8~137.5VDC power supply; IP30 rackmount design; -20°C to 60°C；w/Out-of-band
8361-0391 IGS-H7832XF-SFP-2DCI-E-OOB 32 100M/1G SFP + 8 1G/2.5G/5G/10G SFP+ OS5 Managed Ethernet Switch; Built-in x2 galvanic isolated DC 16.8~137.5VDC power supply; IP30 rackmount design; -40°C to 75°C；w/Out-of-band
8361-0392 IGS-H7832XF-SFP-2AC-EU-OOB 32 100M/1G SFP + 8 1G/2.5G/5G/10G SFP+ OS5 Managed Ethernet Switch; Built-in 2x isolated 90-264VAC IEC320 power conversion; IP30 rackmount design; -20°C to 60°C; EU power cords；w/Out-of-band
8361-0393 IGS-H7832XF-SFP-2AC-EU-E-OOB 32 100M/1G SFP + 8 1G/2.5G/5G/10G SFP+ OS5 Managed Ethernet Switch; Built-in 2x isolated 90-264VAC IEC320 power conversion; IP30 rackmount design; -40°C to 75°C; EU power cords；w/Out-of-band
8361-0394 IGS-H7832XF-SFP-2AC-UK-OOB 32 100M/1G SFP + 8 1G/2.5G/5G/10G SFP+ OS5 Managed Ethernet Switch; Built-in 2x isolated 90-264VAC IEC320 power conversion; IP30 rackmount design; -20°C to 60°C; UK power cords；w/Out-of-band
8361-0395 IGS-H7832XF-SFP-2AC-UK-E-OOB 32 100M/1G SFP + 8 1G/2.5G/5G/10G SFP+ OS5 Managed Ethernet Switch; Built-in 2x isolated 90-264VAC IEC320 power conversion; IP30 rackmount design; -40°C to 75°C; UK power cords；w/Out-of-band
8361-0396 IGS-H7832XF-SFP-2AC-US-OOB 32 100M/1G SFP + 8 1G/2.5G/5G/10G SFP+ OS5 Managed Ethernet Switch; Built-in 2x isolated 90-264VAC IEC320 power conversion; IP30 rackmount design; -20°C to 60°C; US power cords；w/Out-of-band
8361-0397 IGS-H7832XF-SFP-2AC-US-E-OOB 32 100M/1G SFP + 8 1G/2.5G/5G/10G SFP+ OS5 Managed Ethernet Switch; Built-in 2x isolated 90-264VAC IEC320 power conversion; IP30 rackmount design; -40°C to 75°C; US power cords；w/Out-of-band

OPTIONAL ACCESSORIES - Power cords (2AC models)

Description Part Number
EUROPE AC POWER CORDS P/N: 4106-00000014-001
USA AC POWER CORDS P/N: 4106-00000012-001
UK AC POWER CORDS P/N: 4106-00000015-001

OPTIONAL ACCESSORIES - Mini GBIC (SFP)

Model name Description Model name Description
8330-162D-V1 MINI GBIC 1000SX (LC/0.5km) Transceiver 8330-184D-V1 LTSFP-1000BX-80KM Transceiver (WDM 1490)
8330-163D-V1 MINI GBIC 1000SX2 (LC/2km) Transceiver 8330-185D-V1 LTSFP-1000BX-80KM Transceiver (WDM 1550)
8330-165D-V1 MINI GBIC 1000LX (LC/10km) Transceiver 8330-262D-V1 MINI GBIC 2.5G 850nm VCSEL (LC/0.3km) Transceiver
8340-0591D-V1 MINI GBIC 1000LHX (LC/40km) Transceiver 8330-263D-V1 MINI GBIC 2.5G 1310nm FP (LC/2km) Transceiver
8330-166D-V1 MINI GBIC 1000XD (LC/50km) Transceiver 8330-265D-V1 MINI GBIC 2.5G 1310nm DFB (LC/15km) Transceiver
8330-169D-V1 MINI GBIC 1000XD (LC/60km) Transceiver 8330-193D-V1 10G Base SFP+ SR, Multi-mode (LC/300m) Transceiver
8330-167D-V1 MINI GBIC 1000ZX (LC/80km) Transceiver 8330-194D-V1 10G Base SFP+ LR, Single-mode (LC/10km) Transceiver
8330-170D-V1 MINI GBIC 1000EZX (120km) Transceiver 8330-223D-V1 10G Base SFP+ LR, Single-mode (LC/1310nm/20km) DDM Transceiver
8330-168-V1 MINI GBIC 1000T (100m) Transceiver 8330-225D-V1 10G Base SFP+ LR , Single-mode (LC/1310nm /40km) DDM Transceiver
8330-188D-V1 LTSFP-1000BX-10KM Transceiver (WDM 1310) 8330-205D-V1 10G Base SFP+ LR , Single-mode (LC/1550nm/40km) DDM Transceiver
8330-189D-V1 LTSFP-1000BX-10KM Transceiver (WDM 1550) 8330-209D-V1 10G Base SFP+ , Single-mode(10km) Transceiver (WDM 1270)
8330-186D-V1 LTSFP-1000BX-20KM Transceiver (WDM 1310) 8330-210D-V1 10G Base SFP+ , Single-mode(10km) Transceiver (WDM 1330)
8330-187D-V1 LTSFP-1000BX-20KM Transceiver (WDM 1550) 8330-200D-V1 10G Base SFP+ , Single-mode(20km) Transceiver (WDM 1270)
8330-180D-V1 LTSFP-1000BX-40KM Transceiver (WDM 1310) 8330-201D-V1 10G Base SFP+ , Single-mode(20km) Transceiver (WDM 1330)
8330-182D-V1 LTSFP-1000BX-40KM Transceiver (WDM 1550) 8330-202D-V1 10G Base SFP+ , Single-mode(40km) Transceiver (WDM 1270)
8330-181D-V1 LTSFP-1000BX-60KM Transceiver (WDM 1310) 8330-203D-V1 10G Base SFP+ , Single-mode(40km) Transceiver (WDM 1330)
8330-183D-V1 LTSFP-1000BX-60KM Transceiver (WDM 1550) 8330-206-V1 10G/5G/2.5G/1000Base-T SFP, 3.3V,30m (10G) 50m (2.5G/5G) 100m (1G); -10~70°C
    All SFP ended with D are with Diagnostic function
